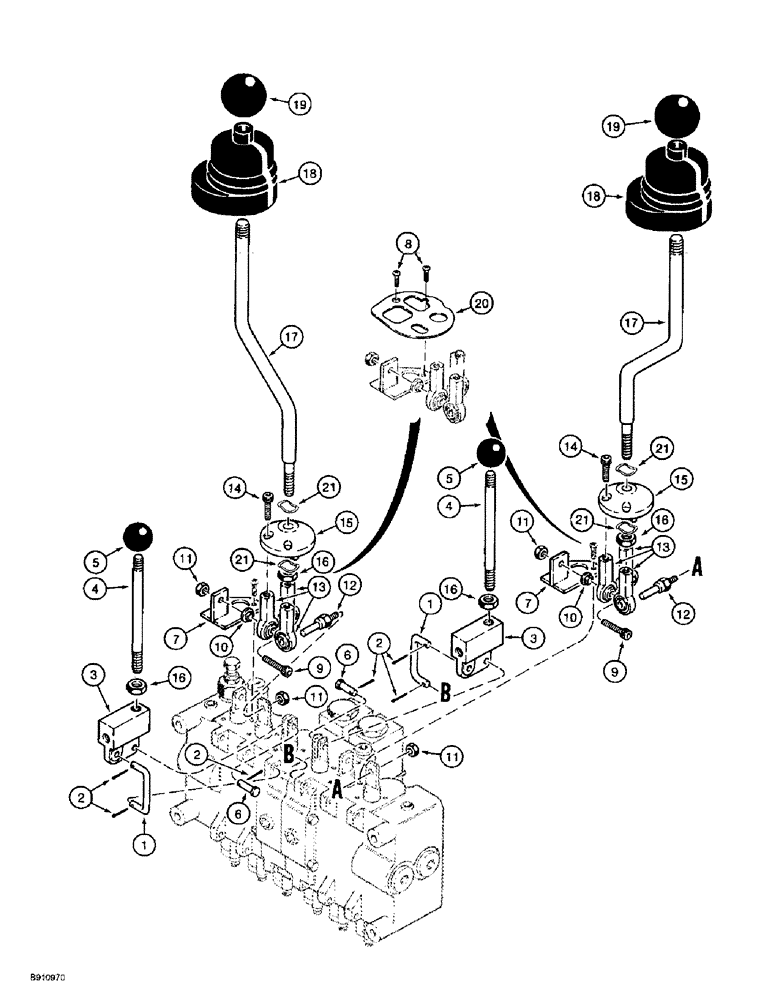

Запчасти Case 560 (8-082) - BACKHOE CONTROL VALVE, CONTROL LEVERS, D125 BACKHOE (08) - HYDRAULICS
5
17
13
10
7
16
11
8
21
16
4
2
19
17
10
15
20
21
1
15
16
3
2
9
6
9
16
11
5
19
7
2
14
12
18
11
11
21
18
13
14
1
3
4
21
6
12
FIT
1:1
100%
№
Артикул
Название
Примечание
Количество
H674500
VALVE
ASSEMBLY - control, backhoe, parts list Figures 8-82 - 8-88, see Figure 9-36 for mounting, Includes: Ref. 1 - 21
1шт.
8
62-31010
SCREW,Hex Soc Hd, #10-32 x 5/8"
BOLT - hex socket, No. 10 NF x 5/8 inch
4шт.
14
62-32512
HEX SOC SCREW,1/4"-28 x 3/4"
BOLT - hex socket, 1/4 NF x 3/4 inch
6шт.
