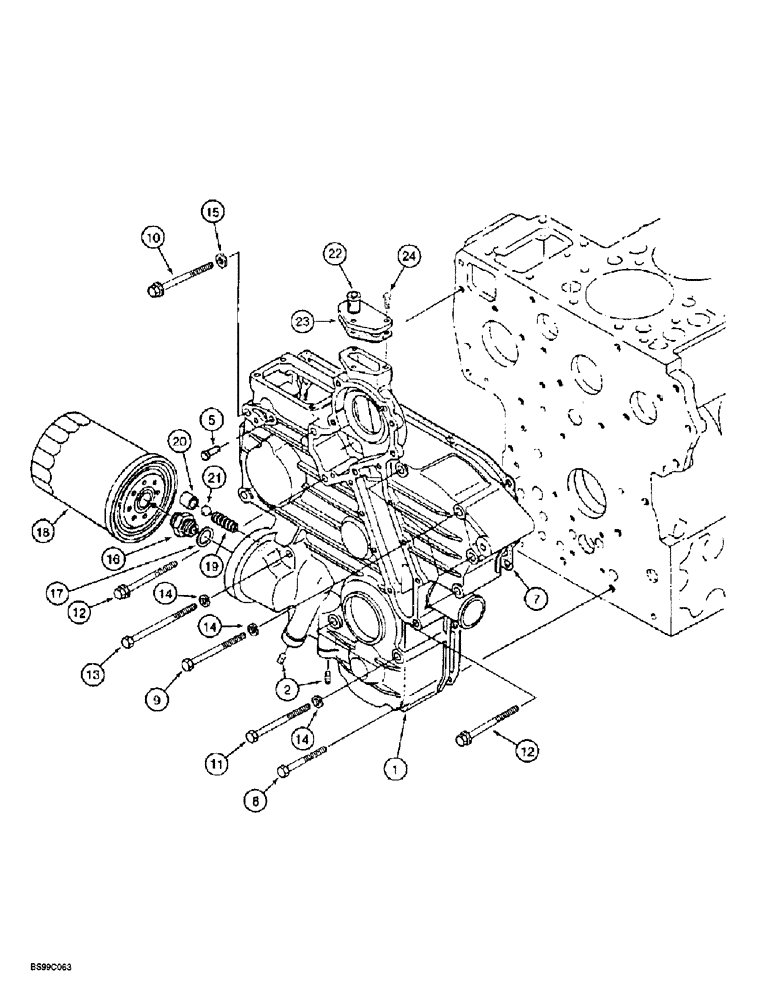

Запчасти Case 560 (2-04) - FRONT GEAR COVER, KUBOTA V2203 ENGINE, PRIOR TO P.I.N. JAF0295741 (02) - ENGINE

231488A1

BOX

COVER ASSEMBLY - gear, frontIncludes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - gear, front

1шт.

2

1959188C2

PLUG

- gear cover

2шт.

3

200420A1

O-RING

- cover, not shown

2шт.

4

202325A1

O-RING

- cover, not shown

1шт.

5

1959190C1

PIN

- clevis, start spring

1шт.

6

202326A1

GASKET

O-RING - cover, not shown

2шт.

7

125825A1

GASKET

- gear cover

1шт.

8

126374A1

CAPTIVE WASHER SCREW

- with lockwasher

2шт.

9

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

- hex, 8 - 1.25 x 70 mm

5шт.

10

221617A1

BOLT

- with lockwasher

1шт.

11

814-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

- hex, 8 - 1.25 x 80 mm

2шт.

12

126376A1

CAPTIVE WASHER SCREW

- with lockwasher

3шт.

13

814-8095

BOLT,Hex, M8 x 1.25 x 95mm, Cl 8.8

BOLT - hex, 8 - 1.25 x 95 mm

2шт.

14

1959162C1

LOCK WASHER

- lock, special

9шт.

15

126373A1

SPRING WASHER

WASHER - flat

1шт.

16

126377A1

PIPE

ADAPTER - filter

1шт.

17

126124A1

WASHER

- flat, special

1шт.

18

126385A1

FILTER, ELEMENT

FILTER - oil, cartridge, see note

1шт.

The engine oil filter is removed from location shown on Figure 2-4 and relocated to remote location shown on Figure 2-40. See Figure 2-40 for remote oil filter mounting.

1шт.

19

126378A1

SPRING

- compression

1шт.

20

126379A1

SEAT, VALVE

SEAT - valve

1шт.

21

126380A1

BALL

- spring

1шт.

22

126381A1

FLANGE

- water return

1шт.

23

126382A1

GASKET

- flange

1шт.

24

1959215C1

BOLT

- hex, with lock washer

3шт.
