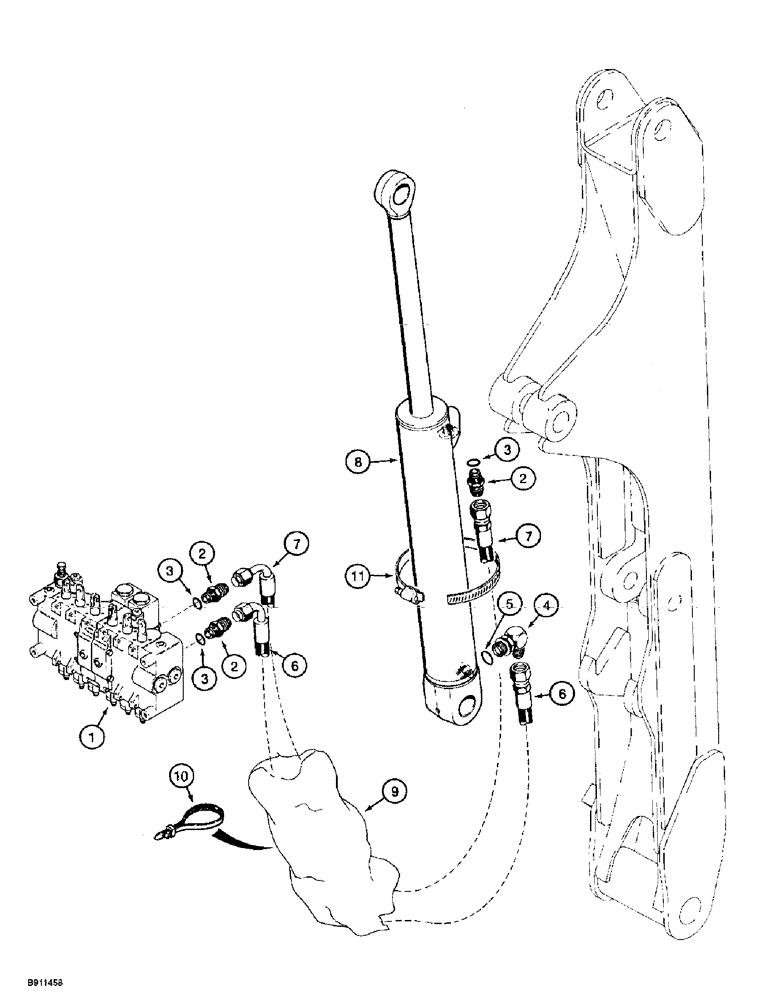

Запчасти Case 560 (8-078) - BACKHOE DIPPER CYLINDER HYDRAULIC CIRCUIT, D125 BACKHOE, PRIOR TO BACKHOE SERIAL NUMBER JAF0218189 (08) - HYDRAULICS

1

H674500

VALVE

ASSEMBLY - control, backhoe, parts list Figures 8-82 - 8-88, see Figure 9-36 for mounting

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 3

3шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

H439269

ELBOW

- 90 degree, special, Includes: Ref. 5

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

6

H438194

HOSE

- 2150 mm (84-5/8 inch) long, to closed end of dipper cylinder

1шт.

7

H438193

HOSE

- 2750 mm (108-1/4 inch) long, to rod end of dipper cylinder

1шт.

8

1346411C2

CYLINDER ASSY.

CYLINDER ASSEMBLY - 76 (3) ID x 498 mm (19-5/8 inch) stroke, dipper, parts list Figure 8-96

1шт.

9

H439063

SLEEVE

- hose protector

1шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

11

214-1460

HOSE CLAMP,#60, 3.31" - 4.25", Type F Worm

CLAMP, HOSE, , Adj. #60, 3.31/4.25 Type F Worm

1шт.
