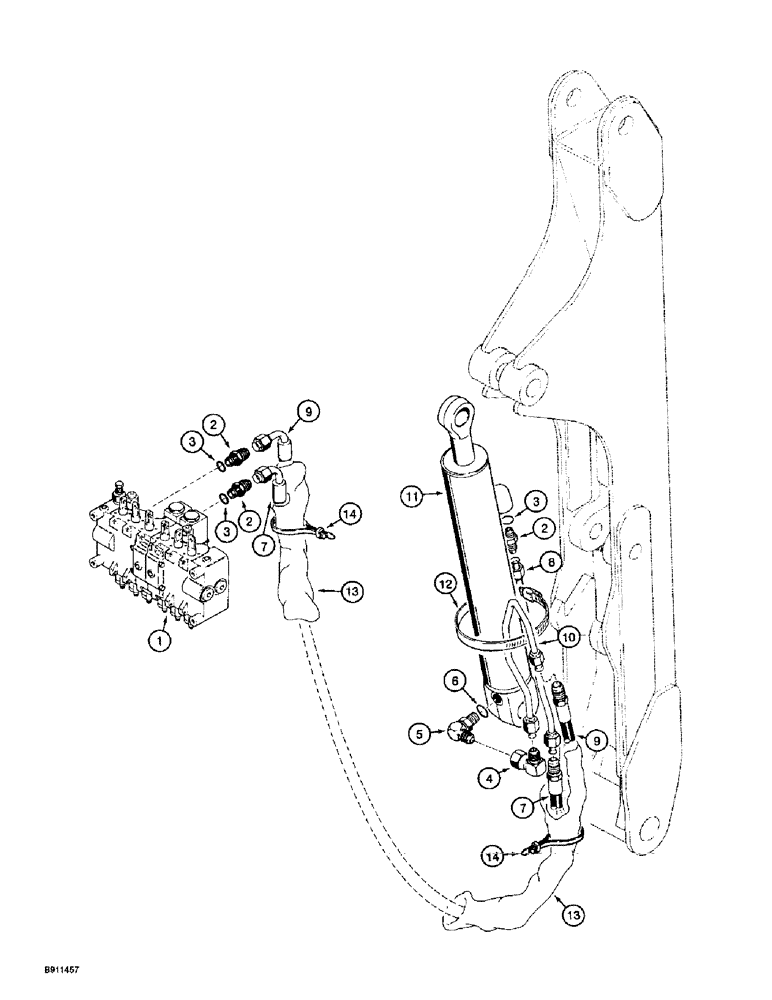

Запчасти Case 560 (8-076) - BACKHOE BOOM CYLINDER HYDRAULIC CIRCUIT, D125 BACKHOE, PRIOR TO BACKHOE SERIAL NUMBER JAF0218189 (08) - HYDRAULICS

1

H674500

VALVE

ASSEMBLY - control, backhoe, parts list Figure 8-82 - 8-88, see Figure 9-36 for mounting

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 3

3шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel

1шт.

5

H439269

ELBOW

- 90 degree, special, Includes: Ref. 6

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

7

H438195

HOSE

- 1675 mm (65-15/16 inch) long, to tube at rod end of boom cylinder

1шт.

8

H674565

TUBE,0.5" OD

- to rod end of boom cylinder

1шт.

9

H438684

HOSE

- 1725 mm (67-15/16 inch) long, to tube at closed end of boom cylinder

1шт.

10

H674566

TUBE,0.5" OD

- to closed end of boom cylinder

1шт.

11

1346450C2

CYLINDER ASSY.

CYLINDER ASSEMBLY - 76 (3) ID x 551 mm (21-11/16 inch) stroke, boom, parts list Figure 8-94

1шт.

12

214-1460

HOSE CLAMP,#60, 3.31" - 4.25", Type F Worm

CLAMP, HOSE, , Adj. #60, 3.31/4.25 Type F Worm

1шт.

13

H439063

SLEEVE

- hose protector

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.
