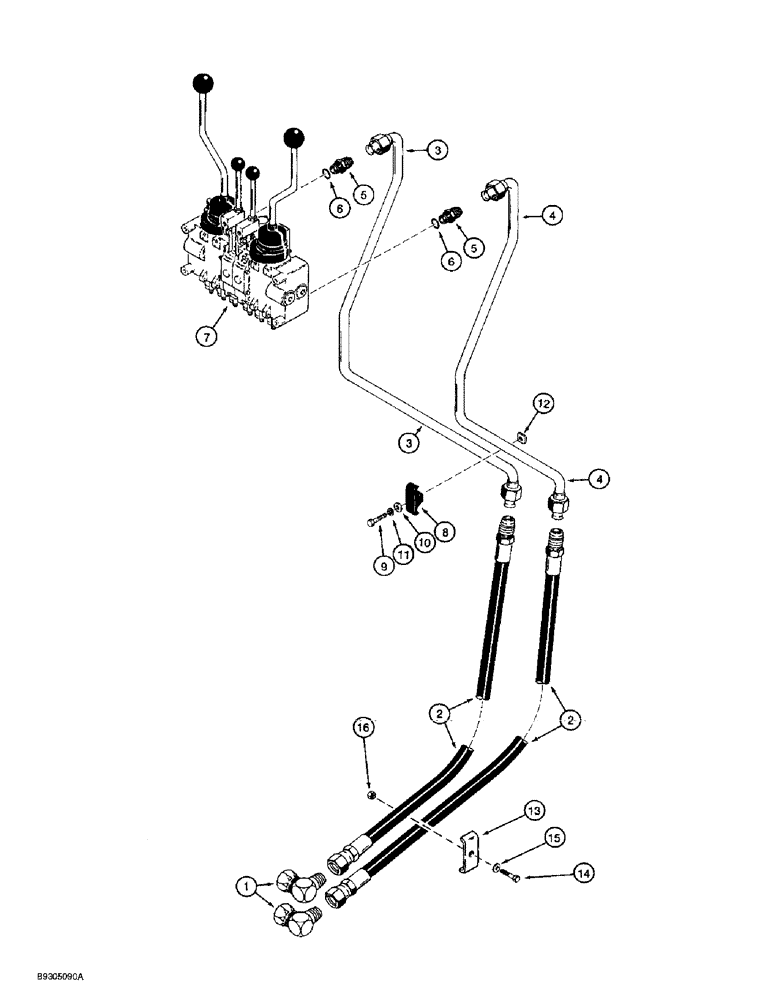

Запчасти Case 560 (8-070) - BACKHOE CONTROL VALVE SUPPLY AND RETURN LINES, D125 BACKHOE (08) - HYDRAULICS

1

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degree, 1-1/16-12 inch flare x swivel

2шт.

2

H439339

HOSE

- 1028 mm (40-1/2 inch) long, backhoe control valve supply and return

2шт.

3

H674807

TUBE,0.75" OD

- backhoe control valve supply

1шт.

4

H675124

TUBE,19.1 mm OD

- backhoe control valve return

1шт.

5

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, 1-1/16-12 flare x 7/8-14 inch O-ring boss, Includes: Ref. 6

2шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

7

H674500

VALVE

ASSEMBLY - control, backhoe, parts list Figures 8-82 - 8-88, see Figure 9-36 for mounting

1шт.

8

D120613

CLAMP,20mm ID

- tube, spacer type

1шт.

9

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.

10

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

1шт.

11

492-11038

LOCK WASHER,3/8"

1шт.

12

84899

SQUARE NUT,Sq, 3/8"-16, G2

- square, 3/8 inch NC

1шт.

13

H46888

CLAMP

- hose

1шт.

14

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

1шт.

15

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

1шт.

16

232-4116

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

1шт.
