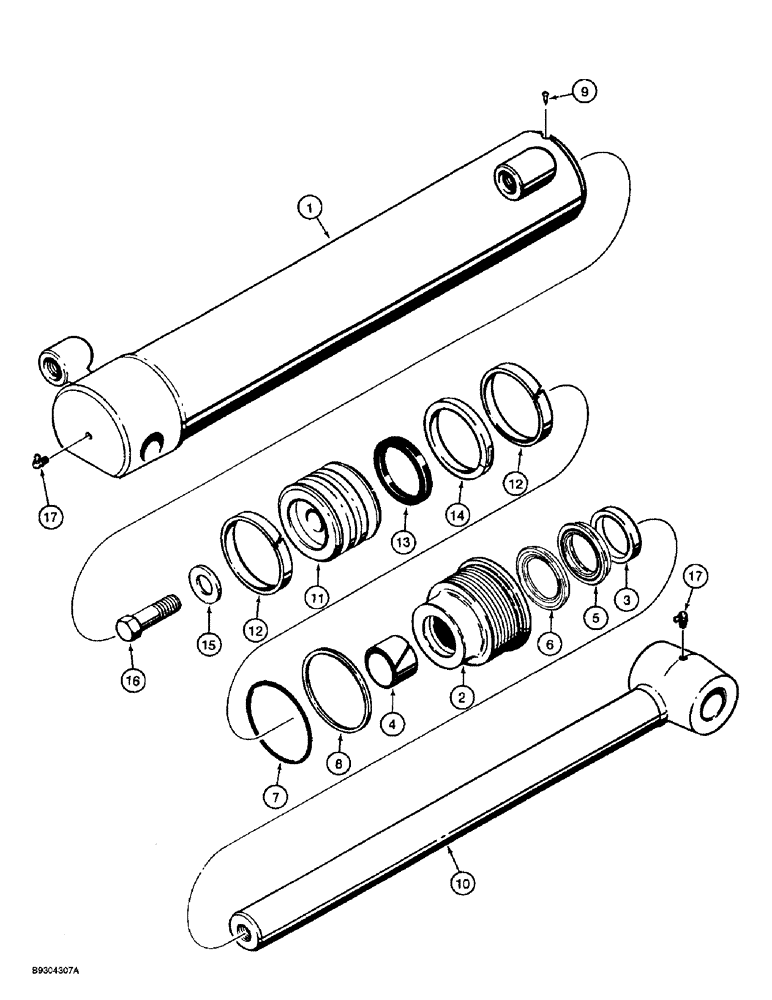

Запчасти Case 560 (8-068) - BOOM, DIPPER, AND BUCKET CYLINDER ASSEMBLIES, D100 BACKHOE (08) - HYDRAULICS

G100936

CYLINDER,Double Acting, 38.1mm Rod, 371.35mm Stroke

ASSEMBLY - 76 (3) ID x 372 mm (14-5/8 inch) stroke, boom, dipper and bucket, Includes: Ref. 1 - 17

3шт.

1

G100937

TUBE,76.2 mm DIA x 550.9 mm L

- cylinder

1шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY - cylinder, has identification groove on outer lip, Includes: Ref. 2 - 8

1шт.

2

1542962C1

GLAND

- cylinder

1шт.

3

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod

1шт.

Part of Gasket Kit, P/N 1543252C1

1шт.

4

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

- Center, Gland

1шт.

Part of Gasket Kit, P/N 1543252C1

1шт.

1542874C1

SEAL KIT,38.1mm Rod

KIT, SEALS, NSS, Order 1543252C1 kit, See below

1шт.

Part of Gasket Kit, P/N 1543252C1

1шт.

5

1542997C1

SEALING RING

- rod, NSS, order 1543252C1 kit, see below

1шт.

Part of Gasket Kit, P/N 1543252C1

1шт.

6

1542996C1

SEAL

- buffer, NSS, order 1543252C1 kit, see below

1шт.

Part of Gasket Kit, P/N 1543252C1

1шт.

7

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

Gland -234, 70 Duro, 2.984" ID x .139" Thk

1шт.

Part of Gasket Kit, P/N 1543252C1

1шт.

8

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup, gland O-ring

1шт.

Part of Gasket Kit, P/N 1543252C1

1шт.

9

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

10

G101357

ROD

- piston, 38 mm (1-1/2 inch) diameter

1шт.

11

G100442

PISTON

- cylinder

1шт.

12

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear, piston

2шт.

Part of Gasket Kit, P/N 1543252C1

1шт.

13

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING - backup, piston seal

1шт.

Part of Gasket Kit, P/N 1543252C1

1шт.

14

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

Part of Gasket Kit, P/N 1543252C1

1шт.

15

S94643

WASHER,19.43mm ID x 38.1mm OD x 6.35mm Thk

- flat, special, hardened

1шт.

16

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

- hex, 3/4 NF x 2-1/2 inch, grade 8

1шт.

17

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

1543252C1

SEAL KIT

KIT - seal, Includes: Ref. 3 - 8, 12, 13, 14, a buffer seal not used in this application, and an instruction sheet

1шт.
