(8-056) - BACKHOE CONTROL VALVE ASSEMBLY - H674300, CONTROL LEVERS, D100 BACKHOE

Запчасти Case 560 (8-056) - BACKHOE CONTROL VALVE ASSEMBLY - H674300, CONTROL LEVERS, D100 BACKHOE (08) - HYDRAULICS

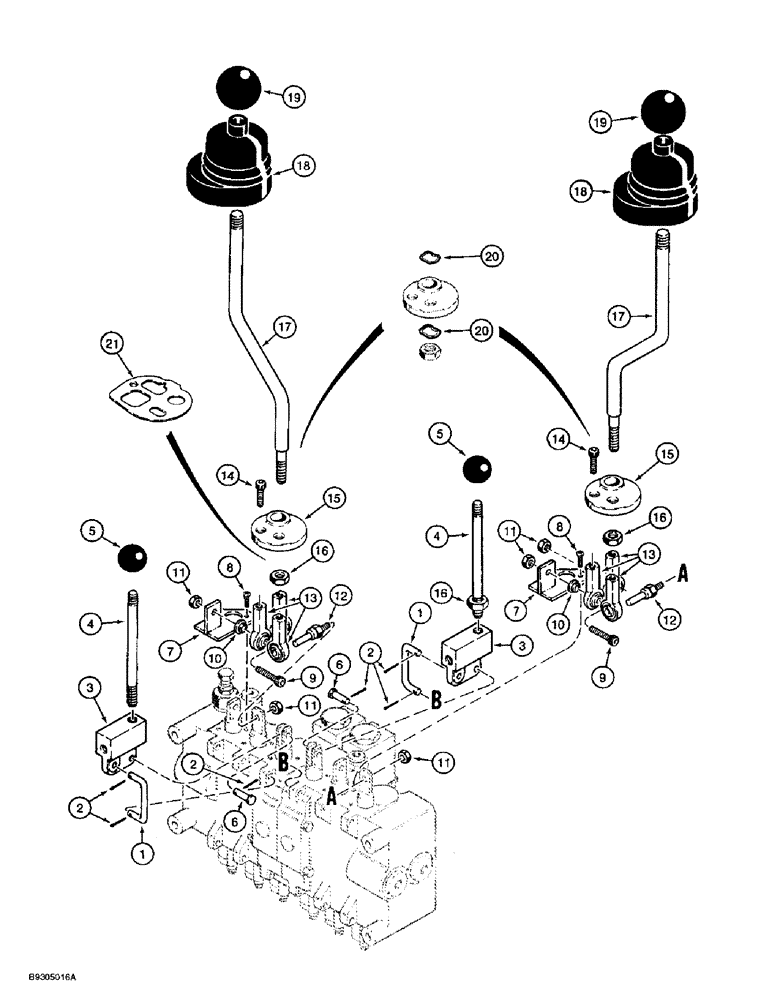

Схема запчастей Case 560 - (8-056) - BACKHOE CONTROL VALVE ASSEMBLY - H674300, CONTROL LEVERS, D100 BACKHOE (08) - HYDRAULICS
9
7
1
7
19
5
11
4
6
1
11
8
4
2
16
11
3
17
10
13
2
19
10
8
13
20
16
15
16
12
18
5
15
14
18
2
21
14
17
12
11
6
9
20
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

H674300

VALVE

ASSEMBLY - control, backhoe, parts list Figures 8-56 - 8-62, Includes: Ref. 1 - 21

1шт.

1

H438042

ARM

LINK - C-type

2шт.

2

432-412

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

6шт.

3

H438043

BLOCK ASSY.

BLOCK - pivot

2шт.

4

100406A1

LEVER

- 5-1/4 inch long, stabilizer section

2шт.

5

H152207

BALL KNOB

KNOB - lever

2шт.

6

427-4077

CLEVIS PIN,1/4" x .770"

PIN, CLEVIS, , Hardened 1/4" x .770"

2шт.

7

H438950

LARGE PLATE

BRACKET - dual control lever

2шт.

8

62-31010

SCREW,Hex Soc Hd, #10-32 x 5/8"

BOLT - hex socket, No. 10 NF x 5/8 inch

4шт.

9

62-32516

HEX SOC SCREW,1/4"-28 x 1"

BOLT - hex socket, 1/4 NF x 1 inch

4шт.

10

H438035

SPACER

- bracket

4шт.

11

H438943

JAM NUT

- hex, special

6шт.

12

H438038

STUD

- special, actuator

2шт.

13

H438025

ROD

END - rod, dual control lever plate

6шт.

14

62-32512

HEX SOC SCREW,1/4"-28 x 3/4"

BOLT - hex socket, 1/4 NF x 3/4 inch

6шт.

15

H438944

ADAPTER

PLATE - dual control lever

2шт.

16

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam, 3/8 inch NC

4шт.

17

H438022

LEVER

- dual control

2шт.

18

H438946

PROTECTOR

BOOT - dual control lever

2шт.

19

A23885

KNOB

- ball, dual control lever

2шт.

20

H438956

WASHER

- spring, special

4шт.

21

H438951

LARGE PLATE

PLATE - boot retaining

2шт.
