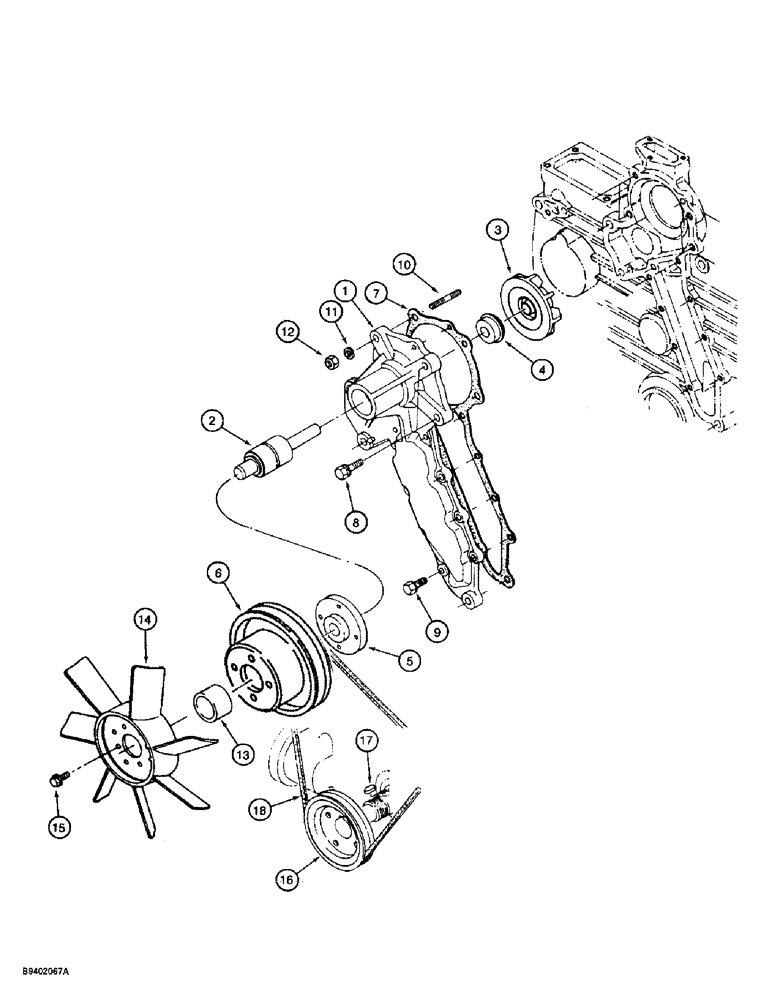

Запчасти Case 560 (2-02) - WATER PUMP AND FAN, KUBOTA V2203 ENGINE, PRIOR TO P.I.N. JAF0295741 (02) - ENGINE

332451A1

WATER PUMP

PUMP ASSEMBLY - water, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP - water

1шт.

2

NSS

NOT SOLD SEPARAT

BEARING - ball, water pump

1шт.

3

NSS

NOT SOLD SEPARAT

IMPELLER - water pump

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - mechanical

1шт.

5

NSS

NOT SOLD SEPARAT

FLANGE - water pump

1шт.

6

127152A1

FAN

PULLEY - fan

1шт.

7

127153A1

GASKET

- mounting, water pump

1шт.

8

1959382C1

BOLT

- hex, with lock washer, water pump mounting

2шт.

9

1959155C1

BOLT

BOLT - hex, captive washer, special, water pump mounting

8шт.

10

127154A1

STUD

- water pump

2шт.

11

1959162C1

LOCK WASHER

- lock

2шт.

12

43362

NUT,M8 x 1.25, Cl 10

M8, Cl 10

2шт.

13

127115A1

SPACER

- fan

1шт.

14

107402A2

FAN

- engine cooling, 15 inch, not part of engine assembly

1шт.

15

221636A1

BOLT

- flange

4шт.

16

127111A1

FAN

PULLEY - fan drive

1шт.

17

126492A1

KEY

- feather

1шт.

18

127113A1

V-BELT

Fan

1шт.
