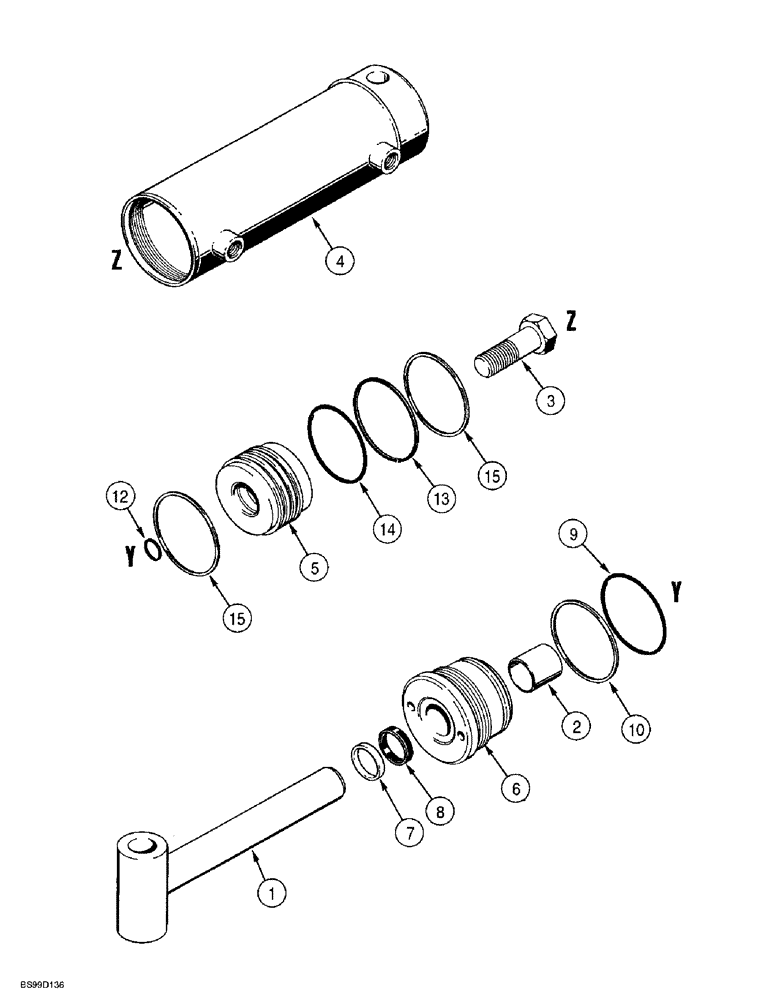

Запчасти Case 560 (8-040) - BACKFILL BLADE ANGLE CYLINDER ASSEMBLY - 103989A1 (08) - HYDRAULICS

103989A1

CYLINDER

ASSEMBLY - 63.5 (2-1/2) ID x 203 mm (8 inch) stroke, backfill blade angle, see Figure 9-18 for mounting, Includes: Ref. 1 - 15

2шт.

1

117269A1

SHAFT

ROD - piston, 1-1/4 inch diameter

1шт.

2

117271A1

BUSHING

- gland

1шт.

3

328-1440

BOLT,Hex, 7/8" - 14 x 2-1/2", Gr 8

- hex, 3/8 NF x 2-1/2 inch, grade 8

1шт.

4

117268A1

CASE

TUBE - cylinder

1шт.

5

117267A1

PISTON

- cylinder

1шт.

6

117270A1

HEAD

GLAND - cylinder

1шт.

7

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of Seal Kit, P/N 117272A1

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - U-cup

1шт.

Part of Seal Kit, P/N 117272A1

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

Part of Seal Kit, P/N 117272A1

1шт.

10

NSS

NOT SOLD SEPARAT

RING - backup, gland

1шт.

Part of Seal Kit, P/N 117272A1

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

Part of Seal Kit, P/N 117272A1

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of Seal Kit, P/N 117272A1

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

Part of Seal Kit, P/N 117272A1

1шт.

15

NSS

NOT SOLD SEPARAT

RING - wear, piston

2шт.

Part of Seal Kit, P/N 117272A1

1шт.

117272A1

SEAL KIT

KIT - seal, Includes: Ref. 7 - 15

1шт.
