(8-032) - REEL CARRIER LIFT CYLINDER ASSEMBLY - 101645A1

Запчасти Case 560 (8-032) - REEL CARRIER LIFT CYLINDER ASSEMBLY - 101645A1 (08) - HYDRAULICS

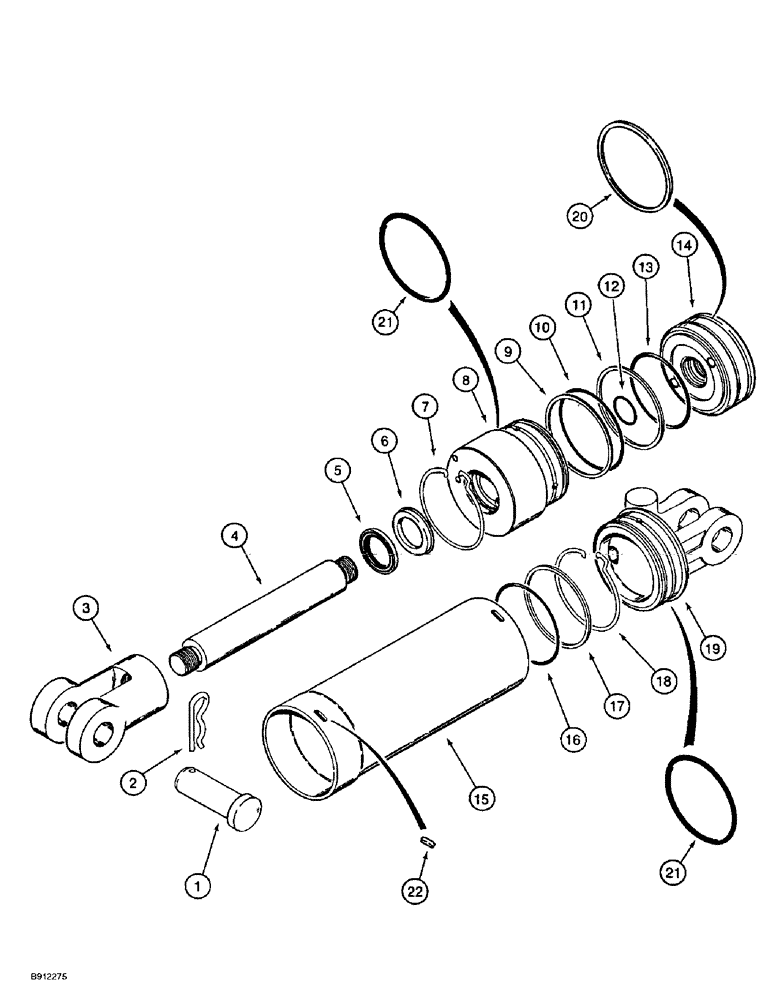

Схема запчастей Case 560 - (8-032) - REEL CARRIER LIFT CYLINDER ASSEMBLY - 101645A1 (08) - HYDRAULICS
8
6
1
21
21
13
5
12
16
17
9
19
7
4
14
11
18
3
22
2
10
15
20
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

101645A1

CYLINDER

ASSEMBLY - 64 (2-1/2) ID x 203 mm (8 inch) stroke, reel carrier lift, see Figure 9-135 for mounting, Includes: Ref. 1 - 22

1шт.

1

102910A1

PIN

- upset clevis

2шт.

2

1978738C1

HAIR PIN COTTER

3/16"

2шт.

3

102908A1

END

- piston rod

1шт.

4

102907A1

ROD

- piston

1шт.

5

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - U-cup, piston rod

1шт.

7

NSS

NOT SOLD SEPARAT

RING - locking

1шт.

8

102909A1

BEARING

GLAND - cylinder

1шт.

9

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - piston, outer

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - piston rod

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

14

102905A1

PISTON

- cylinder

1шт.

15

102906A1

TUBE

- cylinder

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - cylinder tube

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - backup, cylinder tube O-ring

1шт.

18

NSS

NOT SOLD SEPARAT

RING - locking

1шт.

19

102904A1

HEAD

- cylinder

1шт.

20

NSS

NOT SOLD SEPARAT

RING - wear, piston

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING - tube to gland and head

2шт.

22

NSS

NOT SOLD SEPARAT

COVER - slot, locking ring

2шт.

H673838

SEAL

KIT - cylinder seal repair

1шт.
