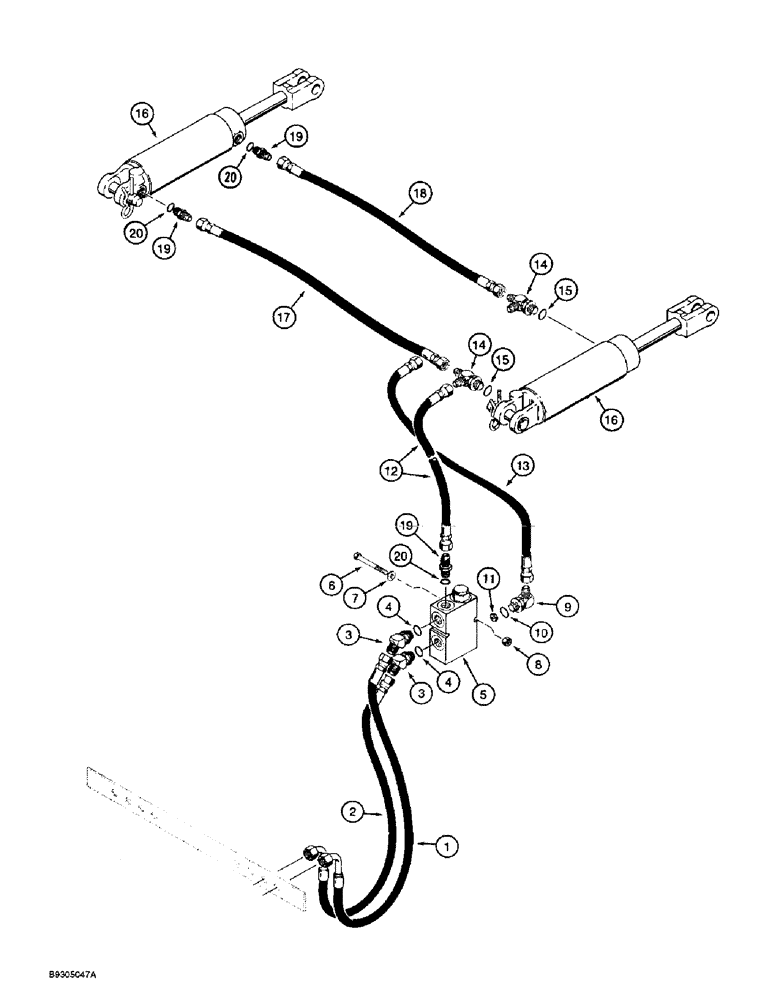

Запчасти Case 560 (8-030) - REEL CARRIER LIFT HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

117279A1

HOSE

- 555 mm (21-7/8 inch) long, front bulkhead plate to reel carrier lockout valve "B1" port

1шт.

2

117280A1

HOSE

- 505 mm (19-7/8 inch) long, front bulkhead plate to reel carrier lockout valve "P" port

1шт.

3

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 4

2шт.

5

H674608

VALVE

ASSEMBLY - reel carrier lockout, internal components are not shown, all serviceable components are listed directly below, Includes: Valves and Piston

1шт.

130808A1

VALVE, PRESSURE RELI

VALVE - relief, reel carrier lockout valve

1шт.

130810A1

VALVE, PRESSURE RELI

VALVE - check, reel carrier lockout valve

1шт.

130812A1

PISTON

- pilot, reel carrier lockout valve

1шт.

6

413-448

BOLT,Hex, 1/4" - 20 x 3", Gr 5

- hex, 1/4 NC x 3 inch

2шт.

7

H426767

WASHER

- flat, 9/32 x 5/8 x 3/64 inch

2шт.

8

232-4114

LOCK NUT,1/4"-20, GC

NUT, LOCK, 1/4"-20, GC

2шт.

9

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 10

1шт.

11

H746875

SCREW

ORIFICE - .0430 inch, plate

1шт.

12

H438085

HOSE

- 267 mm (10-1/2 inch) long, reel carrier lockout valve "B" port to tee at right-hand reel carrier lift cylinder, closed end

1шт.

13

H438086

HOSE

- 540 mm (21-1/4 inch) long, reel carrier lockout valve "A" port to tee at right-hand reel carrier lift cylinder, rod end

1шт.

14

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 9/16-18 inch flare branch x flare x adj O-ring boss, Includes: Ref. 15

2шт.

16

101645A1

CYLINDER

ASSEMBLY - 64 (2-1/2) ID x 203 mm (8 inch) stroke, reel carrier lift, parts list Figure 8-32

2шт.

17

H438080

HOSE

- 510 mm (20 inch) long, tee at right-hand reel carrier lift cylinder, closed end, to left-hand cylinder, closed end

1шт.

18

H438086

HOSE

- 540 mm (21-1/4 inch) long, tee at right-hand reel carrier lift cylinder, rod end to left-hand cylinder, rod end

1шт.

19

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 20

3шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

15

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
