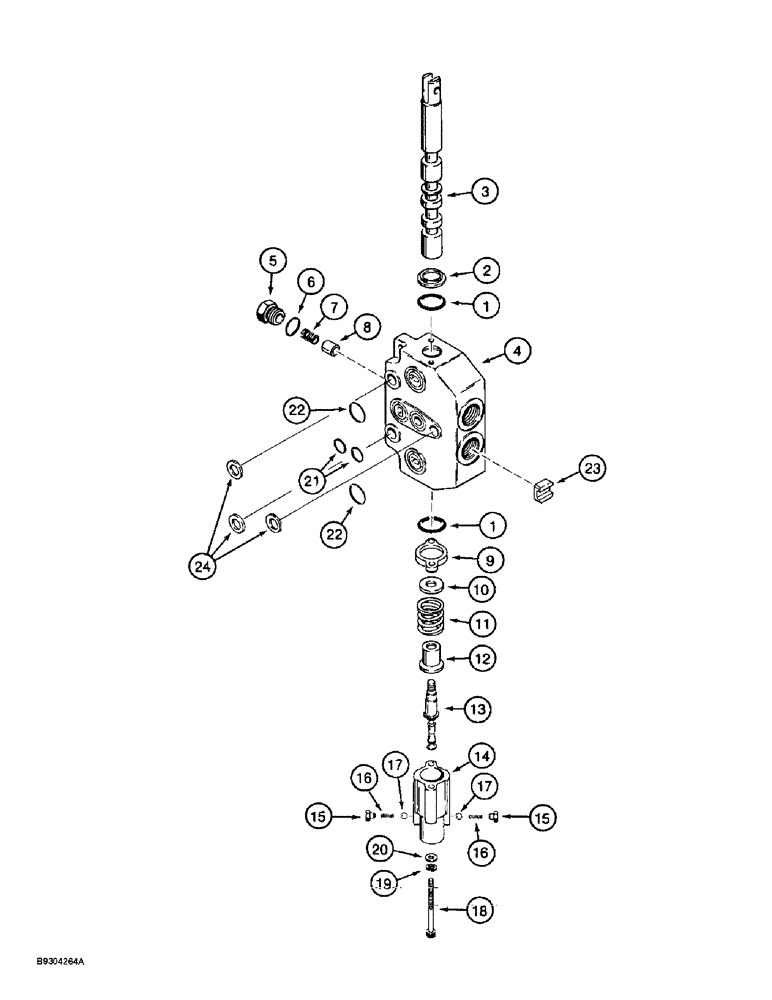

Запчасти Case 560 (8-024) - ATTACHMENT CONTROL VALVE ASSEMBLY - H674409, BLADE LIFT SECTION (08) - HYDRAULICS

H674409

VALVE

ASSEMBLY - control, attachment and rear steering, parts list figures 8-22 - 8-28, Includes: Ref. 1 - 24

1шт.

100415A1

KNIFE SECTION

SECTION ASSEMBLY - blade lift, Includes: Ref. 1 - 20

1шт.

1

H438030

O-RING

- spool

2шт.

2

H438926

WIPER SEAL

WIPER - spool

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - valve section

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - valve section

1шт.

H438024

SET

KIT - load check, Includes: Ref. 5 - 8

1шт.

5

H438231

PLUG

- load check, Includes: Ref. 6

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING - load check

1шт.

8

NSS

NOT SOLD SEPARAT

POPPET - load check

1шт.

100417A1

KIT

- detent, Includes: Ref. 9 - 20

1шт.

9

NSS

NOT SOLD SEPARAT

SPACER - spool

1шт.

10

NSS

NOT SOLD SEPARAT

WASHER - flat, special

1шт.

11

NSS

NOT SOLD SEPARAT

SPRING - return

1шт.

12

NSS

NOT SOLD SEPARAT

SPACER - spring

1шт.

13

NSS

NOT SOLD SEPARAT

SPOOL - detent

1шт.

14

NSS

NOT SOLD SEPARAT

CAP - detent end

1шт.

15

NSS

NOT SOLD SEPARAT

PLUG - detent

2шт.

16

NSS

NOT SOLD SEPARAT

SPRING - detent

2шт.

17

NSS

NOT SOLD SEPARAT

BALL - steel

2шт.

18

NSS

NOT SOLD SEPARAT

BOLT - cap

2шт.

19

NSS

NOT SOLD SEPARAT

WASHER - lock

2шт.

20

NSS

NOT SOLD SEPARAT

WASHER - flat

2шт.

21

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

2шт.

22

238-5017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

-017, 70 Duro, .676" ID x .070" Thk

2шт.

23

H438941

ORIFICE

PLATE - orifice, 2.388 mm (0.094 inch)

1шт.

24

128531A1

SHIM

- 0.001 inch thick, between sections

3шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
