Запчасти Case 560 (1-16) - PICTORIAL INDEX, ATTACHMENT HYDRAULIC CIRCUITS (00) - PICTORIAL INDEX

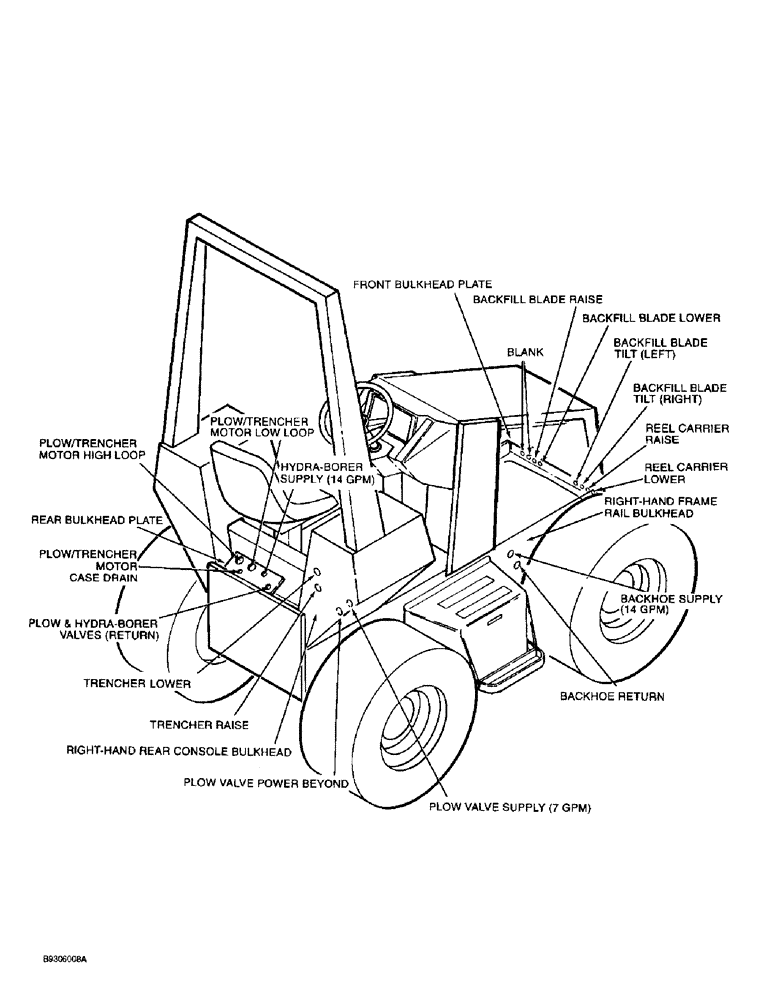

Схема запчастей Case 560 - (1-16) - PICTORIAL INDEX, ATTACHMENT HYDRAULIC CIRCUITS (00) - PICTORIAL INDEX

Артикул

Название

Примечание

Количество

1

Backfill blade hydraulic circuit 8-9

1шт.

from attachment control, Start Serial: valve

1шт.

front bulkhead plate

1шт.

2

Backfill blade hydraulic circuit 8-37

1шт.

from front bulkhead, Start Serial: plate

1шт.

backfill blade cylinders

1шт.

3

Reel carrier hydraulic circuit from 8-11

1шт.

right-hand rear, Serial Range: console-front

1шт.

bulkhead plate

1шт.

4

Reel carrier hydraulic circuit from 8-31

1шт.

front bulkhead, Serial Range: plate-reel

1шт.

carrier lift cylinders

1шт.

5

Backhoe hydraulic circuit from rear 8-15

1шт.

bulkhead plate to right-hand front

1шт.

frame for backhoe control valve

1шт.

supply

1шт.

6

Backhoe hydraulic circuit from 8-45, 8-71

1шт.

right-hand front, Serial Range: frame-backhoe

1шт.

control valve

1шт.

7

Backhoe hydraulic circuit from 8-47 - 8-55, 8-73 - 8-81

1шт.

backhoe control, Serial Range: valve-backhoe

1шт.

cylinders

1шт.

8

Trencher lift hydraulic circuit 8-11

1шт.

from attachment control, Start Serial: valve

1шт.

right-hand rear console

1шт.

9

Trencher lift hydraulic circuit 8-107, 8-109

1шт.

from right-hand rear, Start Serial: console

1шт.

lockout valve and boom lift

1шт.

cylinder, direct drive and

1шт.

planetary drive trenchers

1шт.

10

Plow supply hydraulic circuit from 8-15

1шт.

attachment control valve power

1шт.

beyond

1шт.

11

Plow power beyond hydraulic circuit 8-119, 8-133, 8-135

1шт.

from priority flow divider

1шт.

12

Trencher drive hydraulic circuit 8-13

1шт.

from tandem pump (High, Start Serial: Loop)

1шт.

rear bulkhead plate

1шт.

13

Trencher drive hydraulic circuit 8-103, 8-105

1шт.

from rear bulkhead, Start Serial: plate

1шт.

trencher drive motor

1шт.

14

Plow hydraulic circuit from tandem 8-13

1шт.

pump (High Loop) to rear bulkhead

1шт.

plate

1шт.

15

Plow motor hydraulic circuit from 8-133, 8-137

1шт.

rear bulkhead plate to plow motor

1шт.

16

Trencher drive hydraulic circuit 8-13

1шт.

from tandem pump (Low, Serial Range: Loop)-rear

1шт.

bulkhead plate

1шт.

17

Trencher drive hydraulic circuit 8-103, 8-105

1шт.

from rear bulkhead, Start Serial: plate

1шт.

trencher drive motor

1шт.

18

Plow hydraulic circuit from tandem 8-13

1шт.

pump (Low Loop) to rear bulkhead

1шт.

plate

1шт.

19

Plow motor hydraulic circuit from 8-133, 8-137

1шт.

rear bulkhead plate to plow motor

1шт.

20

Case drain hydraulic circuit 8-13

1шт.

21

Hydra-Borer hydraulic circuit from 8-15

1шт.

attachment control valve and

1шт.

priority flow divider power beyond

1шт.

to rear bulkhead plate

1шт.

22

Hydra-Borer hydraulic circuit from 8-155, 8-159

1шт.

rear bulkhead, Serial Range: plate-selector

1шт.

valve and selector, Serial Range: valve-control

1шт.

valve

1шт.

23

Return hydraulic circuit from rear 8-13

1шт.

bulkhead to backhoe return tee

1шт.

24

Hydra-Borer return hydraulic 8-13

1шт.

circuit

1шт.

25

Plow return hydraulic circuit

1шт.

Выбрано товаров: 71
