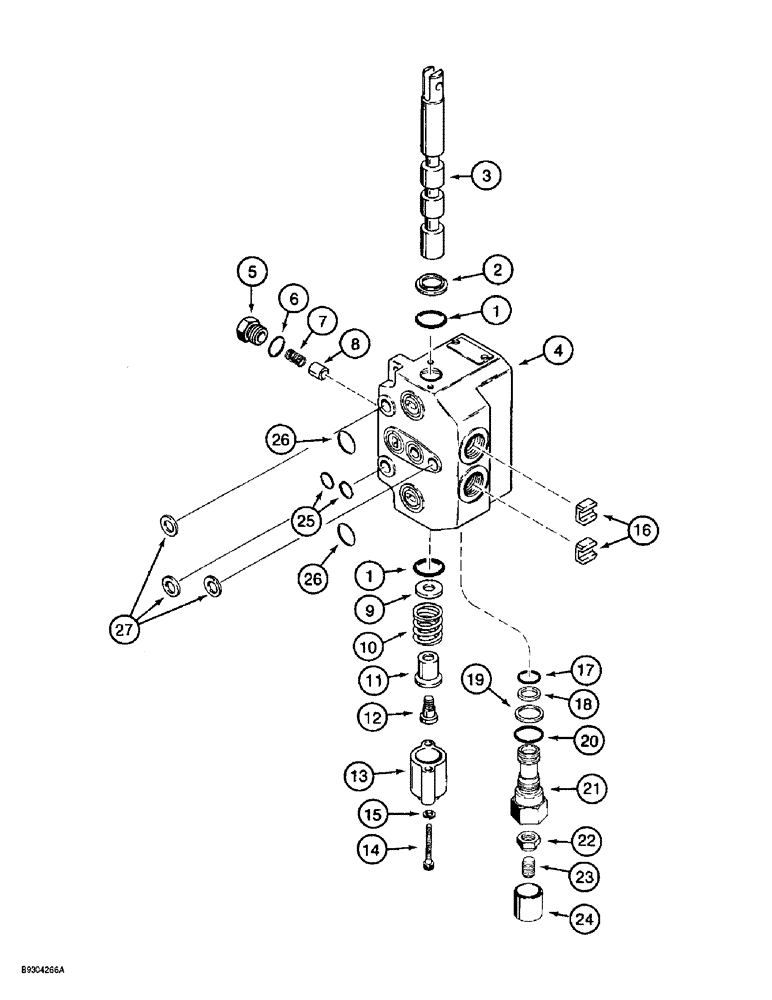

Запчасти Case 560 (8-022) - ATTACHMENT CONTROL VALVE ASSEMBLY - H674409, INLET AND BLADE TILT SECTION (08) - HYDRAULICS

H674409

VALVE

ASSEMBLY - control, attachment and rear steering, parts list Figures 8-20 - 8-28, Includes: Ref. 1 - 27

1шт.

100412A1

KNIFE SECTION

SECTION ASSEMBLY - inlet and blade tilt, Includes: Ref. 1 - 15

1шт.

1

H438030

O-RING

- spool

2шт.

2

H438926

WIPER SEAL

WIPER - spool

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - valve section

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - valve section

1шт.

H438024

SET

KIT - load check, Includes: Ref. 5 - 8

1шт.

5

H438231

PLUG

- load check, Includes: Ref. 6

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING - load check

1шт.

8

NSS

NOT SOLD SEPARAT

POPPET - load check

1шт.

100416A1

KIT

- spring center, Includes: Ref. 9 - 15

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER - return

1шт.

10

N9539

TENSION SPRING

SPRING - centering

1шт.

11

NSS

NOT SOLD SEPARAT

SPACER - spring

1шт.

12

NSS

NOT SOLD SEPARAT

BOLT - shoulder

1шт.

13

NSS

NOT SOLD SEPARAT

CAP - end

1шт.

14

62-31024

SCREW,Hex Soc Hd, #10-32 x 1 1/2"

BOLT - hex socket, No. 10 NF x 1-1/2 inch

2шт.

15

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

16

H438941

ORIFICE

PLATE - orifice, 2.388 mm (0.094 inch)

2шт.

100410A1

VALVE

ASSEMBLY - relief, Includes: Ref. 17 - 24

1шт.

17

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

1шт.

Part of Gasket Kit, P/N H674535

1шт.

18

H438044

GASKET

RING - backup

1шт.

Part of Gasket Kit, P/N H674535

1шт.

19

101493A1

OIL SEAL

RING - backup

1шт.

Part of Gasket Kit, P/N H674535

1шт.

20

238-6017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

1шт.

Part of Gasket Kit, P/N H674535

1шт.

21

NSS

NOT SOLD SEPARAT

VALVE - relief

1шт.

22

NSS

NOT SOLD SEPARAT

NUT - seal, special

1шт.

Part of Gasket Kit, P/N H674535

1шт.

23

NSS

NOT SOLD SEPARAT

SCREW - set

1шт.

Part of Gasket Kit, P/N H674535

1шт.

24

NSS

NOT SOLD SEPARAT

CAP - end

1шт.

25

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

2шт.

26

238-5017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

-017, 70 Duro, .676" ID x .070" Thk

2шт.

27

128531A1

SHIM

- 0.001 inch thick, between sections

3шт.

H674535

GASKET KIT

KIT - seal, main relief valve, service, Includes: Ref. 17, 18, 19, 20, 22 and 23

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
