Запчасти Case 560 (8-018) - HYDRAULIC OIL RETURN AND CHARGE FILTER ASSEMBLY - D125507 (08) - HYDRAULICS

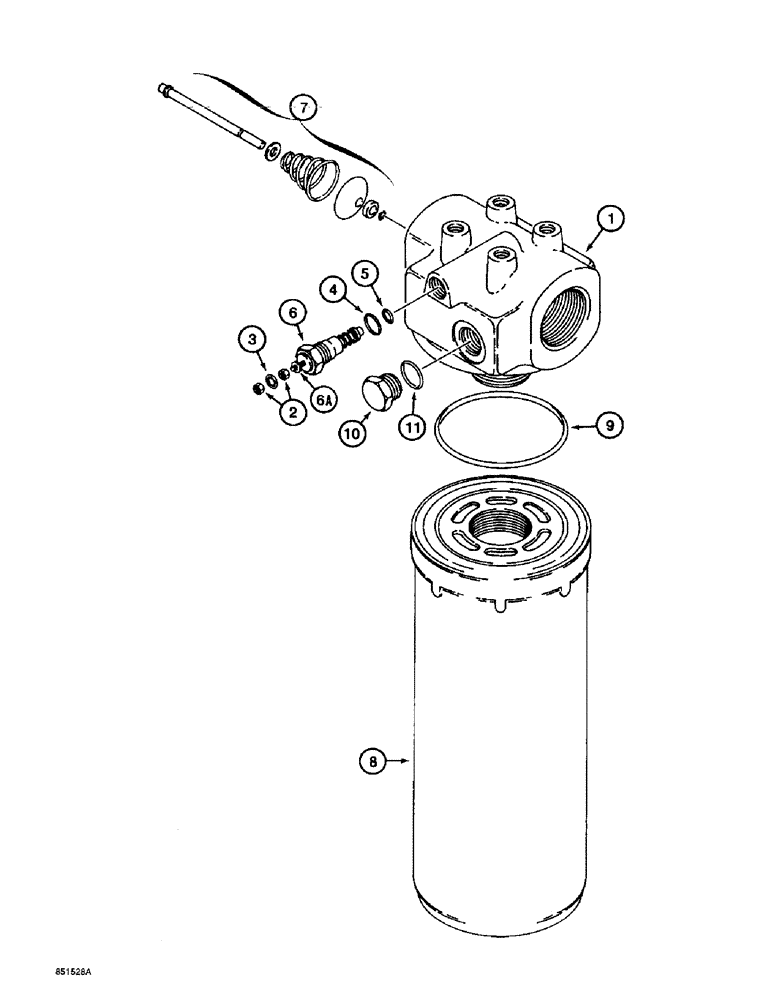

Схема запчастей Case 560 - (8-018) - HYDRAULIC OIL RETURN AND CHARGE FILTER ASSEMBLY - D125507 (08) - HYDRAULICS
1
9
7
5
10
8
6a
3
2
6
11
4

Артикул

Название

Примечание

Количество

D125507

FILTER

ASSEMBLY - hydraulic oil, return and charge, Includes: Ref. 1 - 11

2шт.

1

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

N13268

PRESSURE SWITCH

INDICATOR ASSEMBLY - restriction, electrical, Includes: Ref. 2 - 6A

1шт.

2

129-667

NUT,#10-32, LH

2шт.

3

493-21020

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, (3/16") Int Tooth, #10

1шт.

5

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk, Middle, small

1шт.

6

NSS

NOT SOLD SEPARAT

INDICATOR - restriction, electric

1шт.

6a

NSS

NOT SOLD SEPARAT

WASHER - identification, red/white color

1шт.

7

NSS

NOT SOLD SEPARAT

VALVE - bypass, filter

1шт.

D126922

FILTER, ELEMENT

ELEMENT ASSEMBLY - filter, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

ELEMENT - filter

1шт.

9

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

10

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 11 Hex Hd, 9/16"-18 ORB

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

Выбрано товаров: 15
