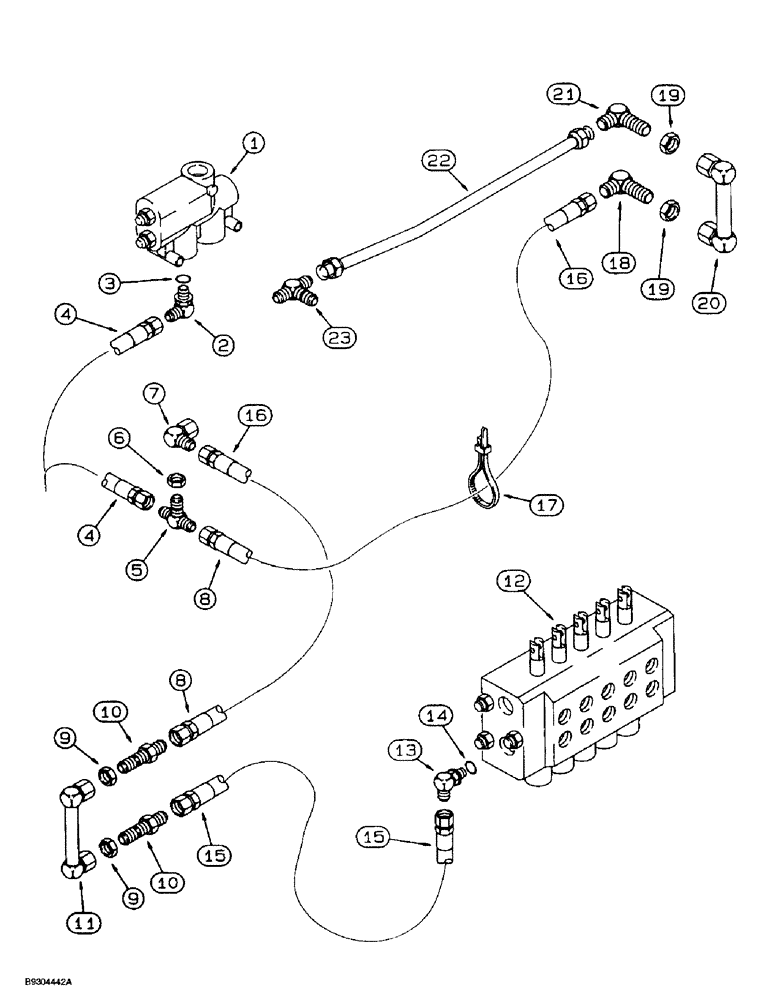

Запчасти Case 560 (8-014) - BASIC HYDRAULIC CIRCUIT, POWER BEYOND CIRCUIT (08) - HYDRAULICS

1

H672904

VALVE

ASSEMBLY - priority flow divider, parts list Figure 5-20, see Figure 5-08 for mounting

1шт.

2

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

107759A1

HOSE

- 510 mm (20 inch) long, priority flow divider, Serial Range: valve-tee

1шт.

5

218-807

TEE,1 1/16"-12, 37 Degree, Blkhd

- 1-1/16-12 inch bulkhead flare branch x flare x flare

1шт.

6

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, lock, bulkhead, 1-1/16 inch NF

1шт.

7

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degree, 1-1/16-12 inch flare x swivel

1шт.

8

107891A1

HOSE ASSY.

HOSE - 1050 mm (41-5/16 inch) long, plow power, Serial Range: beyond-tee

1шт.

9

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, lock, bulkhead, 1-1/16 inch NF

2шт.

10

218-676

FITTING,Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

ADAPTER - straight, 1-1/16-12 inch flare x bulkhead flare

2шт.

11

H673212

FITTING

- special

1шт.

12

H674409

VALVE

ASSEMBLY - control, attachment and rear steering, parts list Figures 8-20 - 8-28, see Figure 8-6 for mounting

1шт.

13

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 3/4-16 flare x 7/8-14 inch adj O-ring boss, Includes: Ref. 14

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

15

113698A1

HOSE ASSY.

HOSE - 575 mm(22-5/8 inch) long, attachment control valve power beyond to upper plow supply

1шт.

16

107624A1

HOSE

- 1640 mm (64-9/16 inch) long, rear bulkhead tee to backhoe bulkhead

1шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

18

218-696

ELBOW,90 Degree Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

1шт.

19

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, lock, bulkhead, 1-1/16 inch NF

2шт.

20

H673212

FITTING

- special

1шт.

21

H438132

ADAPTER

ELBOW - 90 degree, special

1шт.

22

104421A1

TUBE,19.1 mm OD, 662 mm Length

- return tube to filter tee

1шт.

23

218-807

TEE,1 1/16"-12, 37 Degree, Blkhd

- 1-1/16-12 inch bulkhead flare branch x flare x flare

1шт.
