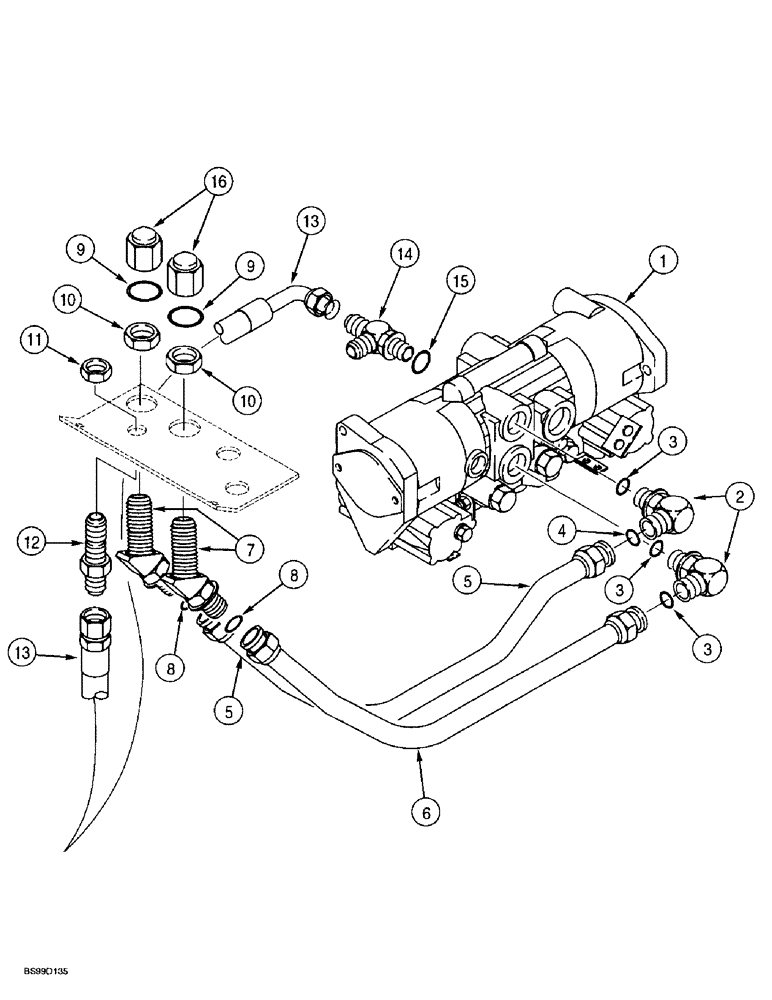

Запчасти Case 560 (8-012) - BASIC HYDRAULIC CIRCUIT, REAR BULKHEAD PLATE SUPPLY AND RETURN LINES (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
104437A1
PUMP
ASSEMBLY - tandem, parts list Figures 6-14 - 6-24, see Figure 6-6 for mounting
1шт.
2
201-308
ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB
- 90 deg, 1-7/16-12 face x 1-5/16-12 inch adj O-ring, Includes: Ref. 3 and 4
2шт.
3
238-6021
O-RING,15/16 X 1 - 1/16, Cl 6
Face End -021, 90 Duro, .926" ID x .070" Thk
1шт.
4
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
16-1, 90 Duro, 1.171" ID x .118" Thk, Boss end
1шт.
5
107688A1
TUBE,25.4 mm OD, 432, 212 mm Length
- tandem pump "C" port to rear bulkhead plate for attachment drive "high loop"
1шт.
6
107689A1
TUBE,25.4 mm OD, 418, 169 mm Length
- tandem pump "D" port to rear bulkhead plate for attachment drive "low loop"
1шт.
7
201-366
ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS
- 45 degree, 1-7/16-12 face blkhd x 1-5/16 inch adj O-ring, Includes: Ref. 8 and 9
2шт.
8
238-6021
O-RING,15/16 X 1 - 1/16, Cl 6
Face End -021, 90 Duro, .926" ID x .070" Thk
1шт.
9
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
16-1, 90 Duro, 1.171" ID x .118" Thk, Boss end
1шт.
10
201-908
BHD LOCK NUT,Blkhd, 1 7/16"-12
NUT - hex, lock, bulkhead, 1-7/16 inch NF
2шт.
11
218-1251
BHD LOCK NUT,Blkhd, 7/8"-14
NUT, LOCK, Blkhd, 7/8"-14
1шт.
12
218-675
FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree
ADAPTER - straight, 7/8-14 inch flare x bulkhead flare
1шт.
13
H439346
HOSE
- 712 mm (28 inch) long, case drain, rear bulkhead plate adapter to tandem pump
1шт.
14
218-5294
TEE,37 Degree, 7/8"-14, 1 1/16"-12 O-Ring Run, 7/8"-14
- 7/8-14 flare branch x flare x 1-1/16-12 inch adj O-ring boss, Includes: Ref. 15
1шт.
15
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
12-1, 90 Duro, .924 ID x .116" Thk
1шт.
16
201-901
CAP,1 7/16"-12 ORFS
- hex, 1-7/16-12 inch face seal, used when circuit to pump is disconnected
1шт.
Выбрано товаров: 16
