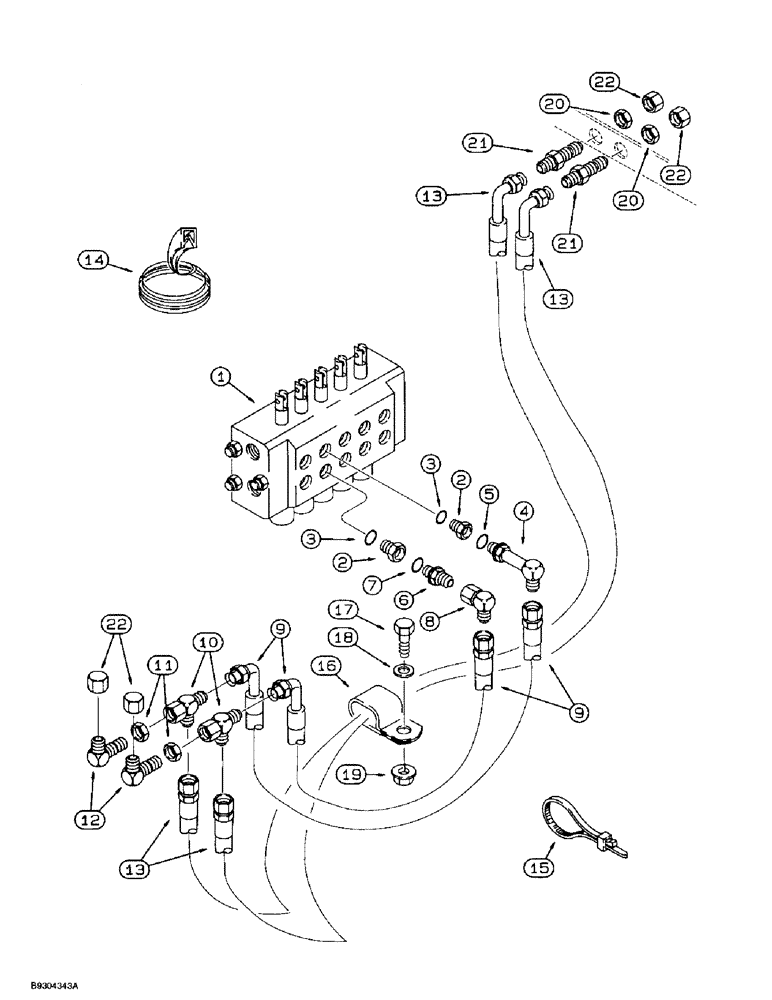

Запчасти Case 560 (8-010) - BASIC HYDRAULIC CIRCUIT, ATTACHMENT CONTROL VALVE TO RIGHT-HAND REAR CONSOLE (08) - HYDRAULICS

1

H674409

VALVE

ASSEMBLY - control, attachment and rear steering, parts list Figures 8-20 - 8-28, see Figure 8-6 for mounting

1шт.

2

218-5314

ADAPTER,1/2" NPT Male x 1/2" Fem ORB

- straight, 3/4-16 O-ring boss x 9/16-18 inch female O-ring boss, Includes: Ref. 3

3шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

218-5552

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree long, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 5

1шт.

6

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 7

1шт.

8

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, 9/16-18 inch flare x swivel

1шт.

9

H438001

HOSE ASSY.

HOSE - 532 mm (21 inch) long, attachment control valve to right-hand rear console, trencher lift circuit, see Figure 8-106 or 8-108 for trencher lift hydraulic circuit from console to lift cylinder

2шт.

10

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- swivel, 9/16-18 inch flare branch x flare x swivel

2шт.

11

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - hex, lock, bulkhead, 9/16 inch NF

2шт.

12

218-696

ELBOW,90 Degree Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

2шт.

13

107618A1

HOSE

- 2500 mm (98-7/16 inch) long, console bulkhead to front bulkhead plate, reel carrier raise/lower circuit, see Figure 8-30 for reel carrier cylinder circuit

2шт.

14

H438326

MOLDING

- hose protection

1шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

16

A180154

CLAMP

- P-type, hose

1шт.

17

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

18

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

1шт.

19

231-5146

FLANGE NUT,3/8"-16

1шт.

20

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - hex, lock, bulkhead, 9/16 inch NF

2шт.

21

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

ADAPTER - straight, 9/16-18 inch flare x bulkhead flare

2шт.

22

218-754

CAP,37 Degree, 9/16"-18

- hex, 9/16-18 inch

4шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
