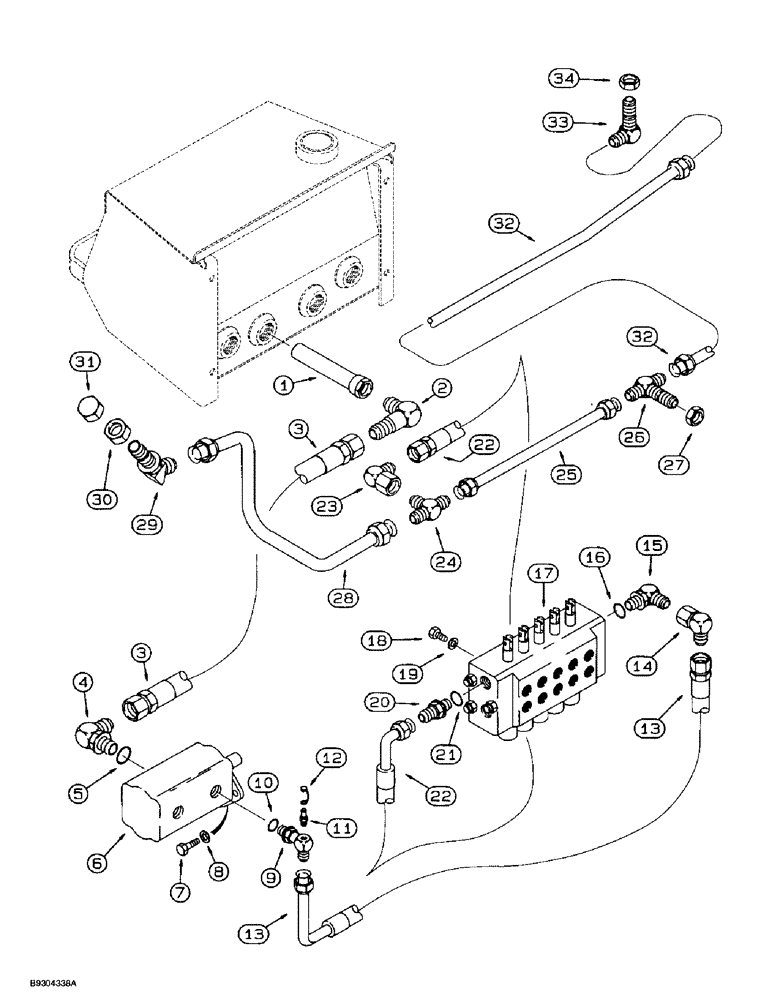

Запчасти Case 560 (8-006) - BASIC HYDRAULIC CIRCUIT, ATTACHMENT CONTROL VALVE SUPPLY AND RETURN LINES (08) - HYDRAULICS

1

H151399

FILTER STRAINER

SCREEN - filter

1шт.

2

218-500

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- 90 degree, 1-5/16-12 flare x 1 inch PT

1шт.

3

107762A1

HOSE

- 800 mm (31-1/2 inch) long, suction, reservoir to dual pump

1шт.

4

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, 1-5/16-12 inch flare x adj O-ring boss, Incl. Ref. 5

1шт.

5

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

6

105969A1

PUMP

ASSEMBLY - dual, complete assembly, complete assembly, contains no serviceable components - with the exception of internal seals. For replacement seals order 129487A1 seal kit, see below

1шт.

7

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

8

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

9

114384A1

ADAPTER

ELBOW - 90 degree, special, Includes: Ref. 10

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

11

H434164

COUPLING

COUPLER - quick check, diagnostic

1шт.

12

H434163

DUST CAP

CAP - dust, coupler

1шт.

13

107889A1

HOSE

- 508 mm (20 inch) long, dual pump to attachment control valve

1шт.

14

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degree, 7/8-14 inch flare x swivel

1шт.

15

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref. 16

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

17

H674409

VALVE

ASSEMBLY - control, attachment and rear steering, parts list Figures 8-20 - 8-28

1шт.

18

414-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

3шт.

19

H426775

WASHER

- flat, special, hardened

3шт.

20

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, Incl. Ref 21 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

22

107890A1

HOSE

- 775 mm (30-1/2 inch) long, attachment and rear steering control valve to return tee

1шт.

23

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degree, 1-1/16-12 inch flare x swivel

1шт.

24

H438131

ADAPTER

TEE - special, return

1шт.

25

104422A1

TUBE,19.1 mm OD, 382 mm Length

- return tee to filter tee

1шт.

26

218-807

TEE,1 1/16"-12, 37 Degree, Blkhd

- 1-1/16-12 inch bulkhead flare branch x flare x flare

1шт.

27

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, lock, bulkhead, 1-1/16 inch NF

1шт.

28

104423A1

TUBE,19.1 mm OD, 137, 100 mm Length

- rear bulkhead plate to return tee

1шт.

29

218-717

ELBOW,45 Degree Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

- 45 degree, 1-1/16-12 flare x bulkhead flare

1шт.

30

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, lock, bulkhead, 1-1/16 inch NF

1шт.

31

218-335

CAP,37 Degree, 1 1/16"-12

- hex, 1-1/16-12 inch

1шт.

32

104421A1

TUBE,19.1 mm OD, 662 mm Length

- return tee to filter tee

1шт.

33

H438132

ADAPTER

ELBOW - 90 degree, special

1шт.

34

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, lock, bulkhead, 1-1/16 inch NF

1шт.

129487A1

SEAL PACKAGE

KIT - dual pump seal replacement, includes all seals and O-rings used in 105969A1 dual pump assembly

1шт.
