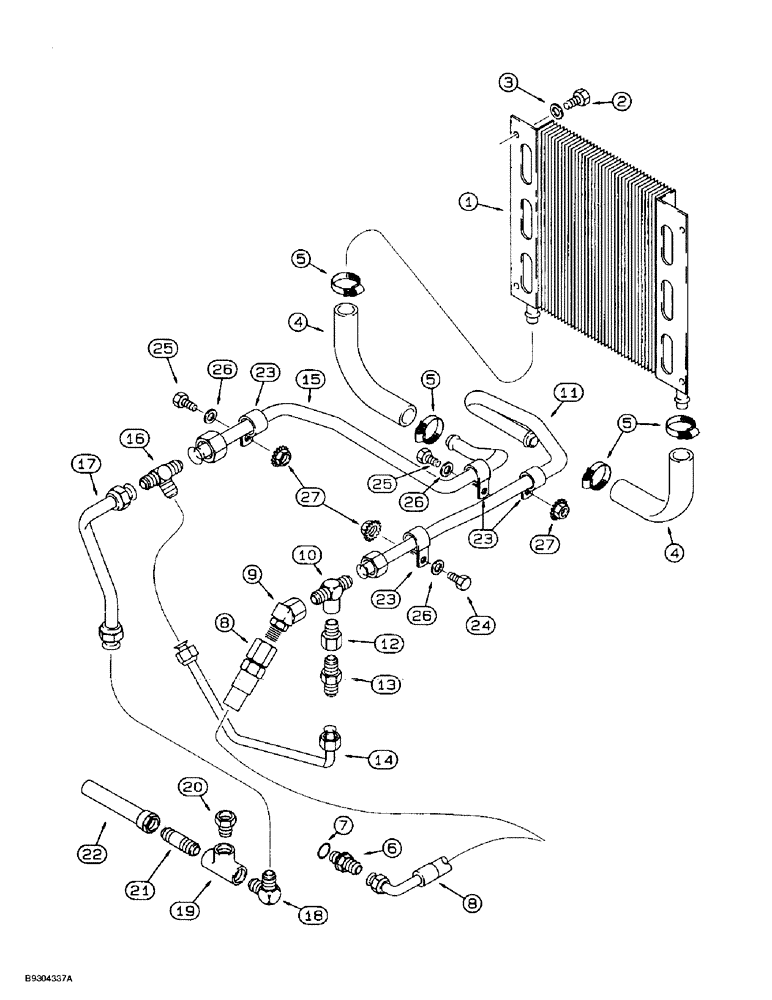

Запчасти Case 560 (8-004) - BASIC HYDRAULIC CIRCUIT, OIL COOLER SUPPLY AND RETURN LINES (08) - HYDRAULICS

1

109688A1

COOLER, OIL

COOLER - hydraulic oil

1шт.

2

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

3

H426775

WASHER

- flat, special, hardened

4шт.

4

H123729

HYDRAULIC HOSE,14.50"

- Cut from H307926 bulk hose, Tubes to oil cooler, See below 14.50"

2шт.

5

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, , Adj. #20, 0.81/1.75 Type F Worm

4шт.

6

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., straight, 1-5/16-12 flare x 1-1/16-12 inch O-ring boss, Incl. Ref. 7

1шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

8

107755A1

HOSE

- 740 mm (29-1/8 inch) long, tandem pump to oil cooler

1шт.

9

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

- 45 degree, 1-5/16-12 inch flare x swivel

1шт.

10

218-582

TEE,1 5/16"-12, 37 Degree x 3/4"-14, NPTF Fem Br

- 3/4 female PT branch x 1-5/16-12 inch flare x flare

1шт.

11

104420A1

TUBE,1.65 mm OD, 400, 125 mm Length

- tandem pump hose to oil cooler

1шт.

12

H627513

VALVE

- check

1шт.

13

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - straight, 1-1/16/12 inch flare x 3/4 inch PT

1шт.

14

107776A1

TUBE,19.1 mm OD, 412,185 mm Length

- oil cooler bypass

1шт.

15

104419A1

TUBE,25.4 mm OD, 536121 mm Length

- oil cooler to hydraulic oil reservoir

1шт.

16

218-587

TEE,37 Degree, 1 5/16"-12 x 1 1/16"-12, Br

- 1-1/16-12 flare branch x 1-5/16-12 inch flare x flare

1шт.

17

113238A1

TUBE

- oil cooler return tee to hydraulic oil reservoir

1шт.

18

218-488

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

- 90 degree, 1-5/16-12 flare x 1 inch PT

1шт.

19

221-457

TEE,Pipe, 1" NPT x 3/4" NPT Br

- pipe, 1 x 1 x 3/4 inch

1шт.

20

221-93

REDUCER,Hex, 3/4" x 1/2" NPT

- pipe, 3/4 male x 1/2 inch female

1шт.

21

221-236

PIPE,Nipple, 1" NPT x 1 1/2"

NIPPLE - straight, 1 PT x 1-1/2 inch

1шт.

22

H151399

FILTER STRAINER

SCREEN - filter

1шт.

23

D88052

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

- P-type, 1 inch ID, tube

4шт.

24

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

25

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

26

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

3шт.

27

231-5146

FLANGE NUT,3/8"-16

3шт.

H307926

HOSE ASSY.

HOSE - bulk, 25 (1) ID x 1575 (62 inch) long

1шт.
