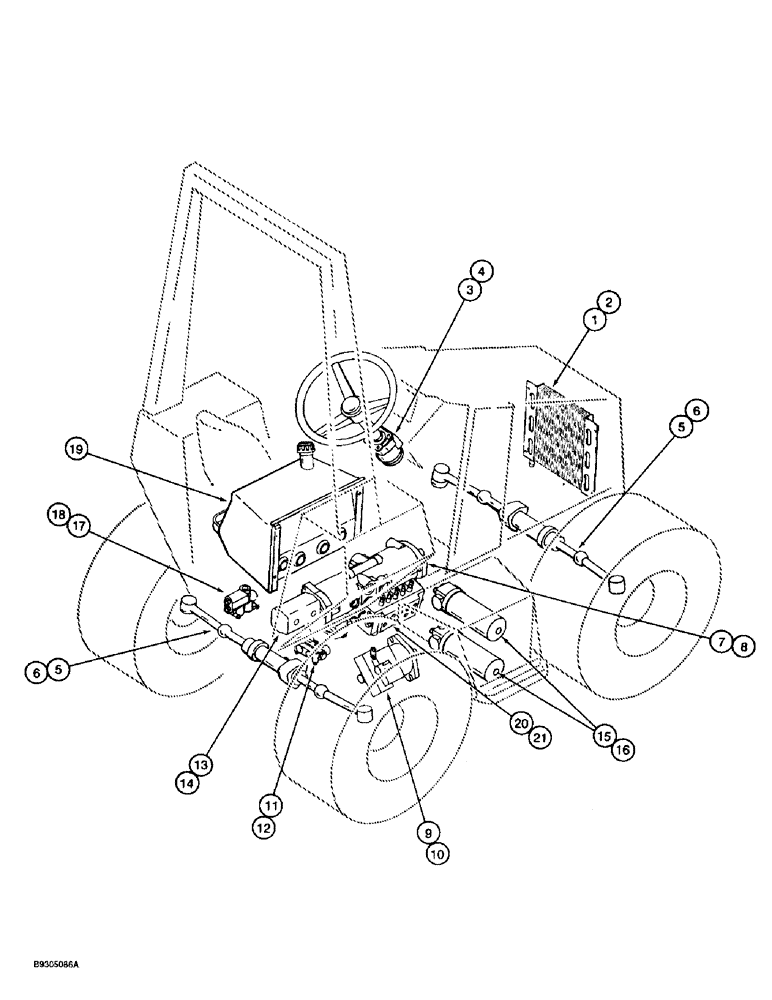

Запчасти Case 560 (1-14) - PICTORIAL INDEX, BASIC UNIT HYDRAULIC COMPONENTS (00) - PICTORIAL INDEX

1

Hydraulic oil cooler mounting 8-5

1шт.

2

Hydraulic oil cooler supply and 8-5

1шт.

return lines

1шт.

3

Steering control valve assembly and 5-3, 5-11

1шт.

mounting

1шт.

4

Steering control valve hydraulic 5-7

1шт.

circuit

1шт.

5

Steering cylinder assembly and 6-43

1шт.

mounting

1шт.

6

Steering cylinder hydraulic 5-7, 5-9

1шт.

circuits

1шт.

7

Tandem pump assembly and mounting 6-7, 6-11, 6-21

1шт.

8

Tandem pump (ground drive) 6-7, 6-9

1шт.

hydrualic circuit

1шт.

9

Ground drive motor assembly and 6-7, 6-25

1шт.

mounting

1шт.

10

Ground drive motor hydraulic 6-7, 6-9

1шт.

circuit

1шт.

11

Priority flow divider valve 5-7, 5-15

1шт.

assembly and mounting

1шт.

12

Priority flow divider valve 5-7, 8-15, 8-17

1шт.

hydraulic circuits

1шт.

13

Dual pump assembly and mounting 5-7, 5-13

1шт.

14

Dual pump hydraulic circuits 5-7, 5-9, 8-7

1шт.

15

Hydraulic charge and return filter 6-7, 8-17

1шт.

assembly and mounting

1шт.

16

Hydraulic charge and return filter 6-7, 6-9, 8-17

1шт.

hydraulic circuits

1шт.

17

Steering lockout valve assembly and 5-9, 5-17

1шт.

mounting

1шт.

18

Steering lockout valve hydraulic 5-9

1шт.

circuit

1шт.

19

Hydraulic oil reservoir and 8-3

1шт.

mounting

1шт.

20

Attachment and rear steering 5-9, 8-21 - 8-29

1шт.

control valve assembly and mounting

1шт.

21

Attachment and rear steering 5-9, 8-7 - 8-11

1шт.

control valve hydraulic circuits

1шт.
