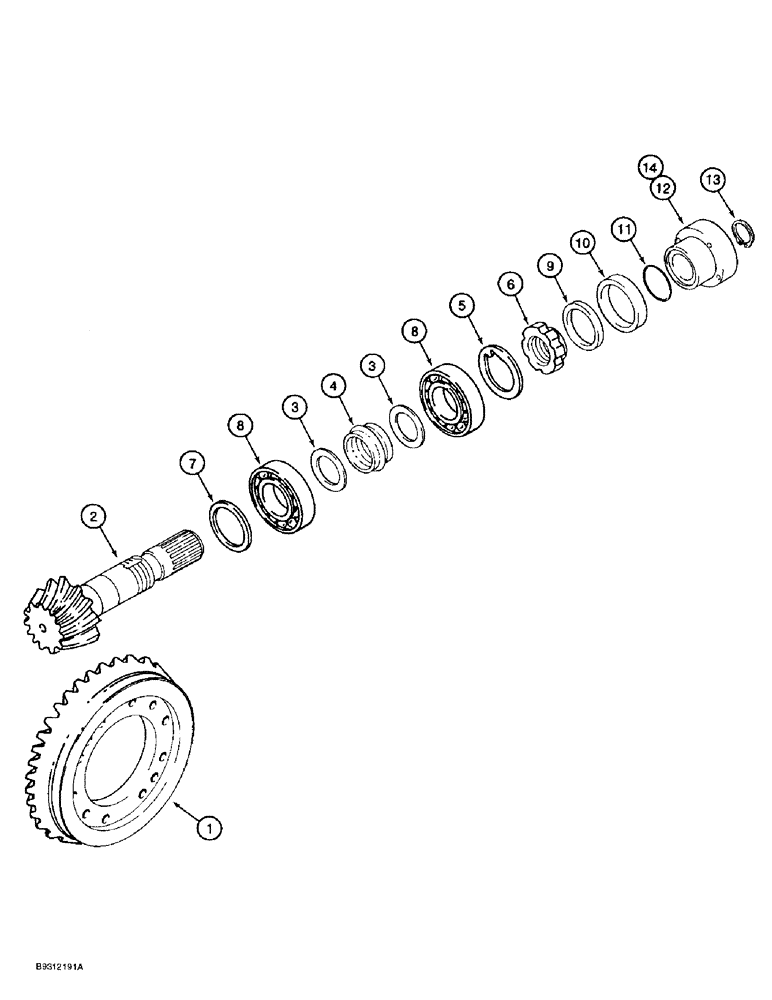

Запчасти Case 560 (6-52) - FRONT AND REAR DRIVE AXLE ASSEMBLIES, RING AND PINION GEAR SET (06) - POWER TRAIN

H675111

CENTER AXLE

AXLE ASSEMBLY - front and rear drive, parts list Figures 6-40 - 6-52, see Figure 6-30 for mounting and axle identification, no longer available, order 133220A1 axle for front drive and 135973A1 axle for rear drive

2шт.

133220A1

AXLE HOUSING

AXLE ASSEMBLY - front drive, parts list Figures 6-40 - 6-52, see Figure 6-31A for mounting and axle identification, Includes: Ref. 1 - 14

1шт.

135973A1

AXLE

ASSEMBLY - rear drive, parts list Figures 6-40 - 6-52, see page 6-31A for mounting and axle identification, Includes: Ref. 1 - 14

1шт.

130165A1

GEAR-SET

GEAR - set, ring and pinion, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

GEAR - ring, differential

1шт.

2

NSS

NOT SOLD SEPARAT

GEAR - pinion, differential

1шт.

3

1984946C1

WASHER

- spacer

2шт.

4

130166A1

SPACER

- collapsible

1шт.

5

1966574C1

WASHER

- special

1шт.

6

1966573C1

RING NUT

RING - nut, pinion gear

1шт.

7

1966172C1

SHIM

- 2.50 mm thick

1шт.

7

1966173C1

SHIM

- 2.60 mm thick

1шт.

7

1966174C1

SHIM

- 2.70 mm thick

1шт.

7

1966175C1

SHIM

- 2.80 mm thick

1шт.

7

1966176C1

SHIM

- 2.90 mm thick

1шт.

7

1966177C1

SHIM

- 3.00 mm thick

1шт.

7

1966178C1

SHIM

- 3.10 mm thick

1шт.

7

1966179C1

SHIM

- 3.20 mm thick

1шт.

7

1966180C1

SHIM

- 3.30 mm thick

1шт.

7

1966181C1

SHIM

- 3.40 mm thick

1шт.

8

905844R91

TAPERED BEARING,35 mm ID x 72 mm OD x 19 mm

AND CUP ASSEMBLY BEARING - tapered roller, pinion gear

2шт.

9

1966264C1

THRUST WASHER

WASHER - thrust

1шт.

10

1966194C1

OIL SEAL

SEAL - oil

1шт.

11

100537A1

O-RING,0.103" Thk x 1.174" ID, -123, Cl 5, 75 Duro

- seal

1шт.

12

1966270C1

FLANGE

- differential, H675111 axle

1шт.

13

800-1130

SNAP RING,M30, Ext

- Retaining M30, Ext

1шт.

14

138422A1

FLANGE

- differential, 133220A1 front axle and 135973A1 rear axle

1шт.
