Запчасти Case 560 (6-50) - FRONT AND REAR DRIVE AXLE ASSEMBLIES, DIFFERENTIAL (06) - POWER TRAIN

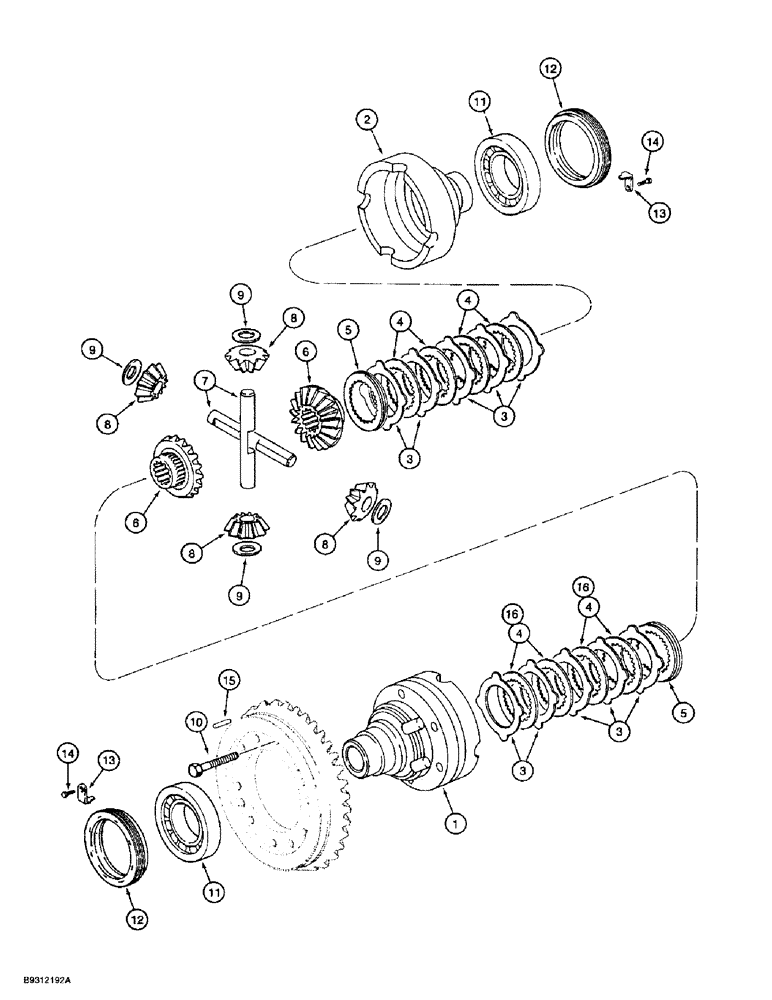

Схема запчастей Case 560 - (6-50) - FRONT AND REAR DRIVE AXLE ASSEMBLIES, DIFFERENTIAL (06) - POWER TRAIN
5
3
13
3
9
5
4
4
16
11
9
8
2
6
13
14
3
4
12
8
9
1
15
9
6
16
8
4
12
3
11
8
7
14
10

Артикул

Название

Примечание

Количество

H675111

CENTER AXLE

AXLE ASSEMBLY - front and rear drive, parts list Figures 6-40 - 6-52, see Figure 6-30 for mounting and axle identification, no longer available, order 133220A1 axle for front drive and 135973A1axle for rear drive

2шт.

133220A1

AXLE HOUSING

AXLE ASSEMBLY - front drive, parts list Figures 6-40 - 6-52, see Figure 6-31A for mounting and axle identification, Includes: Ref. 1 - 16

1шт.

135973A1

AXLE

ASSEMBLY - rear drive, parts list Figures 6-40 - 6-52, see Figure 6-31A for mounting and axle identification, Includes: Ref. 1 - 16

1шт.

130178A1

HOUSING

ASSEMBLY - differential, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - differential, flange half

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - differential, plain half

1шт.

3

130171A1

PLATE

- drive, friction, differential housing

10шт.

4

130172A1

LARGE PLATE

PLATE - driven, friction, differential housing, H675111 axle

8шт.

5

130170A1

LARGE PLATE

PLATE - backing

2шт.

6

130179A1

GEAR

- side, pinion, differential

2шт.

7

130169A1

SHAFT

- pinion gear

2шт.

8

130168A1

GEAR

- pinion, differential

4шт.

9

130167A1

WASHER

- thrust, pinion gear

4шт.

10

130176A1

SCREW,Hex, M10 x 70mm

BOLT - hex, self-locking, 10 x 70 mm

6шт.

11

130173A1

BEARING, BALL

BEARING - ball, differential

2шт.

12

141367A2

RING

- locking, threaded

2шт.

13

130175A1

BRACKET

- lock

2шт.

14

112486A1

BOLT,Hex, M6 x 12

BOLT - hex, self-locking, special

2шт.

15

130177A1

PIN

- dowel

1шт.

16

130172A1

LARGE PLATE

PLATE - driven, friction, differential housing, 133220A1 front axle and 135973A1 rear axle

8шт.

Выбрано товаров: 20
