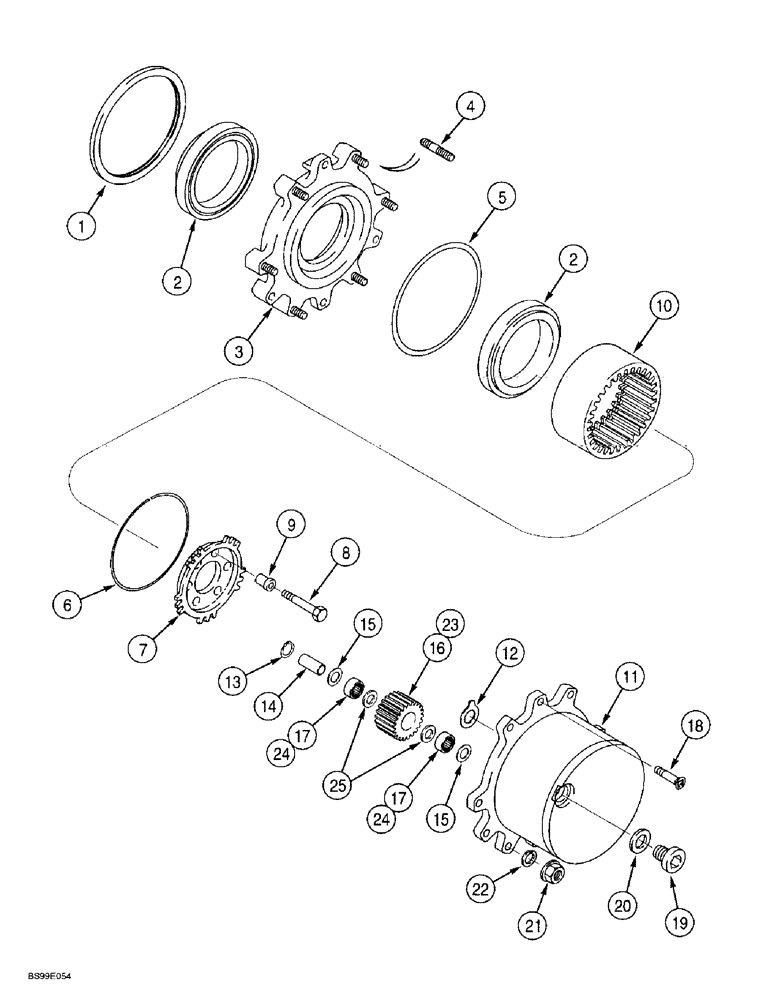

Запчасти Case 560 (6-48) - FRONT AND REAR DRIVE AXLE ASSEMBLIES, PLANETARY AND HUB (06) - POWER TRAIN

H675111

CENTER AXLE

AXLE ASSEMBLY - front and rear drive, parts list Figures 6-40 - 6-52, see Figure 6-30 for mounting and axle identification, no longer available, order 133220A1 axle for front drive and 135973A1 axle for rear drive

2шт.

133220A1

AXLE HOUSING

AXLE ASSEMBLY - front drive, parts list Figures 6-40 - 6-52, see Figure 6-31A for mounting and axle identification, Includes: Ref. 1 - 25

1шт.

135973A1

AXLE

ASSEMBLY - rear drive, parts list Figures 6-40 - 6-52, see Figure 6-31A for mounting and axle identification, Includes: Ref. 1 - 25

1шт.

1

1349265C1

OIL SEAL,149mm ID x 176mm OD x 16mm Thk

- oil, hub, 149 x 176 x 16

2шт.

2

301206A1

TAPERED BEARING

- tapered roller, hub

4шт.

3

112494A1

HUB

- wheel attaching

2шт.

4

100556A1

STUD

- hub, special

12шт.

5

112493A1

O-RING

- wheel hub

2шт.

6

112496A1

RING, LOCKING

RING - backup

2шт.

7

124480A1

RING

CARRIER - ring gear

2шт.

8

116425A1

BOLT

BOLT - hex, self-locking, special

8шт.

9

116426A1

BUSHING

- centering

8шт.

10

112495A1

GEAR, RING

GEAR - ring, planetary

2шт.

11

124481A1

HOUSING

CARRIER - planetary

2шт.

12

1966579C1

WASHER

- thrust

2шт.

13

112504A1

CIRCLIP

RING - snap

6шт.

14

112503A1

SHAFT

- gear

6шт.

15

112501A1

THRUST WASHER

WASHER - thrust, pinion gear, outer

12шт.

16

112498A1

PINION

GEAR - pinion, planetary, H675111 axle, no longer available, order (1) 141370A1 gear, (2) 141371A1 washer and (4) 141368A1 bearings, Ref. 23, 24 and 25

6шт.

17

112502A1

NEEDLE BEARING CAGE

BEARING - needle, planetary gear, H675111 axle

12шт.

18

K395082

SCREW,M8 x 20mm

- special, planetary cover plate

4шт.

19

124482A1

PLUG, DRAIN

PLUG - drain

2шт.

20

115311A1

COPPER WASHER

WASHER - special, copper, 24 x 30 x 1.5 mm

2шт.

21

K395089

WHEEL NUT

- hex, special

12шт.

22

K395083

WASHER,18.5mm ID x 29mm OD x 7mm Thk

- lock, special

12шт.

23

141370A1

SUN GEAR

GEAR - pinion, planetary, 133220A1 front axle and 135973A1 rear axle

6шт.

24

141368A1

NEEDLE BEARING

BEARING - needle, planetary gear, set of 10, uses quantity of 312 bearings, 133220A1 front axle and 135973A1 rear axle

1шт.

25

141371A1

THRUST WASHER

WASHER - thrust, pinion gear, 133220A1 front axle and 135973A1 rear axle

12шт.
