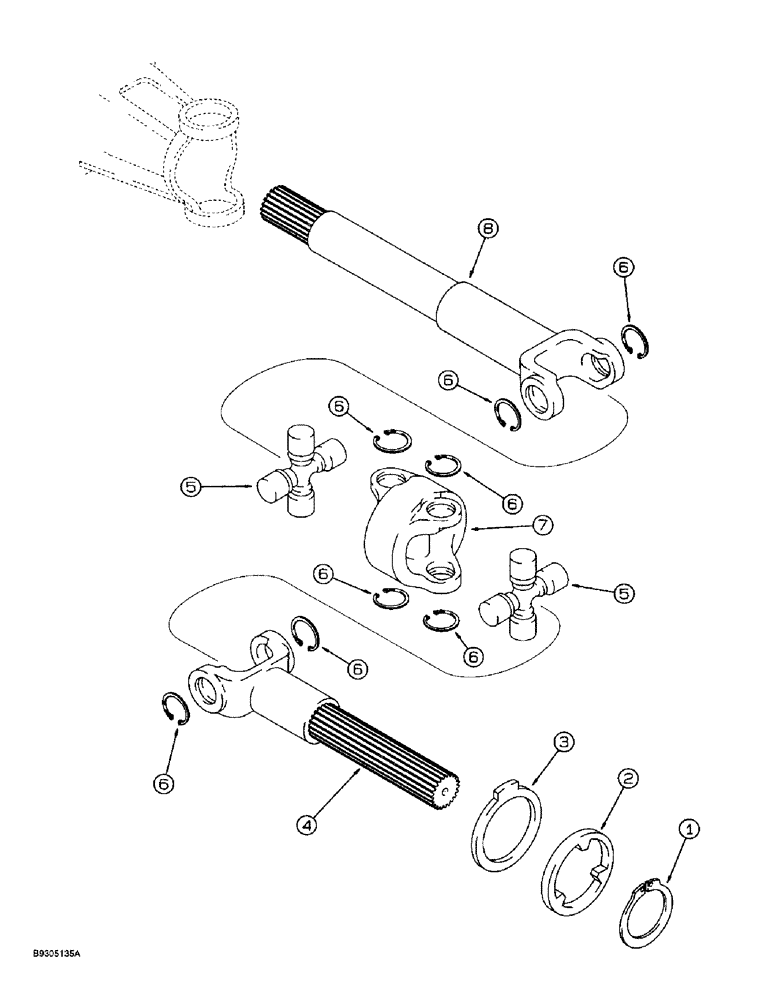

Запчасти Case 560 (6-46) - FRONT AND REAR AXLE ASSEMBLIES, AXLE SHAFTS (06) - POWER TRAIN

H675111

CENTER AXLE

AXLE ASSEMBLY - front and rear drive, parts list Figures 6-40 - 6-52, see Figure 6-30 for mounting and axle identification, no longer available, order 133220A1 axle for front drive and 135973A1 axle for rear drive

2шт.

133220A1

AXLE HOUSING

AXLE ASSEMBLY - front drive, parts list Figures 6-40 - 6-52, see Figure 6-31A for mounting and axle identification, Includes: Ref. 1- 8

1шт.

135973A1

AXLE

ASSEMBLY - rear drive, parts list Figures 6-40 - 6-52, see Figure 6-31A for mounting and axle identification, Includes: Ref, 1- 8

1шт.

1

800-1140

SNAP RING,M40, Ext

Retaining, Replaced 933075R1 M40, Ext

2шт.

2

112489A1

WASHER

WASHER - thrust, axle shaft

2шт.

3

100565A1

WASHER, THRUST

WASHER - thrust

2шт.

130180A1

SHAFT ASSY.

SHAFT ASSEMBLY - axle, front and rear, Includes: Ref. 4 - 8

2шт.

4

124479A1

SHAFT

- axle, wheel side, short

1шт.

5

100546A1

U-JOINT SPIDER

JOINT - universal, axle shaft, cross, Includes: Ref. 6

2шт.

6

100548A1

CIRCLIP

RING - snap, universal joint

4шт.

7

100545A1

BODY

- connecting

1шт.

8

130181A1

SHAFT

- axle, differential side, long

1шт.
