Запчасти Case 560 (6-44) - FRONT AND REAR AXLE ASSEMBLIES, STEERING CYLINDER (06) - POWER TRAIN

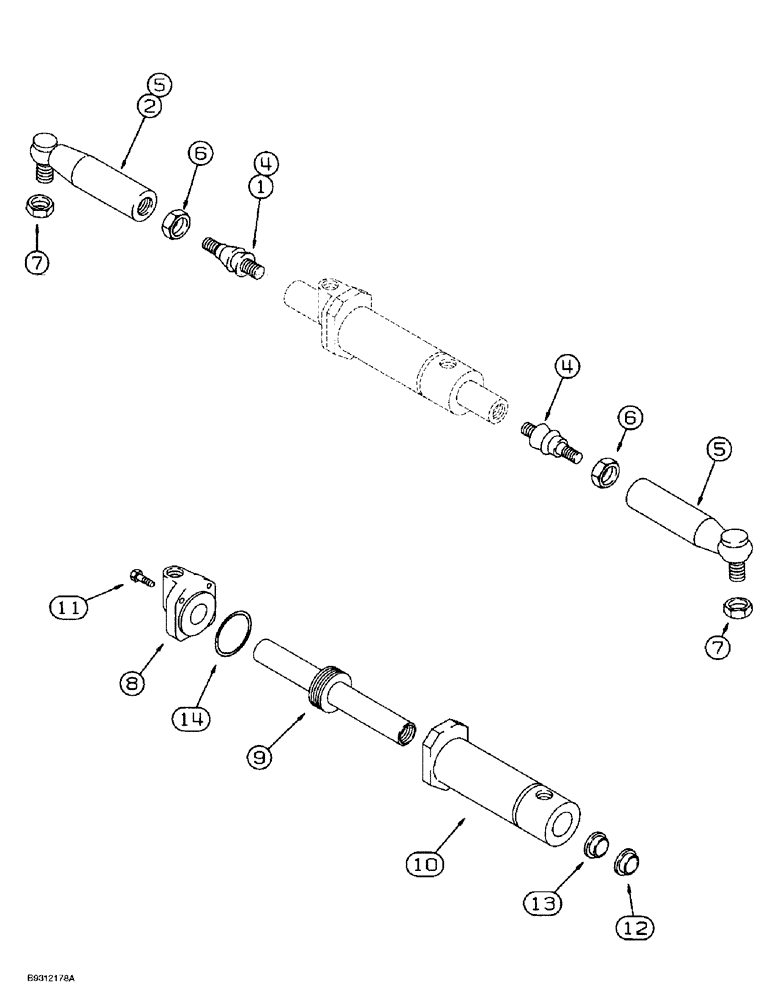

Схема запчастей Case 560 - (6-44) - FRONT AND REAR AXLE ASSEMBLIES, STEERING CYLINDER (06) - POWER TRAIN
4
5
10
6
11
9
5
5
14
6
12
8
13
4
1
7
7

Артикул

Название

Примечание

Количество

H675111

CENTER AXLE

AXLE ASSEMBLY - front and rear drive, parts list Figures 6-40 - 6-52, see Figure 6-31 for mounting and axle identification, no longer available, order 133220A1 axle for front drive and 1359731A1 axle for rear drive

2шт.

133220A1

AXLE HOUSING

AXLE ASSEMBLY - front drive, parts list Figures 6-40 - 6-52, see Figure 6-31A for mounting and axle identification, Includes: Ref. 1 - 14

1шт.

135973A1

AXLE

ASSEMBLY - rear drive, parts list Figures 6-40 - 6-52, see Figure 6-31A for mounting and axle identification, Includes: Ref. 1 - 14

1шт.

130163A1

BALL JOINT

JOINT ASSEMBLY - ball, left-hand thread, if used, see note, Includes: Ref. 1 - 3

1шт.

1

130162A1

BALL JOINT

JOINT - ball, left-hand thread

1шт.

2

130161A1

ROD

- tie, left-hand, steering adjuster

1шт.

3

112507A1

NUT

- hex, left-hand thread, 18 x 1.5 mm

1шт.

130150A1

BALL JOINT

JOINT ASSEMBLY - ball, right-hand thread, see note, Includes: Ref. 4 - 6

1-2шт.

4

130153A1

BALL JOINT

JOINT - ball, right-hand thread

1шт.

5

130152A1

ROD

- tie, steering, adjuster, right-hand

1шт.

6

934727R1

THIN NUT,Thin, M18 x 1.5, Cl 04

- hex, special, right-hand thread

1шт.

7

905839R1

LOCK NUT,M18 x 1.5, Thin

NUT - hex, self-locking, 18 x 1.5 mm

2шт.

130155A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - steering, includes: 130156A1 seal kit, order 130156A1 kit to service seals, see below, Includes: Ref. 8 - 14

1шт.

8

130159A1

GLAND

- cylinder

1шт.

9

130158A1

ROD

- piston

1шт.

10

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

11

NSS

NOT SOLD SEPARAT

BOLT - special, self-locking, gland to steering cylinder

3шт.

12

NSS

NOT SOLD SEPARAT

WIPER - rod

2шт.

Part of Seal Kit, P/N 130156A1

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - rod

2шт.

Part of Seal Kit, P/N 130156A1

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - gland and rod

2шт.

Part of Seal Kit, P/N 130156A1

1шт.

130156A1

SEAL

KIT - seal, steeering cylinder, for rod and gland, Includes: Ref. 12 - 14

1шт.

Выбрано товаров: 24
