Запчасти Case 560 (6-42) - FRONT AND REAR DRIVE AXLE ASSEMBLIES, SWIVEL HOUSING (06) - POWER TRAIN

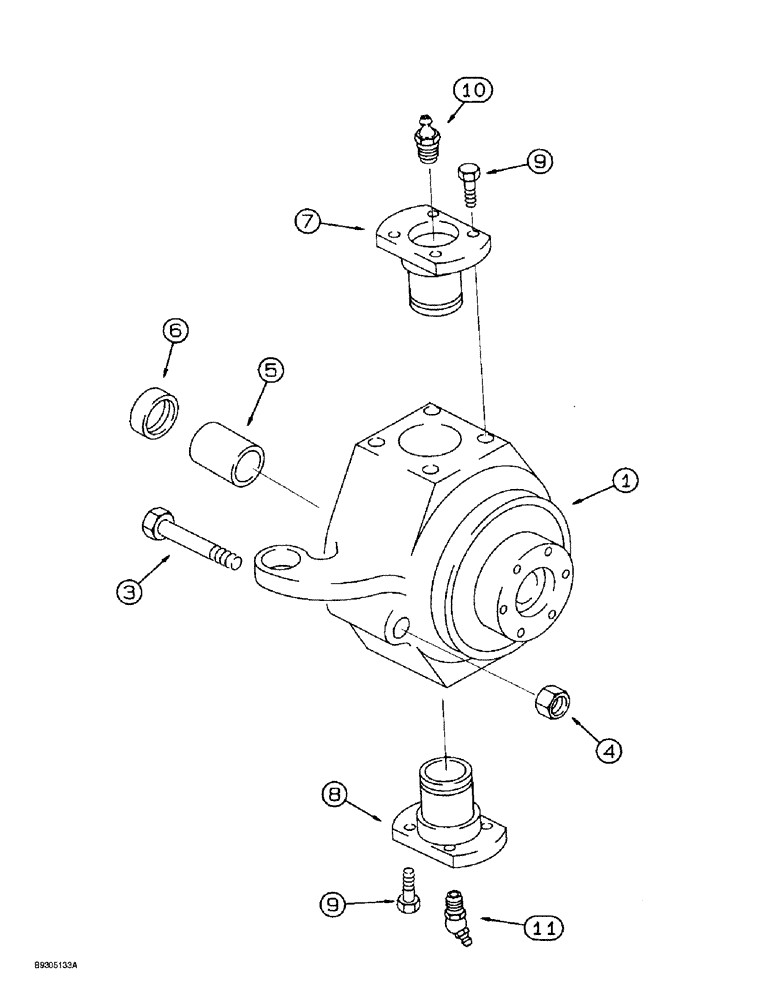

Схема запчастей Case 560 - (6-42) - FRONT AND REAR DRIVE AXLE ASSEMBLIES, SWIVEL HOUSING (06) - POWER TRAIN
7
5
3
11
9
6
8
10
9
1
4

Артикул

Название

Примечание

Количество

H675111

CENTER AXLE

AXLE ASSEMBLY - front and rear drive, parts list figures 6-40 - 6-52, see Figure 6-30 for mounting and axle identification, no longer available, order 133220A1 axle for front drive and 135973A1 axle for rear drive

2шт.

133220A1

AXLE HOUSING

AXLE ASSEMBLY - front drive, parts list Figures 6-40 - 6-52, see Figure 6-31A for mounting and axle identification, Includes: Ref. 1 - 11

1шт.

135973A1

AXLE

ASSEMBLY - rear drive, parts list Figures 6-40 - 6-52, see Figure 6-31A for mounting and axle identification, Includes: Ref. 1 - 11

1шт.

1

130146A1

HOUSING

- swivel, right-hand

1шт.

2

130164A1

HOUSING

- swivel, left-hand, not shown

1шт.

3

112481A1

BOLT

BOLT - special, 16 x 75 mm, steering stop

2шт.

4

85805986

NUT,M16

2шт.

5

K395019

BUSHING

- housing, swivel

2шт.

6

K395103

OIL SEAL

- oil, swivel housing

2шт.

7

130145A1

PIVOT

PIN - king, swivel housing cap, upper

2шт.

8

130148A1

PIVOT

PIN - king, swivel housing cap, lower

2шт.

9

112477A1

BOLT

BOLT - special, self-locking, 12 x 25 mm

16шт.

10

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

NIPPLE, LUBE, , Upper swivel cap M6 x 1, 16mm lg

2шт.

11

105813A1

NIPPLE, LUBE

FITTING - grease, 45 degree, 6 x 1 mm, lower swivel cap

2шт.

Выбрано товаров: 14
