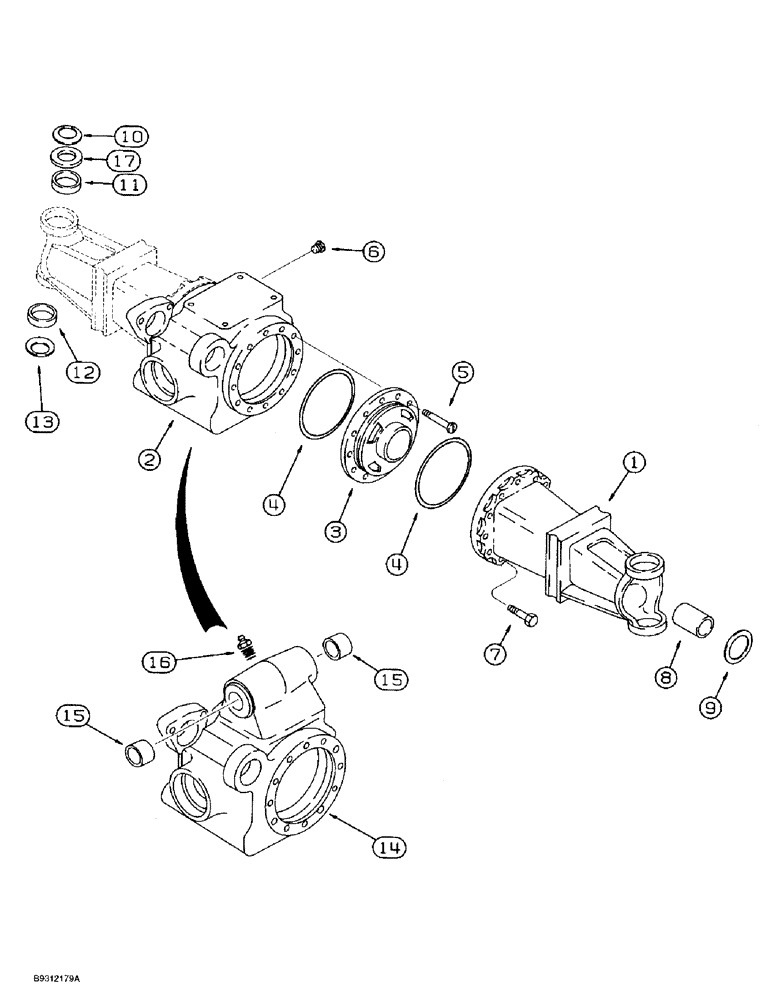

Запчасти Case 560 (6-40) - FRONT AND REAR DRIVE AXLE ASSEMBLIES, AXLE HOUSING (06) - POWER TRAIN

H675111

CENTER AXLE

AXLE ASSEMBLY - front and rear drive, parts list Figures 6-40 - 6-52, see Figure 6-30 for mounting and axle identification, no longer available, order 133220A1 axle for front drive and 135973A1 axle for rear drive

2шт.

133220A1

AXLE HOUSING

AXLE ASSEMBLY - front drive, parts list Figures 6-40 - 6-52, see Figure 6-31A for mounting and axle identification, Includes: Ref. 1 - 13

1шт.

135973A1

AXLE

ASSEMBLY - rear drive, parts list figures 6-40 - 6-52, see Figure 6-31A for mounting and axle identification, Includes: Ref. 1 - 13

1шт.

1

130141A1

HOUSING

- axle support, left-hand and right-hand

2шт.

2

134207A1

HOUSING

- center, H675111 and 135973A1 axles

1шт.

3

130139A1

FLANGE

- housing

2шт.

4

238-5164

O-RING,0.103" Thk x 6.25" ID, -164, Cl 5, 75 Duro

4шт.

5

130140A1

SCREW,M8 x 30mm

- special, flange to center housing

4шт.

6

110782A1

PLUG, DRAIN

PLUG - 24 mm, drain

4шт.

7

130142A1

SCREW,Hex, M12 x 70mm

- hex, 12 x 70 mm, special

24шт.

8

1966186C1

BUSHING

- housing

2шт.

9

1966191C1

OIL SEAL

- oil

2шт.

10

122270A1

BELLEVILLE WASHER,36mm ID x 71mm OD x 2mm Th

- Belleville, upper

2шт.

11

100522A1

BUSHING

- housing, upper

2шт.

12

100520A1

SPHERICAL BEARING,25mm ID x 47mm OD x 15mm W

- spherical, lower, replaced 130194A1

2шт.

13

122268A1

BELLEVILLE WASHER

- Belleville, lower

2шт.

14

141364A1

HOUSING

- center, 135973A1 axle

1шт.

14

134207A1

HOUSING

- center, 133220A1 axle

1шт.

15

141363A1

BUSHING

- housing, 135973A1 axle

2шт.

16

933781R1

LUBE NIPPLE,M10 x 1

NIPPLE, LUBE, , Center Housing, 133220A1 Axle M10 x 1

1шт.

16a

933731R91

LUBE NIPPLE,45 Degree, M10 x 1

FITTING - grease, 45 degree, 10 mm, center housing, 135973A1 axle, not shown

1шт.

17

136990A1

WASHER

WASHER - spacer, 133220A1 and 135973A1 axles

2шт.
