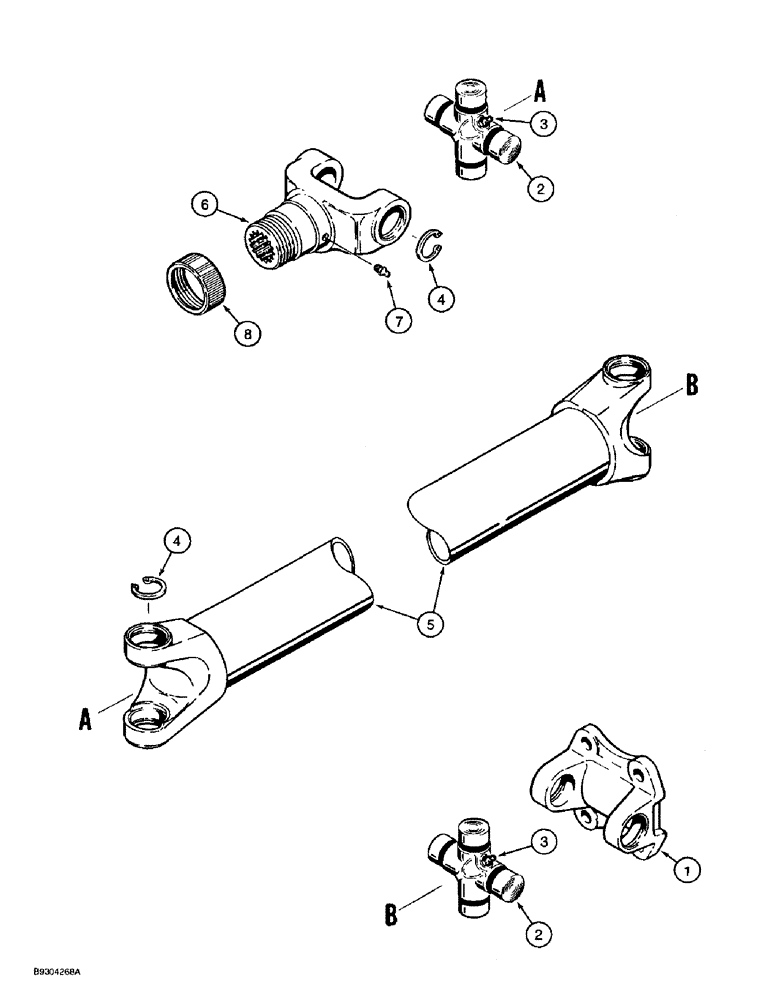

Запчасти Case 560 (6-38) - FRONT AND REAR DRIVE SHAFT ASSEMBLY - 104099A1 (06) - POWER TRAIN

104099A1

SHAFT

ASSEMBLY - drive, front and rear, see Figure 6-30 for mounting, no longer available, see note, Includes: Ref. 1 - 8

2шт.

Order 135571A1 drive shaft, Figure 6-31A, Ref. 10 - 10D, 138422A1 flange, Figure 6-52, Ref. 14, (4) 863-12030 hex socket bolts and (4) 892-11012 lock, Fig. 6-31A, Ref. 11 and 12

1шт.

1

122250A1

FORK

BRACKET - flange

1шт.

2

H584813

BEARING

JOINT - universal, Includes: Ref. 3 and 4

2шт.

3

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4-28 taper x 11/16 inch

1шт.

4

11256

SNAP RING

- retaining, bearing

4шт.

5

128339A1

SHAFT

- drive, front and rear

1шт.

6

H438701

FORK

YOKE - drive shaft

1шт.

7

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4-28 taper x 11/16 inch

1шт.

8

H674826

CAP

- dust seal retaining

1шт.
