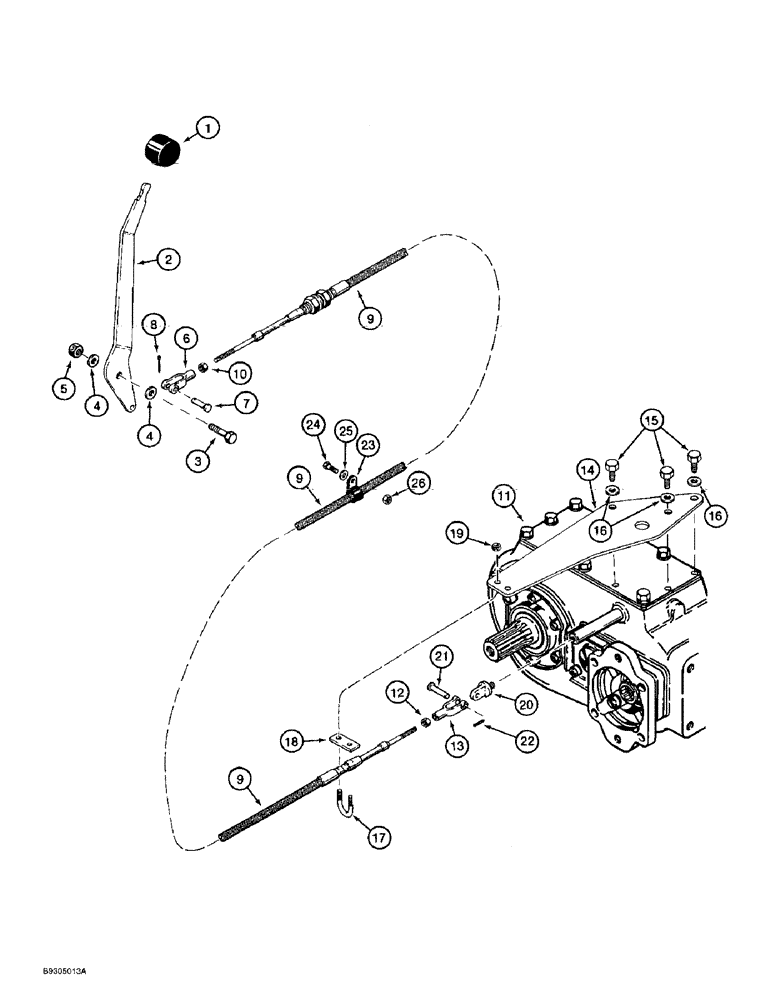

Запчасти Case 560 (6-32) - TRANSMISSION SHIFT CONTROL (06) - POWER TRAIN

1

A177438

KNOB

- transmission control lever

1шт.

2

H438602

HANDLE

LEVER - control, transmission

1шт.

3

H127324

BOLT

- hex, 3/8 NF x 1-1/8 inch, grade 8

1шт.

4

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

5

131-1326

JAM NUT,Jam, 3/8"-24

NUT - hex, jam, self-locking, 3/8 inch NF

1шт.

6

213-124

ADJUSTABLE CLEVIS,1/4"-28

CLEVIS - adjustable, 1/4 inch NF

1шт.

7

427-4077

CLEVIS PIN,1/4" x .770"

PIN, CLEVIS, , Hardened 1/4" x .770"

1шт.

8

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

9

114485A1

CABLE

- transmission shift

1шт.

10

425-154

JAM NUT,Jam, 1/4"-28, G5

- hex, jam, 1/4 inch NF

1шт.

11

112558A2

CASE

TRANSMISSION ASSEMBLY - ground drive, parts list Figure 6-34

1шт.

12

425-154

JAM NUT,Jam, 1/4"-28, G5

- hex, jam, 1/4 inch NF

1шт.

13

213-124

ADJUSTABLE CLEVIS,1/4"-28

CLEVIS - adjustable, 1/4 inch NF

1шт.

14

106406A1

BRACKET

- cable mounting

1шт.

15

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

16

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

3шт.

17

H166421

HARDWARE

U-BOLT - 1/4 inch NC, cable retaining

1шт.

18

H373779

LARGE PLATE

SPACER - cable

1шт.

19

232-4114

LOCK NUT,1/4"-20, GC

NUT, LOCK, 1/4"-20, GC

2шт.

20

H317206

BOLT

- 5/16 NF x 1-1/4 inch

1шт.

21

427-4077

CLEVIS PIN,1/4" x .770"

PIN, CLEVIS, , Hardened 1/4" x .770"

1шт.

22

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

23

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type, Closed 1/2", Insul, 3/8" Bolt

1шт.

24

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

25

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

1шт.

26

231-5146

FLANGE NUT,3/8"-16

1шт.
