Запчасти Case 560 (6-26) - TANDEM PUMP DRIVE (06) - POWER TRAIN

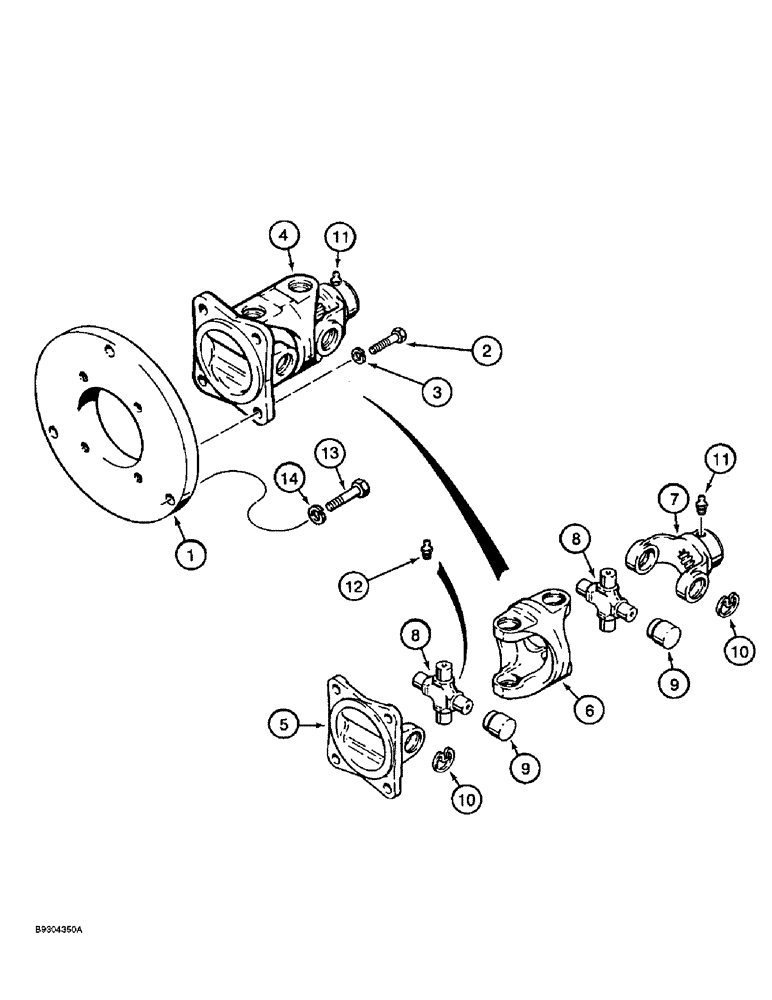

Схема запчастей Case 560 - (6-26) - TANDEM PUMP DRIVE (06) - POWER TRAIN
1
11
11
6
3
8
9
8
12
4
10
9
13
5
7
2
10
14

Артикул

Название

Примечание

Количество

1

105582A1

LARGE PLATE

PLATE - pump drive

1шт.

2

514-730

BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

3шт.

3

892-11010

LOCK WASHER,M10

3шт.

4

H435187

SHAFT

JOINT ASSEMBLY - universal, drive shaft, pump drive, Includes: Ref. 5 - 12

1шт.

5

D70624

YOKE

- flanged, engine end

1шт.

6

D70626

YOKE

CARRIER - universal joint assembly

1шт.

7

H435903

YOKE

YOKE - end, pump end

1шт.

D70629

U-JOINT SPIDER

KIT - universal joint, Includes: Ref. 8 - 11

2шт.

8

NSS

NOT SOLD SEPARAT

CROSS - universal

1шт.

9

NSS

NOT SOLD SEPARAT

BEARING - universal

4шт.

10

11256

SNAP RING

- retaining, bearing

4шт.

11

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4-28 taper x 11/16 inch

1шт.

12

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

13

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

4шт.

14

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

Выбрано товаров: 15
