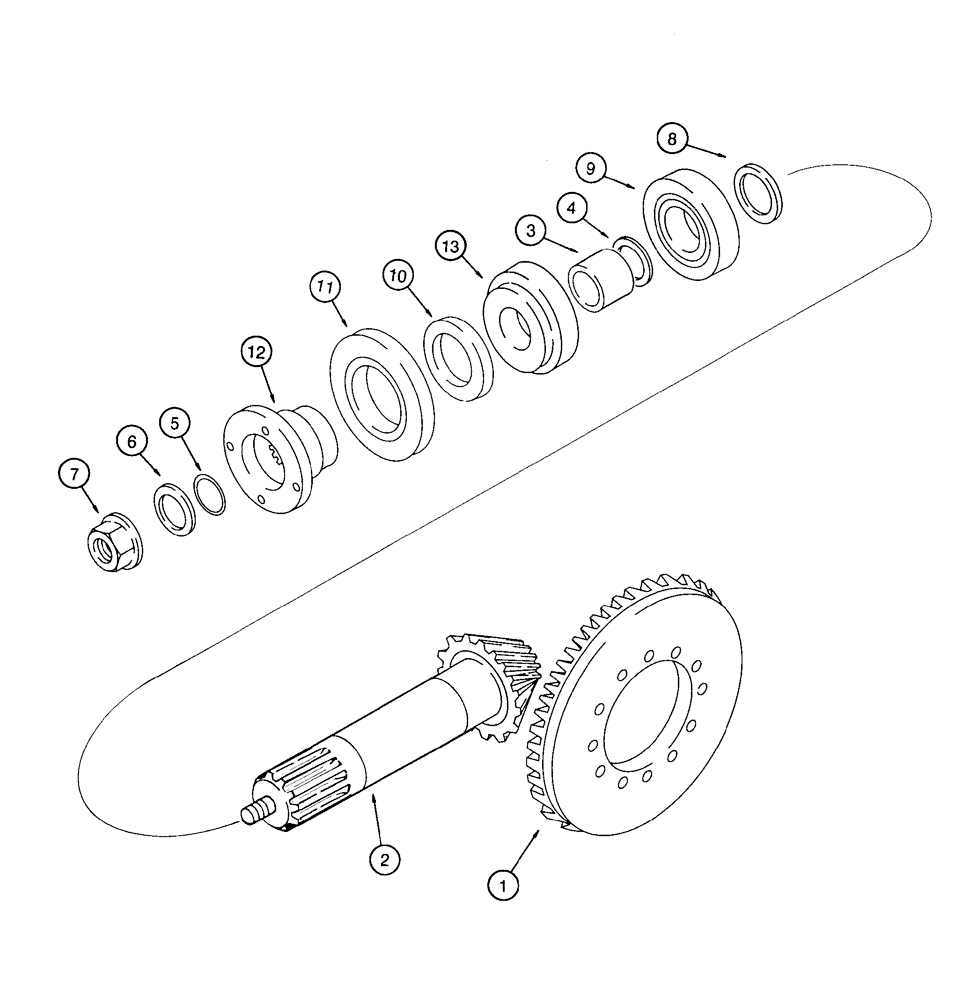

Запчасти Case 460 (6-68) - REAR STEERABLE AXLE ASSEMBLY, 141854A1, RING AND PINION GEAR SET (06) - POWER TRAIN

141854A1

AXLE HOUSING

AXLE ASSEMBLY - rear steerable, 5.38 gear ratio, option, parts list figures 6-58 through 6-70, see figure 6-30 for axle mounting, includes: Refs. 1 - 13

1шт.

196393A1

PIN

GEAR - set, ring and pinion, 5.38 gear ratio, has 21 splines on nut end of pinion, see figure 6-47A for components, if used, includes: Refs. 1 - 7

1шт.

228159A1

GEAR-SET

GEAR - set, ring and pinion, 5.38 gear ratio, has 23 splines on nut end of pinion, if used, includes: Refs. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

GEAR - ring, differential

1шт.

2

NSS

NOT SOLD SEPARAT

GEAR - pinion, differential

1шт.

3

196462A1

SPACER

- bearing, 70 mm thick, if used, was 228143A1

1шт.

3

196451A1

SPACER

- bearing, 70.025 mm thick, if used, was 196455A1

1шт.

4

196452A1

SHIM

- 0.10 mm thick, bearing, was 228144A1

1шт.

4

196453A1

SHIM

- 0.25 mm thick, bearing, was 228147A1

1шт.

4

196454A1

SHIM,0.5mm Thk

- 0.50 mm thick, bearing, was 228146A1

1шт.

5

238-8219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 8, 90 Duro

- 1-5/16 ID x 1/8 inch wide, if used, in kit

1шт.

5

238-8217

O-RING,0.139" Thk x 1.171" ID, -217, Cl 8, 90 Duro

If used, not in kit -217, Cl 8, 1.171" ID x .139" Thk

1шт.

6

196464A1

THRUST WASHER

- thrust, was 138800A1

1шт.

7

196463A1

NUT

- flanged, pinion gear

1шт.

8

140954A1

SHIM,2.50mm Thk

(0.098"), Bearing, if used 2.50mm Thk

1шт.

8

140953A1

SHIM,2.60mm Thk

(0.102"), Bearing, if used 2.60mm Thk

1шт.

8

140951A1

SHIM,2.70mm Thk

(0.106"), Bearing, if used 2.70mm Thk

1шт.

8

140949A1

SHIM,2.80mm Thk

(0.110"), Bearing, if used 2.80mm Thk

1шт.

8

140948A1

SHIM,2.90mm Thk

(0.114"), Bearing, if used 2.90mm Thk

1шт.

8

140943A1

SHIM,3.00mm Thk

(0.118"), Bearing, if used 3.00mm Thk

1шт.

8

140944A1

SHIM,3.10mm Thk

(0.122"), Bearing, if used 3.10mm Thk

1шт.

8

140945A1

SHIM,3.20mm Thk

(0.125"), Bearing, if used 3.20mm Thk

1шт.

8

140946A1

SHIM,3.30mm Thk

(0.129"), Bearing, if used 3.30mm Thk

1шт.

8

140947A1

SHIM,3.40mm Thk

(0.133"), Bearing, if used 3.40mm Thk

1шт.

9

K395090

TAPERED BEARING,40mm ID x 90mm OD

BEARING, ROLLER, TAPERED, Replaces 140956A1

1шт.

10

138802A1

OIL SEAL

SEAL - oil, 50 x 80 x 12 mm, if used

1шт.

10

196395A1

OIL SEAL

SEAL - oil, 60 x 90 x 13 mm, if used

1шт.

11

196394A1

CUP

- bearing, was 138801A1

1шт.

12

138836A1

FLANGE

- differential, 21 splines, if used

1шт.

12

196396A1

FLANGE

- differential, 23 splines, if used

1шт.

13

3232726R91

TAPERED BEARING

- tapered roller, if used, smaller than Ref. 9

1шт.

13

K395090

TAPERED BEARING,40mm ID x 90mm OD

BEARING, ROLLER, TAPERED, if used, same bearing as Ref. 9

1шт.
