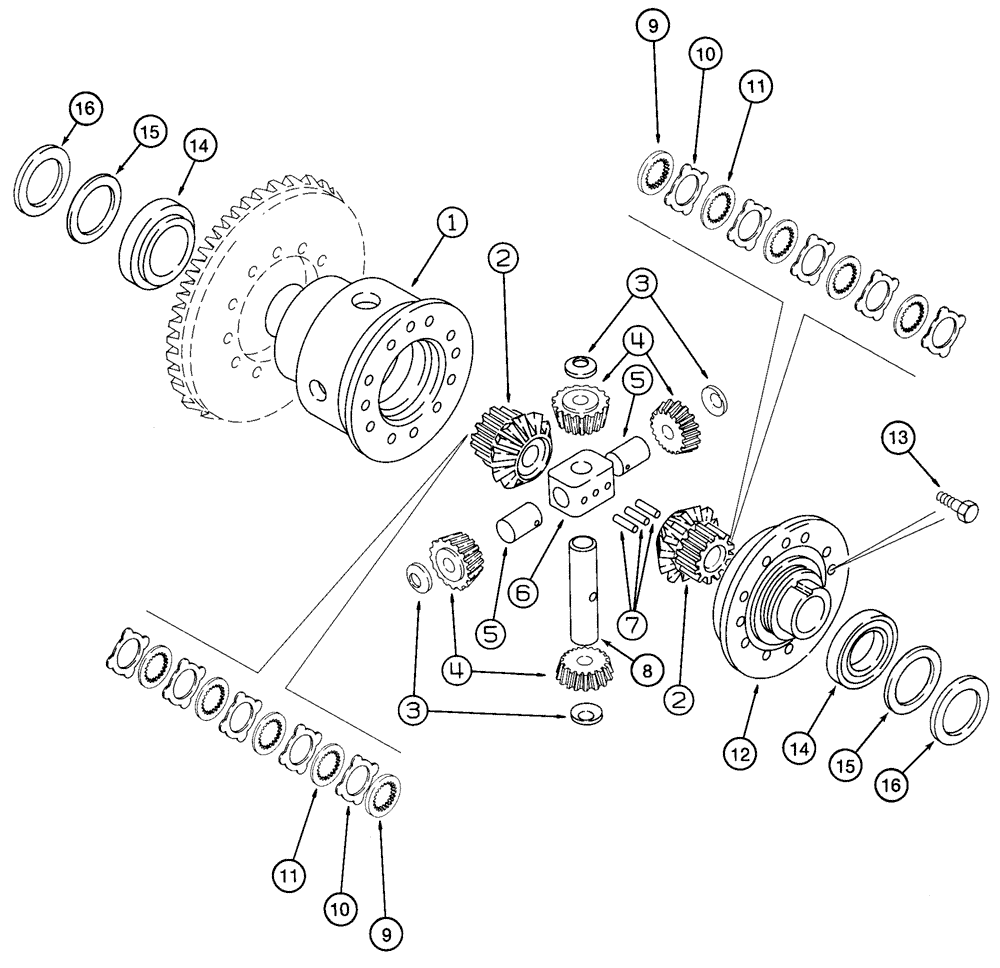

Запчасти Case 460 (6-67A) - REAR STEERABLE AXLE ASSEMBLY, 141854A1, LATE PRODUCTION DIFFERENTIAL (06) - POWER TRAIN

141854A1

AXLE HOUSING

AXLE ASSEMBLY - rear steerable, 5.38 gear ratio, option, parts list figures 6-58 through 6-70, see figure 6-30 for axle mounting, includes: Refs. 1 - 16

1шт.

1

196397A1

HOUSING

- differential

1шт.

231989A1

GEAR

KIT - differential gear, includes: Refs. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

GEAR - side, pinion, differential

2шт.

3

138805A1

THRUST WASHER

WASHER - thrust, pinion gear

4шт.

4

NSS

NOT SOLD SEPARAT

GEAR - pinion, differential

4шт.

5

138806A1

SHAFT

- pinion gear, short

2шт.

6

138815A1

DIFF. SPIDER

SPIDER - pinion gear shaft

1шт.

7

303182A1

PIN

- roll, 6 x 20 mm, spider, replaces 139111A1

3шт.

8

138817A1

SHAFT

- pinion gear

1шт.

9

1966154C1

PLATE

- backing

2шт.

10

1966155C1

PLATE

- drive, friction

10шт.

11

1966156C1

WASHER

PLATE - driven, friction

8шт.

12

196398A1

COVER

- differential housing, was 138816A1

1шт.

13

100533A1

BOLT,Self-Lock, M12 x 30mm

- hex, special, 12 - 1.75 x 30 mm, prior to axle Ser. No. 278 used with 228159A1 gear set on 141854A1 axle.

12шт.

13

302372A1

BOLT,M12 x 1.25 x 30mm, Gr 12.9

- hex, special, 12 - 1.25 x 30 mm, axle Ser. No. 278 and after used with 228159A1 gear set on 141854A1 axle, see figure 6-68

12шт.

14

K395027

TAPERED BEARING

BEARING, ROLLER, TAPERED, Differential, Inner and outer

2шт.

15

1966882C1

SHIM

- 0.05 mm thick, bearing, if used

1шт.

15

K260147

SPACER

SHIM - 0.1 mm thick, bearing, if used

1шт.

15

1967516C1

SHIM

- 0.3 mm thick, bearing, if used

1шт.

15

1967517C1

SHIM

- 0.5 mm thick, bearing, if used

1шт.

16

196411A1

SHIM

- 4.5 mm thick, bearing, if used

1шт.

16

196401A1

SHIM

- 4.6 mm thick, bearing, if used

1шт.

16

196402A1

SHIM

- 4.7 mm thick, bearing, if used

1шт.

16

196403A1

SHIM

- 4.8 mm thick, bearing, if used

1шт.

16

196404A1

SHIM

- 4.9 mm thick, bearing, if used

1шт.

16

196405A1

SHIM

- 5.0 mm thick, bearing, if used

1шт.

16

196406A1

SHIM

- 5.1 mm thick, bearing, if used

1шт.

16

196407A1

SHIM

- 5.2 mm thick, bearing, if used

1шт.

16

196408A1

SHIM

- 5.3 mm thick, bearing, if used

1шт.

16

196410A1

SHIM

- 5.4 mm thick, bearing, if used

1шт.
