(6-64) - REAR STEERING AXLE ASSEMBLY, 141854A1, AXLE SHAFTS

Запчасти Case 460 (6-64) - REAR STEERING AXLE ASSEMBLY, 141854A1, AXLE SHAFTS (06) - POWER TRAIN

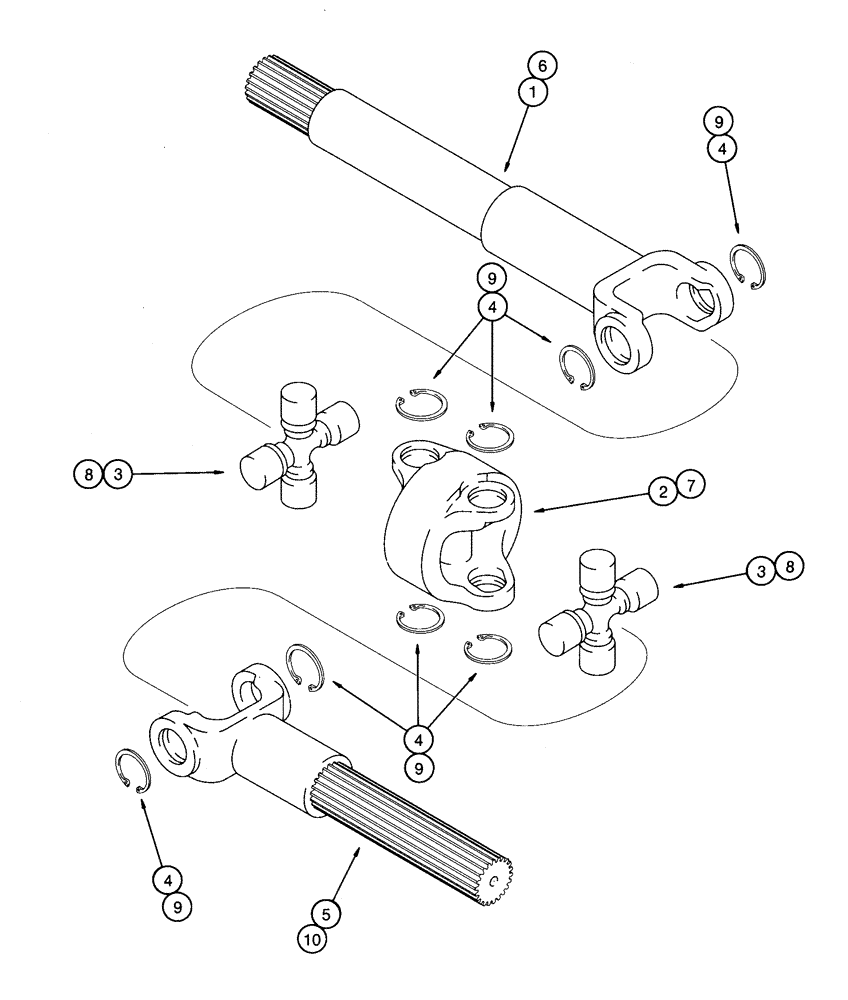

Схема запчастей Case 460 - (6-64) - REAR STEERING AXLE ASSEMBLY, 141854A1, AXLE SHAFTS (06) - POWER TRAIN
1
9
4
3
9
9
2
9
8
4
8
7
5
10
6
4
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

141854A1

AXLE HOUSING

AXLE ASSEMBLY - rear steerable, 5.38 gear ratio, option, parts list figures 6-58 through 6-70, see figure 6-30 for axle mounting, includes: Refs. 1 - 10

1шт.

196447A1

DRIVE SHAFT

SHAFT ASSEMBLY - axle, left-hand, includes: Refs. 1 - 5

1шт.

1

228149A1

SHAFT

- half, differential side

1шт.

2

228150A1

BODY

- connecting

1шт.

3

224037A1

DIFF. SPIDER

JOINT - universal, axle shaft, includes: Ref. 4

1шт.

4

NSS

NOT SOLD SEPARAT

RING - snap, universal joint

4шт.

5

224035A1

SHAFT

- half, wheel side

1шт.

196448A1

DRIVE SHAFT

SHAFT ASSEMBLY - axle, right-hand

1шт.

6

228148A1

SHAFT

- half, differential side

1шт.

7

228150A1

BODY

- connecting

1шт.

8

224037A1

DIFF. SPIDER

JOINT - universal, axle shaft, includes: Ref. 9

1шт.

9

NSS

NOT SOLD SEPARAT

RING - snap, universal joint

4шт.

10

224035A1

SHAFT

- half, wheel side

1шт.
