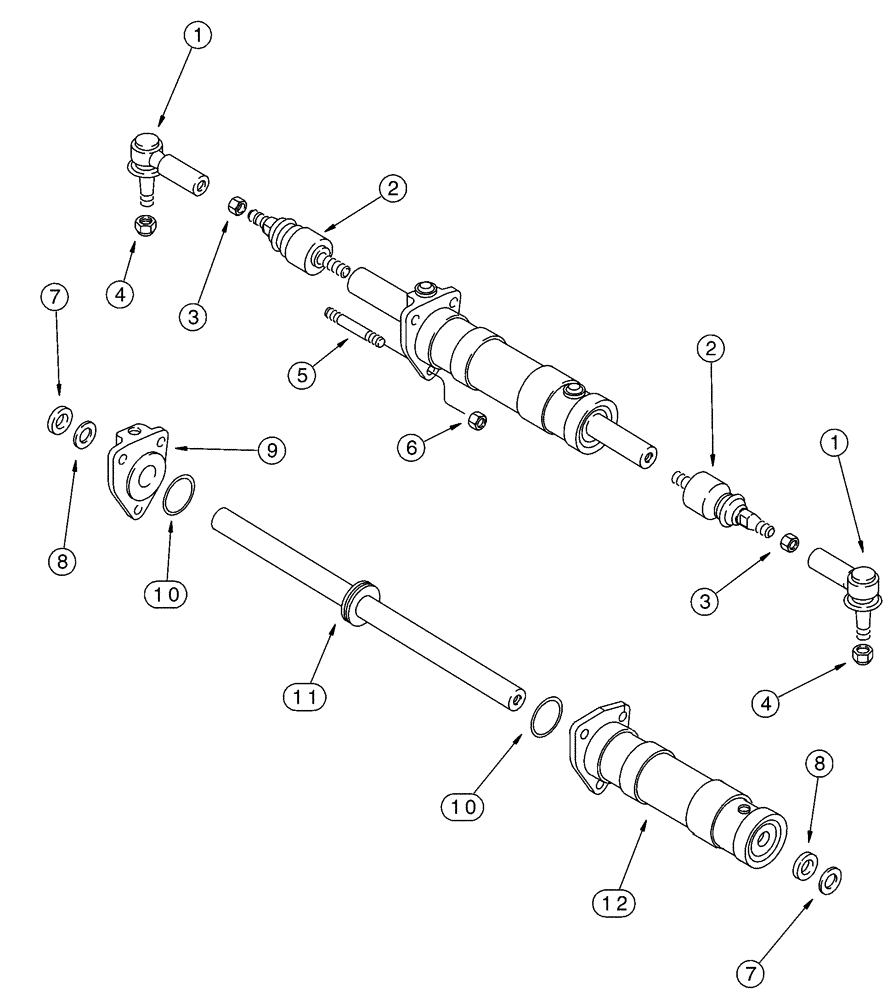

Запчасти Case 460 (6-62) - REAR STEERABLE AXLE ASSEMBLY, 141854A1, STEERING CYLINDER MOUNTING AND ASSEMBLY (06) - POWER TRAIN

141854A1

AXLE HOUSING

AXLE ASSEMBLY - rear steerable, 5.38 gear ratio, option, parts list figures 6-58 through 6-70, see figure 6-30 for axle mounting, includes: Refs. 1 - 12

1шт.

196445A1

TIE-ROD

ROD ASSEMBLY - tie, includes: Refs. 1 - 3

2шт.

1

135824A1

BALL JOINT

JOINT - ball, right-hand thread

1шт.

2

130153A1

BALL JOINT

JOINT - steering adjuster

1шт.

3

934727R1

THIN NUT,Thin, M18 x 1.5, Cl 04

- hex, special, right-hand thread

1шт.

4

905839R1

LOCK NUT,M18 x 1.5, Thin

NUT - hex, self-locking, 18 x 1.5 mm

2шт.

5

196450A1

BOLT

STUD - special, gland to steering cylinder

3шт.

6

905834R1

THIN NUT,M12 x 1.25, Thin

NUT - hex, self-locking, 12 x 1.25 mm

3шт.

196446A1

CYLINDER

ASSEMBLY - steering, see 130156A1seal kit below, includes: Refs. 7 - 12

1шт.

7

NSS

NOT SOLD SEPARAT

WIPER - rod

2шт.

Part of Seal Kit P/N 130156A1

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - rod

2шт.

Part of Seal Kit P/N 130156A1

1шт.

9

130159A1

GLAND

- cylinder

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - gland and rod

2шт.

Part of Seal Kit P/N 130156A1

1шт.

11

130158A1

ROD

- piston

1шт.

12

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

130156A1

SEAL

KIT - , includes 7, 8, and 10

1шт.
