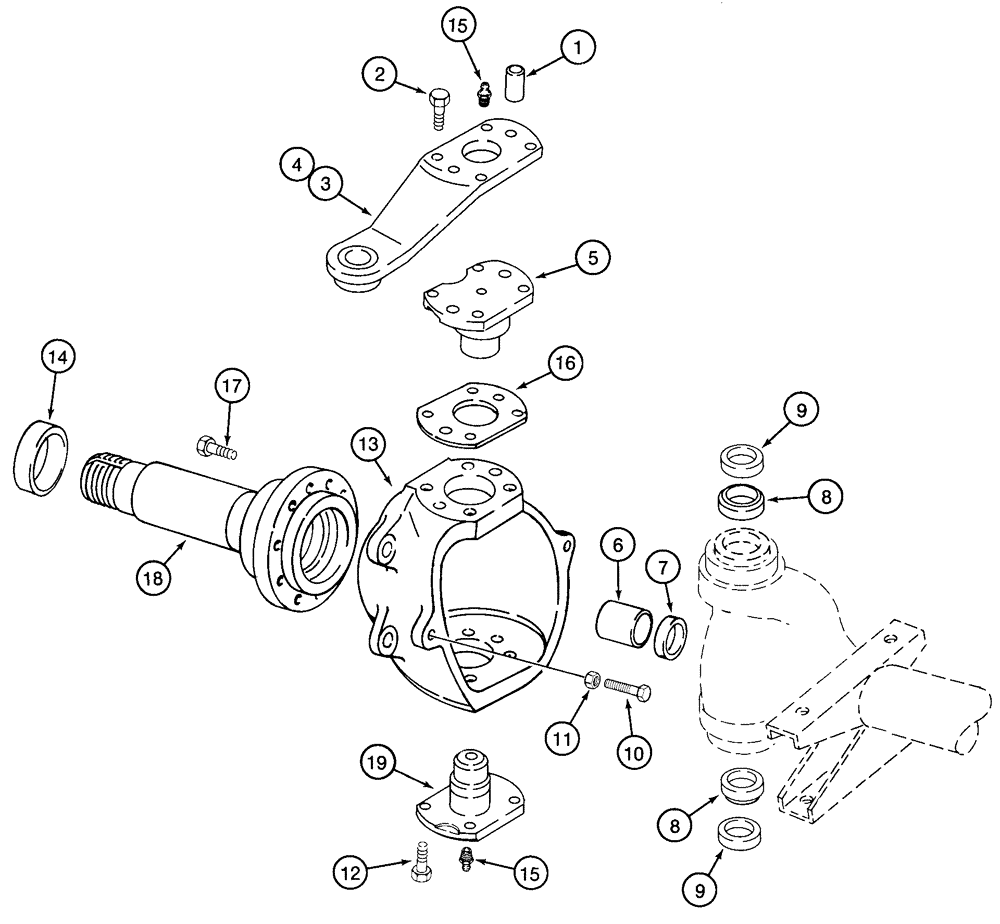

Запчасти Case 460 (6-60) - REAR STEERABLE AXLE ASSEMBLY, 141854A1, SWIVEL HOUSING (06) - POWER TRAIN

141854A1

AXLE HOUSING

AXLE ASSEMBLY - rear steerable, 5.38 gear ratio, option, parts list figures 6-58 through 6-70, see figure 6-30 for axle mounting, includes: Refs. 1 - 19

1шт.

1

P1136017B

LUG

PIN - dowel, 14 x 40 mm

4шт.

2

P3533087M

BOLT

- special, 14 - 2.0 x 40 mm, class 12.9

8шт.

3

196383A1

BRACKET

- mounting, left-hand, kingpin

1шт.

4

196384A1

SUPPORT

BRACKET - mounting, right-hand, kingpin

1шт.

5

196385A1

AXLE PIN

KINGPIN - swivel housing, upper

2шт.

6

138785A1

BUSHING

- swivel housing

2шт.

7

138787A1

OIL SEAL

- oil, swivel housing

2шт.

8

196389A1

BALL BEARING

BEARING - axle housing, upper and lower

4шт.

9

K395039

SEAL

- bearing, upper and lower

4шт.

10

196441A1

BOLT

- steering stop, special

2шт.

11

K965369

JAM NUT

- hex, special, 12 mm

2шт.

12

196390A1

BOLT,M14 x 30mm, Cl 10.9

- hex, special

8шт.

13

196391A1

HOUSING

- swivel

2шт.

14

138792A1

RING

- wear, swivel housing

2шт.

15

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

NIPPLE, LUBE, , Special M6 x 1, 16mm lg

4шт.

16

196386A1

SHIM

- kingpin, 0.1 mm thick

1шт.

16

196387A1

SHIM

- kingpin, 0.19 mm thick

1шт.

16

196388A1

SHIM

- kingpin, 0.35 mm thick

1шт.

17

196399A1

BOLT,M10 x 25mm, Cl 10.9

- special, 10 - 1.5 x 25 mm, class 10.9

20шт.

18

196400A1

FLANGE

- axle

2шт.

19

301209A1

PIN

KINGPIN - swivel housing, lower

2шт.
