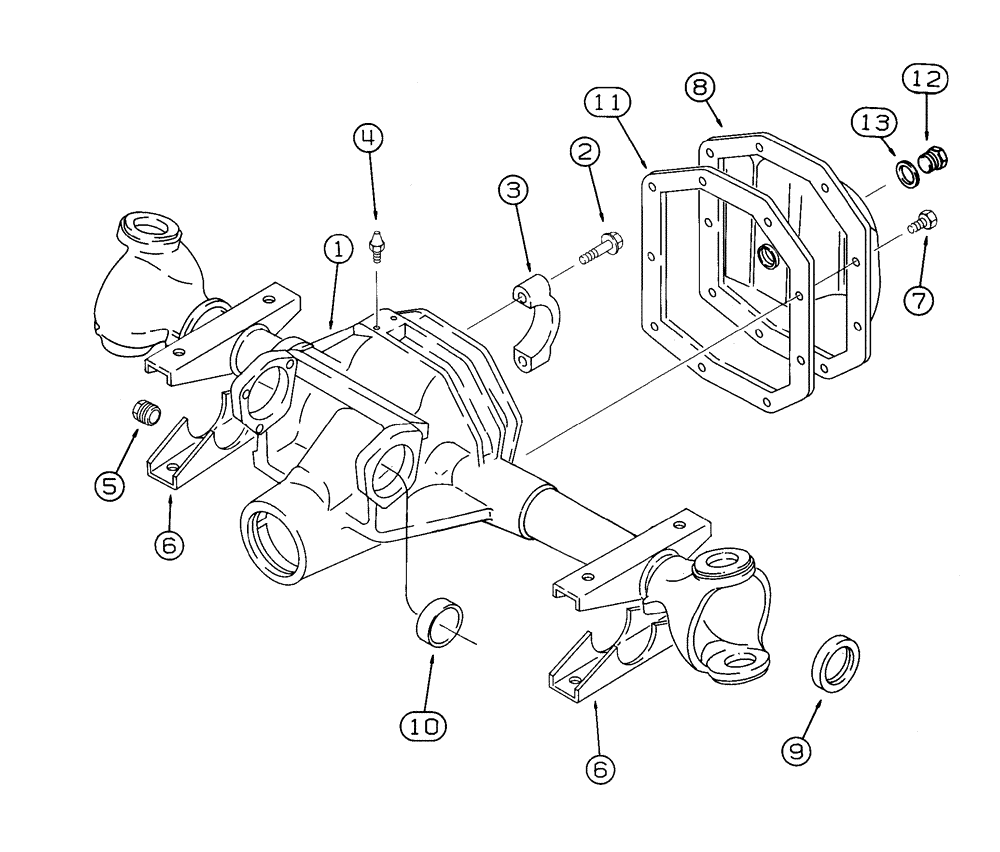

Запчасти Case 460 (6-58) - REAR STEERABLE AXLE ASSEMBLY, 141854A1, AXLE HOUSING (06) - POWER TRAIN

141854A1

AXLE HOUSING

AXLE ASSEMBLY - rear steerable, 5.38 gear ratio, option, parts list figures 6-58 through 6-70, see figure 6-30 for axle mounting, includes: Refs. 1 - 14

1шт.

196444A1

HOUSING

ASSEMBLY - axle, hole centerlines in mounting brackets are spaced 610 mm apart, if used, includes: Refs. 1 - 3

1шт.

196382A1

HOUSING

ASSEMBLY - axle, hole centerlines in mounting brackets are spaced 458 mm apart, if used, includes: Refs. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - axle

1шт.

2

138774A1

BOLT,Self Lkg, Hex, M12 x 70mm, Cl 10.9

- hex, self-locking

4шт.

3

NSS

NOT SOLD SEPARAT

CAP - differential bearing

2шт.

4

1966149C2

BREATHER

- axle housing

1шт.

5

A156873

PLUG, DRAIN,M22 x 1.5

1шт.

6

128567A1

PAD

- axle mounting, not shipped with axle

2шт.

7

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm, with Ref 11 gasket

9шт.

7

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 12 mm, with Ref 14 liquid gasket

9шт.

292244A1

COVER

KIT - differential cover, includes sealant ref 14 below, includes: Ref. 8

1шт.

8

230518A1

COVER

- differential

1шт.

9

1967604C1

OIL SEAL

SEAL - oil, axle housing

2шт.

10

196449A1

SPACER

- cylinder mounting

1шт.

11

224032A1

GASKET

- cover to axle housing, if used

1шт.

12

A156873

PLUG, DRAIN,M22 x 1.5

Straight thread, with magnet, if used, not shown M22 x 1.5

1шт.

12

301208A1

KIT

PLUG ASSEMBLY - drain, with seal, as shown, if used, includes: Ref. 13

1шт.

13

301207A1

O-RING

SEAL - ring, drain plug

1шт.

14

B17575

FLUID

SEALANT - black RTV silicone, 89 ml (3 ounce) tube, not shown

1шт.
