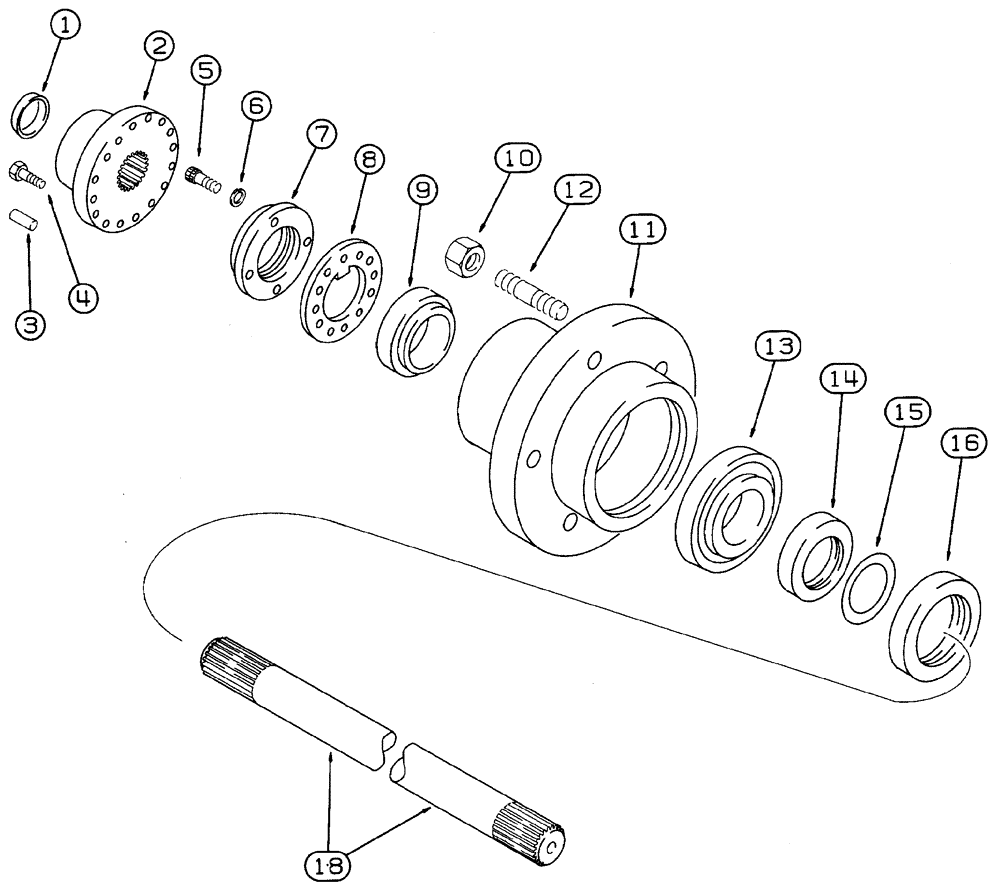

Запчасти Case 460 (6-56) - REAR RIGID AXLE ASSEMBLIES, 126102A1 AND 139020A1, WHEEL HUBS AND HALF SHAFTS (06) - POWER TRAIN

126102A1

AXLE

ASSEMBLY - rear rigid, 4.88 gear ratio, not servailable for service, order 139020A1 axle assembly, see figure 6-30 for mounting, includes: Refs. 1 - 18, Serial Range: -JAF0117840

1шт.

If a complete axle assembly is ordered for a machine with a 4.88 gear ratio, a 5.38 gear ratio ring and pinion gear set (part number 138798A1) for the front axle must be ordered and installed to match the gear ratio of the new rear axle.

1шт.

139020A1

AXLE

ASSEMBLY - rear rigid, 5.38 grar ratio, parts list figures 6-50 through 6-56, see figure 6-30 for axle mounting, includes: Refs. 1 - 18, Start Serial: JAF0117840

1шт.

1

138819A1

PLUG

- flange

2шт.

2

138839A1

FLANGE

- wheel hub

2шт.

3

139112A1

PIN,8mm OD x 26mm L

- dowell, 8 x 26 mm

4шт.

4

861-8025

HEX SOC SCREW,M8 x 25mm, Cl 12.9

SCREW - hex socket, 8 - 1.25 x 25 mm, class 12.9

28шт.

6

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

7

138822A1

RING

NUT - bearing lock

2шт.

8

138823A1

WASHER

- bearing lock

2шт.

9

139115A1

BALL BEARING

- ball, outer

2шт.

10

139118A1

NUT

- hex, special, 10 - 1.5 mm

10шт.

138824A1

HUB

ASSEMBLY - wheel attaching, includes: Refs. 11 and 12

2шт.

11

NSS

NOT SOLD SEPARAT

HUB - wheel attaching, 109 mm OD, wheel end

1шт.

12

K205125

STUD

- wheel attaching

5шт.

13

138825A1

BALL BEARING

- ball, inner

2шт.

14

138842A1

BUSHING

- inner bearing

2шт.

15

238-5229

O-RING,0.139" Thk x 2.359" ID, -229, Cl 5, 75 Duro

- 2-3/8 ID x 1/8 inch wide

1шт.

16

230517A1

OIL SEAL

SEAL - 75 x 95 x 10 mm, replaces 138828A1

2шт.

17

138844A1

SHAFT

- half, short, right-hand, not shown

1шт.

18

138846A1

LONG SHAFT

SHAFT - half, long, left-hand

1шт.
