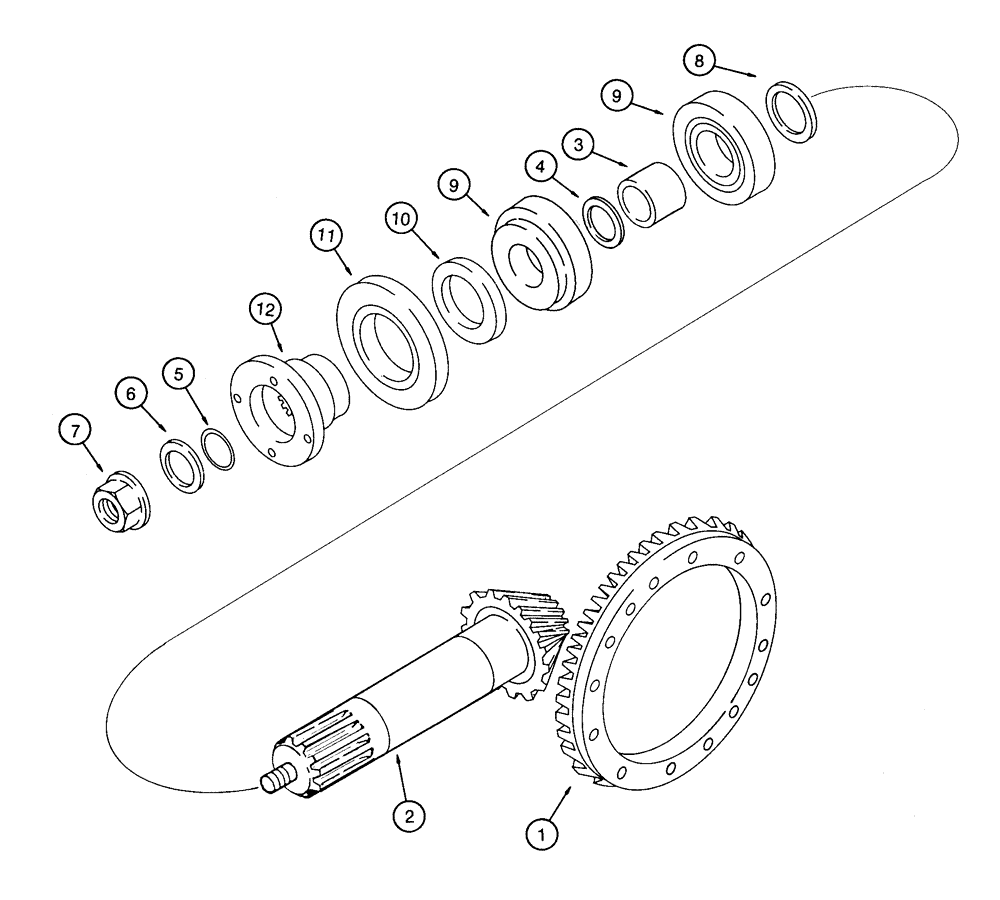

Запчасти Case 460 (6-55A) - REAR RIGID AXLE ASSEMBLY, 139020A1, RING AND PINION GEAR SET (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
139020A1
AXLE
ASSEMBLY - rear rigid, 5.38 gear ratio, parts list figures 6-50 - 6-56, see figure 6-30 for axle mounting, includes: Refs. 1 - 12, Start Serial: JAF0164068
1шт.
228159A1
GEAR-SET
GEAR - set, ring and pinion, 5.38 gear ratio, has 23 splines on nut end of pinion, see figure 6-68 for components, if used, includes: Refs. 1 - 7
1шт.
196393A1
PIN
GEAR - set, ring and pinion, 5.38 gear ratio, has 21 splines on nut end of pinion, if used, includes: Refs. 1 - 7
1шт.
1
NSS
NOT SOLD SEPARAT
GEAR - ring, differential
1шт.
2
NSS
NOT SOLD SEPARAT
GEAR - pinion, differential
1шт.
3
196462A1
SPACER
- bearing, 70 mm thick, if used
1шт.
3
196451A1
SPACER
- bearing, 70.025 mm thick, if used
1шт.
4
196452A1
SHIM
- 0.10 mm thick, bearing
1шт.
4
196453A1
SHIM
- 0.25 mm thick, bearing
1шт.
4
196454A1
SHIM,0.5mm Thk
- 0.50 mm thick, bearing
1шт.
5
238-8219
O-RING,0.139" Thk x 1.296" ID, -219, Cl 8, 90 Duro
- 1-5/16 ID x 1/8 inch wide
1шт.
6
196464A1
THRUST WASHER
- thrust
1шт.
7
196463A1
NUT
- flanged, pinion gear
1шт.
8
140954A1
SHIM,2.50mm Thk
(0.098"), Bearing, if used 2.50mm Thk
1шт.
8
140953A1
SHIM,2.60mm Thk
(0.102"), Bearing, if used 2.60mm Thk
1шт.
8
140951A1
SHIM,2.70mm Thk
(0.106"), Bearing, if used 2.70mm Thk
1шт.
8
140949A1
SHIM,2.80mm Thk
(0.110"), Bearing, if used 2.80mm Thk
1шт.
8
140948A1
SHIM,2.90mm Thk
(0.114"), Bearing, if used 2.90mm Thk
1шт.
8
140943A1
SHIM,3.00mm Thk
(0.118"), Bearing, if used 3.00mm Thk
1шт.
8
140944A1
SHIM,3.10mm Thk
(0.122"), Bearing, if used 3.10mm Thk
1шт.
8
140946A1
SHIM,3.30mm Thk
(0.129"), Bearing, if used 3.30mm Thk
1шт.
8
140947A1
SHIM,3.40mm Thk
(0.133"), Bearing, if used 3.40mm Thk
1шт.
10
196395A1
OIL SEAL
SEAL - oil
1шт.
11
196394A1
CUP
- bearing
1шт.
12
196396A1
FLANGE
- differential, 23 splines, if used
1шт.
12
138836A1
FLANGE
- differential, 21 splines, if used
1шт.
Выбрано товаров: 28
