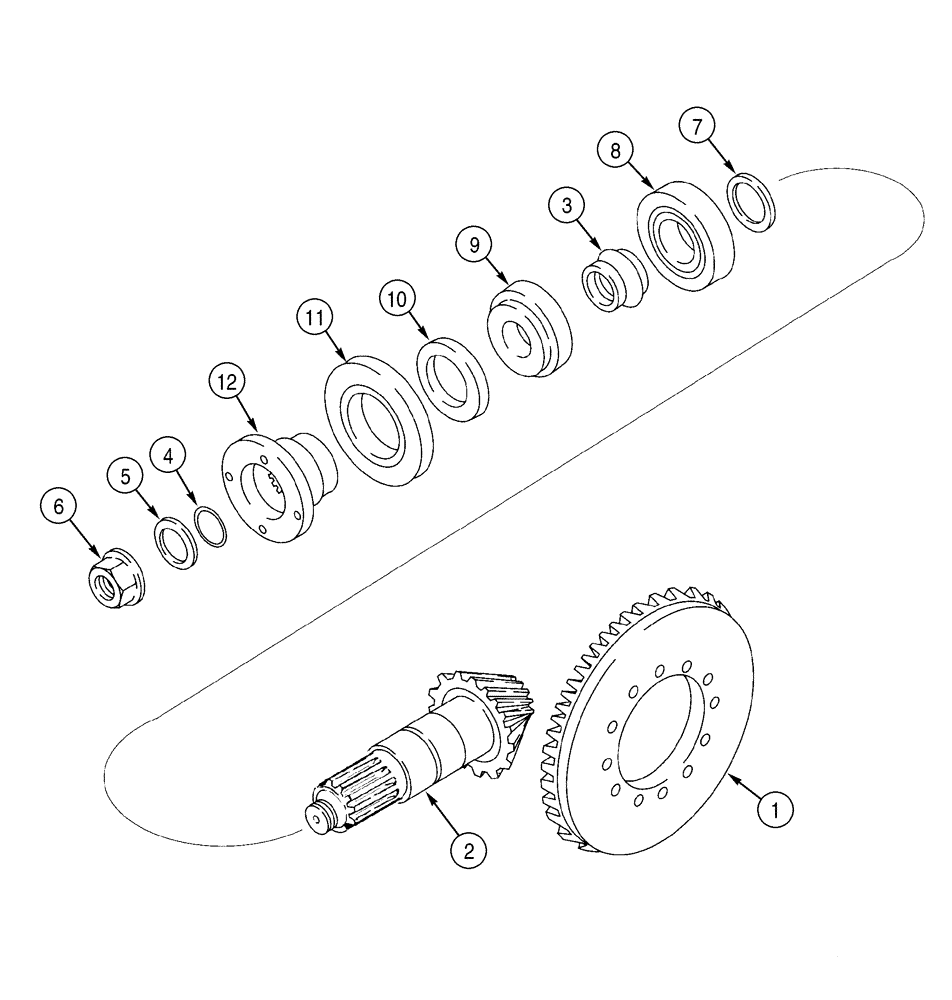

Запчасти Case 460 (6-54) - REAR RIGID AXLE ASSEMBLIES, 126102A1 AND 139020A1, RING AND PINION GEAR SET (06) - POWER TRAIN

126102A1

AXLE

REAR RIGID, 4.88 gear ratio, includes: Refs. 1 - 12

1шт.

If a complete axle assembly is ordered for a machine with a 4.88 gear ratio, a 5.38 gear ratio ring and pinion gear set (part number 138798A1) for the front axle must be ordered and installed to match the gear ratio of the new rear axle.

1шт.

139020A1

AXLE

REAR RIGID, 5.38 gear ratio, includes: Refs. 1 - 12, Serial Range: -JAF0164068

1шт.

140319A1

GEAR

- set, ring and pinion, 4.88 gear ratio

1шт.

138798A1

GEAR-SET

GEAR - ring and pinion, 5.38 gear ratio

1шт.

1

NSS

NOT SOLD SEPARAT

GEAR - ring, differential

1шт.

2

NSS

NOT SOLD SEPARAT

GEAR - pinion, differential

1шт.

3

140955A1

SPACER

- collapsible

1шт.

3

175083A1

SPACER

- collapsible, replaces 140955A1 and 140957A1 spacers, if used

1шт.

3

140957A1

SPACER

- bearing, located between small bearing and collapsible spacer, not shown

1шт.

4

238-8217

O-RING,0.139" Thk x 1.171" ID, -217, Cl 8, 90 Duro

1шт.

5

138800A1

THRUST WASHER

- thrust

1шт.

6

196463A1

NUT

- flanged, pinion gear, was 138799A1

1шт.

7

140954A1

SHIM,2.50mm Thk

(0.098") 2.50mm Thk

1шт.

7

140953A1

SHIM,2.60mm Thk

(0.102") 2.60mm Thk

1шт.

7

140951A1

SHIM,2.70mm Thk

(0.106") 2.70mm Thk

1шт.

7

140949A1

SHIM,2.80mm Thk

(0.110") 2.80mm Thk

1шт.

7

140948A1

SHIM,2.90mm Thk

(0.114") 2.90mm Thk

1шт.

7

140943A1

SHIM,3.00mm Thk

(0.118") 3.00mm Thk

1шт.

7

140944A1

SHIM,3.10mm Thk

(0.122") 3.10mm Thk

1шт.

7

140945A1

SHIM,3.20mm Thk

(0.125") 3.20mm Thk

1шт.

7

140946A1

SHIM,3.30mm Thk

(0.129") 3.30mm Thk

1шт.

7

140947A1

SHIM,3.40mm Thk

(0.133") 3.40mm Thk

1шт.

8

140956A1

BEARING

- tapered roller, large

1шт.

9

3232726R91

TAPERED BEARING

- tapered roller, small

1шт.

10

138802A1

OIL SEAL

SEAL - oil

1шт.

11

138801A1

CUP

- bearing

1шт.

12

138836A1

FLANGE

- differential

1шт.
