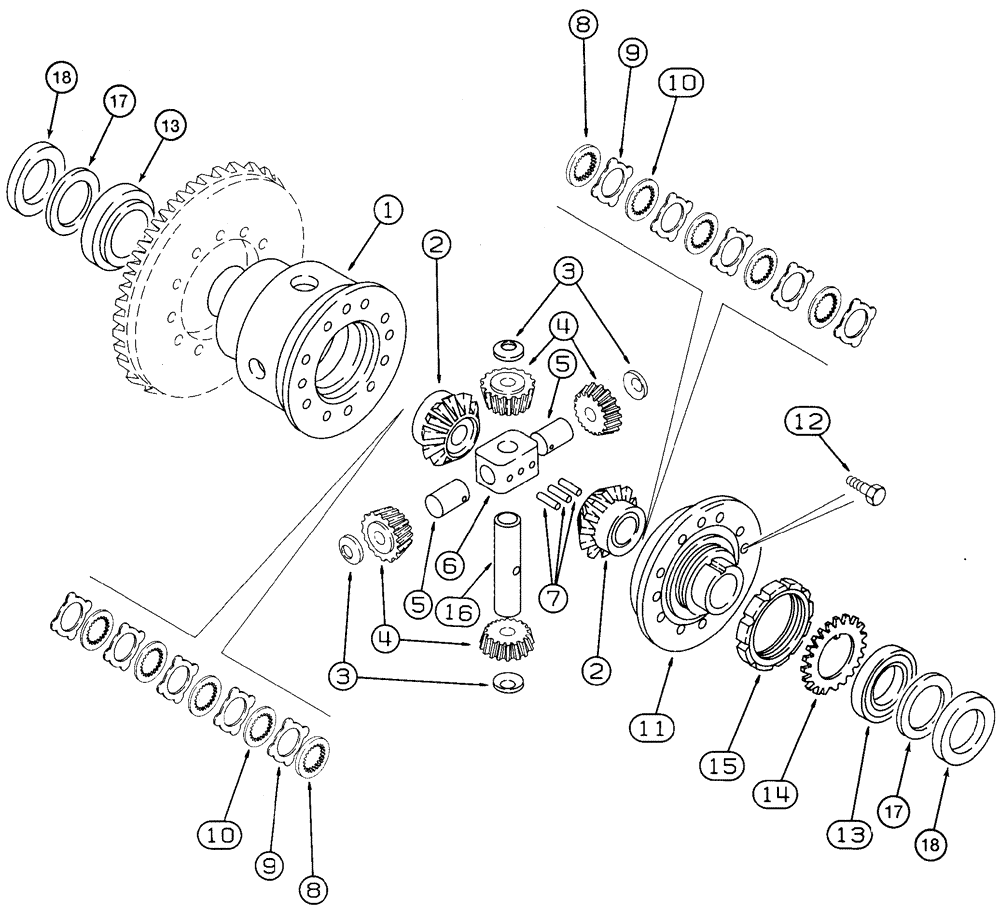

Запчасти Case 460 (6-52) - REAR RIGID AXLE ASSEMBLIES, 126102A1 AND 139020A1, EARLY PRODUCTION DIFFERENTIAL (06) - POWER TRAIN

126102A1

AXLE

ASSEMBLY - rear regid, 4.88 gear ratio, not available for service, order 139020A1 axle assembly, includes: Refs. 1 - 18, not available for service, order 139020A1 axle assembly, see figure 6-30 for mounting, Serial Range: -JAF0117840

1шт.

If a complete axle assembly is ordered for a machine with a 4.88 gear ratio, a 5.38 gear ratio ring and pinion gear set (part number 138798A1) for the front axle must be ordered and installed to match the gear ratio of the new rear axle.

1шт.

139020A1

AXLE

REAR RIGID, 5.38 gear ratio, P.I.N. JAF0117840 thru JAF0164067, includes: Refs. 1 - 18

1шт.

See figure 6-53A for 139020A1 axle differential P.I.N. JAF0164068 and after.

1шт.

1

138804A1

HOUSING

- differential

1шт.

2

138838A1

GEAR

- side, pinion, differential

2шт.

3

138805A1

THRUST WASHER

WASHER - thrust, pinion gear, no longer available, order 231989A1 kit which includes (4) thrust washers and (2) pinion gear shafts, Ref. 5

4шт.

no longer available, order 231989A1 kit which includes (4) thrust washers and (2) pinion gear shafts, Ref.5

1шт.

4

N14408

SUN GEAR

GEAR - pinion, differential

4шт.

5

138806A1

SHAFT

- pinion gear, short, no longer available, components of 231989A1 kit, see Ref. 3

2шт.

no longer available, components of 231989A1 kit see Ref. 3

1шт.

6

138815A1

DIFF. SPIDER

SPIDER - pinion gear shaft

1шт.

7

303182A1

PIN

- roll, 6 x 20 mm, spider, replaces 139111A1

3шт.

8

1966154C1

PLATE

- backing

2шт.

9

1966155C1

PLATE

- drive, friction

10шт.

10

1966156C1

WASHER

PLATE - driven, friction

8шт.

11

138816A1

COVER

- differential housing

1шт.

12

100533A1

BOLT,Self-Lock, M12 x 30mm

- hex, special, 12 - 1.75 x 30 mm

12шт.

13

K395027

TAPERED BEARING

BEARING, ROLLER, TAPERED, Differential, Inner and outer

2шт.

14

224849A1

LOCK WASHER

WASHER - bearing lock, special

1шт.

15

754-1055

LOCK NUT,M55 x 2, Bearing

NUT - bearing lock, 55 mm - 2.0

1шт.

16

138817A1

SHAFT

- pinion gear, long

1шт.

17

1966882C1

SHIM

- 0.05 mm thick, bearing, if used

1шт.

17

K260147

SPACER

SHIM - 0.1 mm thick, bearing, if used

1шт.

17

1967516C1

SHIM

- 0.3 mm thick, bearing, if used

1шт.

17

1967517C1

SHIM

- 0.5 mm thick, bearing, if used

1шт.

18

196411A1

SHIM

- 4.5 mm thick, bearing, if used

1шт.

18

196401A1

SHIM

- 4.6 mm thick, bearing, if used

1шт.

18

196402A1

SHIM

- 4.7 mm thick, bearing, if used

1шт.

18

196403A1

SHIM

- 4.8 mm thick, bearing, if used

1шт.

18

196404A1

SHIM

- 4.9 mm thick, bearing, if used

1шт.

18

196405A1

SHIM

- 5.0 mm thick, bearing, if used

1шт.

18

196406A1

SHIM

- 5.1 mm thick, bearing, if used

1шт.

18

196407A1

SHIM

- 5.2 mm thick, bearing, if used

1шт.

18

196408A1

SHIM

- 5.3 mm thick, bearing, if used

1шт.

18

196410A1

SHIM

- 5.4 mm thick, bearing, if used

1шт.
