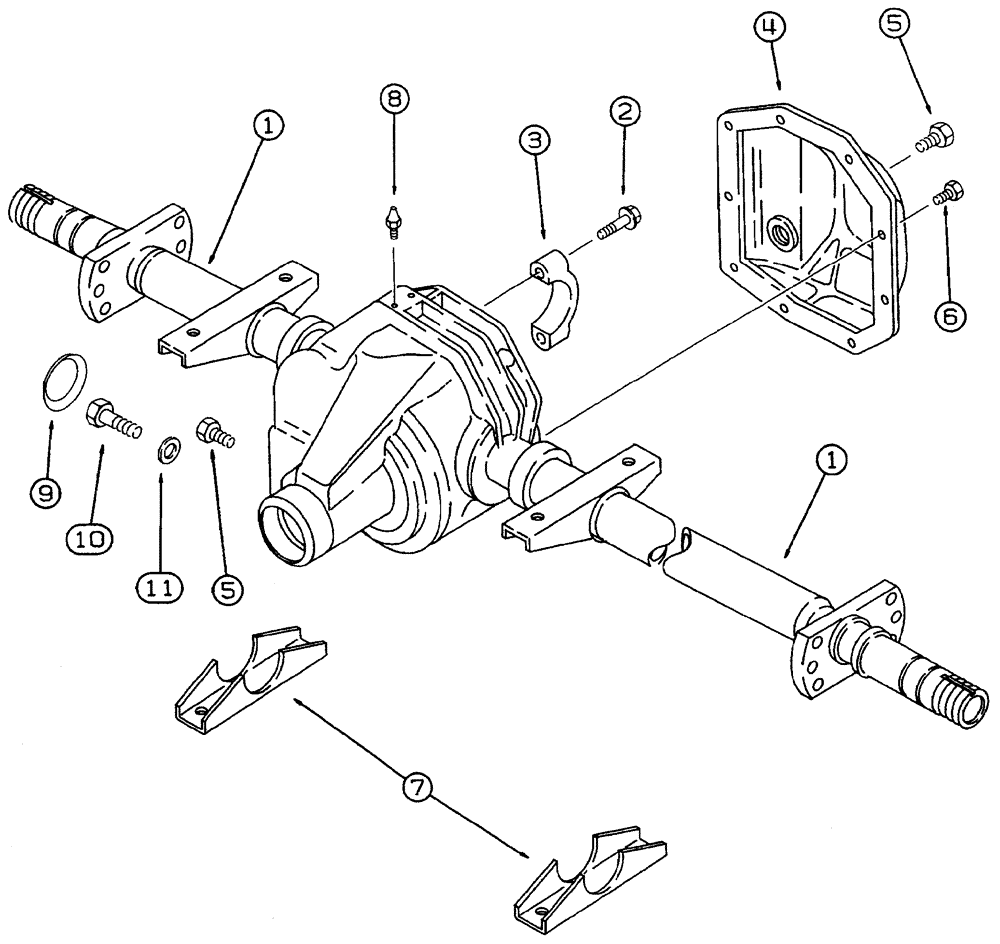

Запчасти Case 460 (6-50) - REAR RIGID AXLE ASSEMBLIES, 126102A1 AND 139020A1, AXLE HOUSING (06) - POWER TRAIN

126102A1

AXLE

ASSEMBLY - rear rigid, 4.88 gear ratio, includes: Refs. 1 - 11

1шт.

If a complete axle assembly is ordered for a machine with a 4.88 gear ratio, a 5.38 gear ratio ring and pinion gear set (part number 138798A1) for the front axle must be ordered and installed to match the gear ratio of the new rear axle.

1шт.

139020A1

AXLE

ASSEMBLY - rear rigid, 5.38 gear ratio, includes: Refs. 1 - 11

1шт.

138833A1

HOUSING

ASSEMBLY - axle, includes: Refs. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - axle

1шт.

2

138774A1

BOLT,Self Lkg, Hex, M12 x 70mm, Cl 10.9

- hex, self-locking

4шт.

3

NSS

NOT SOLD SEPARAT

CAP - differential bearing

1шт.

4

138776A1

COVER

- differential

1шт.

5

A156873

PLUG, DRAIN,M22 x 1.5

2шт.

6

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

11шт.

7

138778A1

BRACKET

- mounting, axle housing, 126102A1

2шт.

7

128567A1

PAD

BRACKET - axle mounting, was 175084A1, 139020A1 axle, not shipped with axle

2шт.

8

1966149C1

BREATHER

- axle housing

1шт.

9

138780A1

PLUG

- axle housing

1шт.

10

614-16020

BOLT,Hex, M16 x 2 x 20mm, Cl 8.8, Full Thd

1шт.

11

1967980C1

WASHER

- special

1шт.
