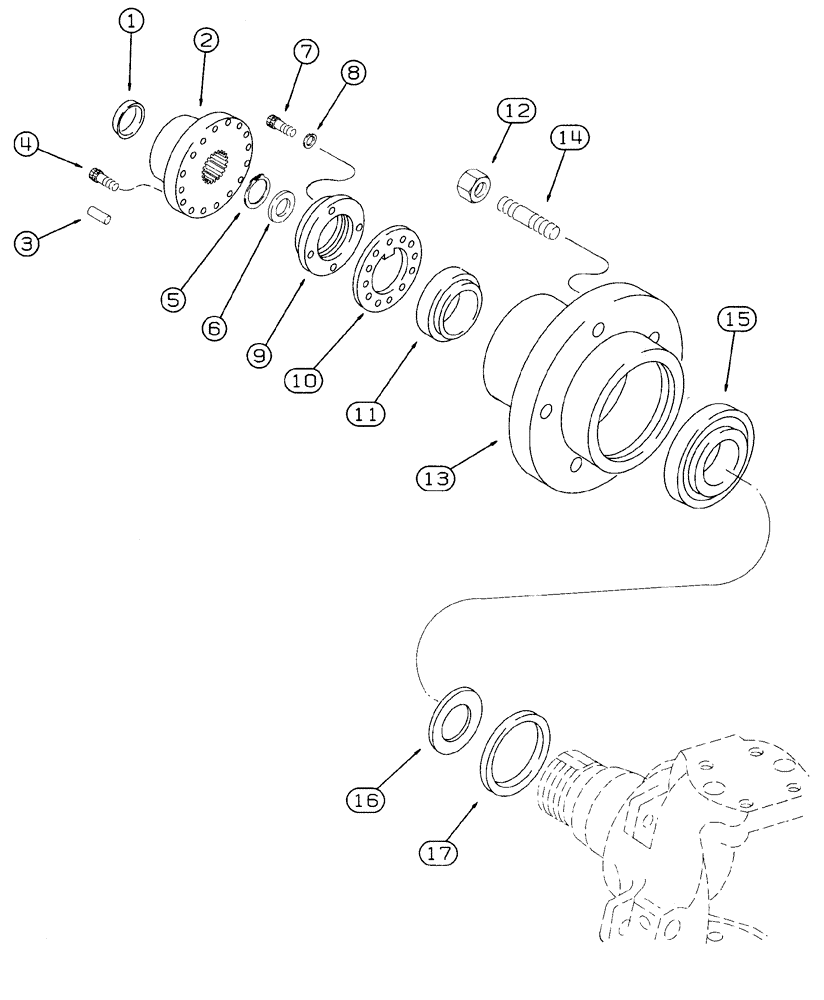

Запчасти Case 460 (6-48) - FRONT AXLE ASSEMBLIES, 115816A1, 139021A1 AND 195520A1, WHEEL HUBS (06) - POWER TRAIN

115816A1

AXLE HOUSING

AXLE ASSEMBLY - front steerable, 4.88 gear ratio, not available for service, order 139021A1 axle assembly, see figure 6-28 for axle mounting, includes: Refs. 1 - 17, Serial Range: -JAF0117840

1шт.

If a complete axle assembly is ordered for a machine with a 4.88 gear ratio, a 5.38 gear ratio ring and pinion gear set (part number 138798A1) for the rear axle must be ordered and installed to match the gear ratio of the new front axle.

1шт.

139021A1

AXLE

ASSEMBLY - front steerable, 5.38 gear ratio, P.I.N. JAF0117840 through JAF0164067, parts list figure 6-36 - 6-48, see figure 6-28 for axle mounting, includes: Refs. 1 - 17

1шт.

195520A1

AXLE

ASSEMBLY - front steerable, 5.38 gear ratio, parts list figure 6-36 - 6-48, see figure 6-28 for axle mounting, includes: Refs. 1 - 17, Start Serial: JAF0164068

1шт.

1

138819A1

PLUG

- flange

2шт.

2

138821A1

FLANGE

- wheel hub, 115816A1 and 139021A1 axles

2шт.

2

138839A1

FLANGE

- wheel hub, 195520A1 axle

2шт.

3

139112A1

PIN,8mm OD x 26mm L

- dowell, 8 x 26 mm

4шт.

4

861-8025

HEX SOC SCREW,M8 x 25mm, Cl 12.9

SCREW - hex socket, 8 - 1.25 x 25 mm, class 12.9

28шт.

5

800-1129

SNAP RING,M29, Ext

RING - external retaining, No. 29, 115816A1 and 139021A1 axles

2шт.

5

800-1134

SNAP RING,M34, Ext

RING, SNAP, , Retaining, 195520A1 axle M34, Ext

2шт.

6

138829A1

THRUST WASHER

- thrust, 115816A1 and 139021A1 axles

2шт.

6

196442A1

THRUST WASHER

- thrust, 195520A1 axle

2шт.

7

K956834

SCREW

- special

2шт.

8

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

9

138822A1

RING

NUT - bearing lock

2шт.

10

138823A1

WASHER

- bearing lock

2шт.

11

139115A1

BALL BEARING

- ball, outer

2шт.

12

139118A1

NUT

- hex, special, 10 - 1.5 mm, includes: Refs. 13 and 14

10шт.

138824A1

HUB

ASSEMBLY - wheel attaching

2шт.

13

NSS

NOT SOLD SEPARAT

HUB - wheel attaching, 109 mm

1шт.

14

K205125

STUD

- wheel attaching

5шт.

15

138825A1

BALL BEARING

- ball, inner

2шт.

16

138826A1

SPACER

- inner bearing

2шт.

17

230517A1

OIL SEAL

SEAL - 75 x 95 x 10 mm, was 138828A1

2шт.
