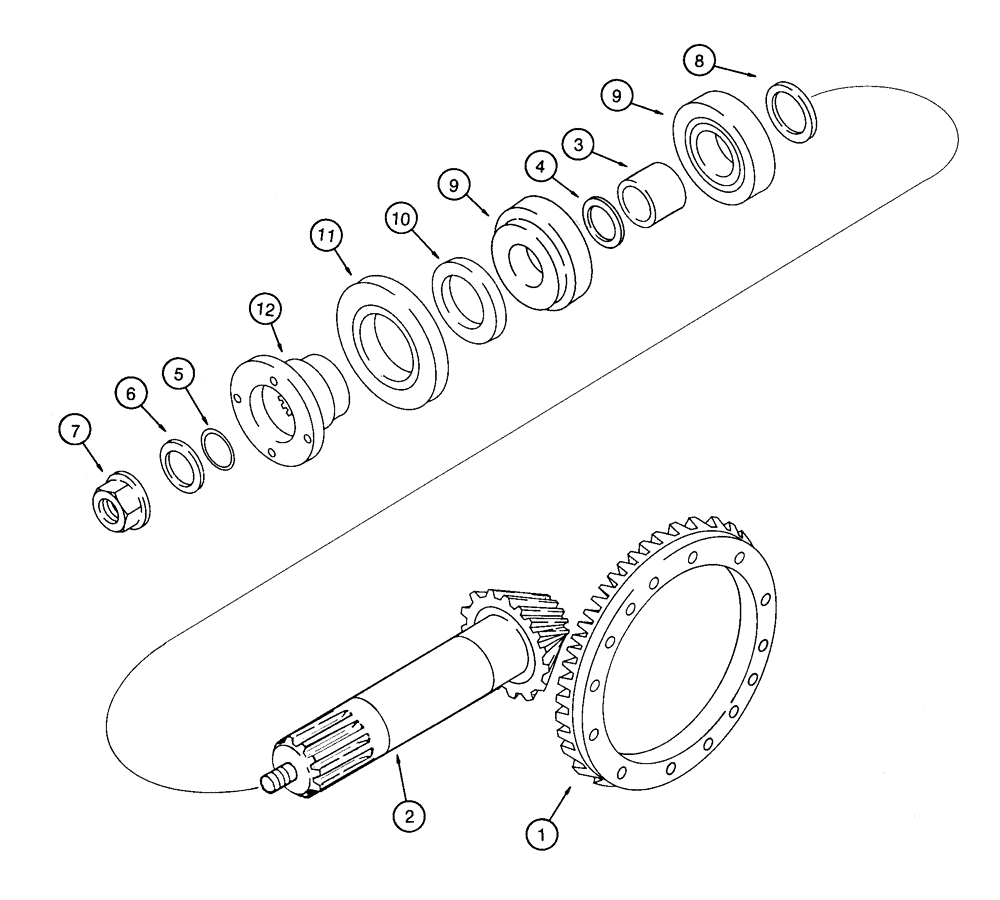

Запчасти Case 460 (6-47A) - FRONT AXLE ASSEMBLY, 195520A1, RING AND PINION GEAR SET, P.I.N. JAF0164068 AND AFTER (06) - POWER TRAIN

195520A1

AXLE

ASSEMBLY - front steerable, 5.38 gear ratio, parts list figures 6-36 through 6-48, see figure 6-28 for axle mounting, includes: Refs. 1 - 12, Start Serial: JAF0164068

1шт.

228159A1

GEAR-SET

GEAR - set, ring and pinion, 5.38 gear ratio, has 23 splines on nut end of pinion, see figure 6-68 for components, if used, includes: Refs. 1 - 7

1шт.

196393A1

PIN

GEAR - set, ring and pinion, 5.38 gear ratio, has 21 splines on nut end of pinion, components are Refs. 1 thru 7 below, if used

1шт.

1

NSS

NOT SOLD SEPARAT

GEAR - ring, differential

1шт.

2

NSS

NOT SOLD SEPARAT

GEAR - pinion, differential

1шт.

3

196462A1

SPACER

- bearing, 70 mm thick, if used

1шт.

3

196451A1

SPACER

- bearing, 70.025 mm thick, if used

1шт.

4

196452A1

SHIM

- 0.10 mm thick, bearing

1шт.

4

196453A1

SHIM

- 0.25 mm thick, bearing

1шт.

4

196454A1

SHIM,0.5mm Thk

- 0.50 mm thick, bearing

1шт.

5

238-8219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 8, 90 Duro

- 1-5/16 ID x 1/8 inch wide

1шт.

6

196464A1

THRUST WASHER

- thrust

1шт.

7

196463A1

NUT

- flanged, pinion gear

1шт.

8

140954A1

SHIM,2.50mm Thk

(0.098"), Bearing, if used 2.50mm Thk

1шт.

8

140953A1

SHIM,2.60mm Thk

(0.102"), Bearing, if used 2.60mm Thk

1шт.

8

140951A1

SHIM,2.70mm Thk

(0.106"), Bearing, if used 2.70mm Thk

1шт.

8

140949A1

SHIM,2.80mm Thk

(0.110"), Bearing, if used 2.80mm Thk

1шт.

8

140948A1

SHIM,2.90mm Thk

(0.114"), Bearing, if used 2.90mm Thk

1шт.

8

140943A1

SHIM,3.00mm Thk

(0.118"), Bearing, if used 3.00mm Thk

1шт.

8

140944A1

SHIM,3.10mm Thk

(0.122"), Bearing, if used 3.10mm Thk

1шт.

8

140945A1

SHIM,3.20mm Thk

(0.125"), Bearing, if used 3.20mm Thk

1шт.

8

140946A1

SHIM,3.30mm Thk

(0.129"), Bearing, if used 3.30mm Thk

1шт.

8

140947A1

SHIM,3.40mm Thk

(0.133"), Bearing, if used 3.40mm Thk

1шт.

9

K395090

TAPERED BEARING,40mm ID x 90mm OD

BEARING, ROLLER, TAPERED, Replaces 140956A1

2шт.

10

196395A1

OIL SEAL

SEAL - oil

1шт.

11

196394A1

CUP

- bearing

1шт.

12

196396A1

FLANGE

- differential, 23 splines, used with 228159A1 gear set

1шт.

12

138836A1

FLANGE

- differential, 21 splines, used with 196393A1 gear set

1шт.
