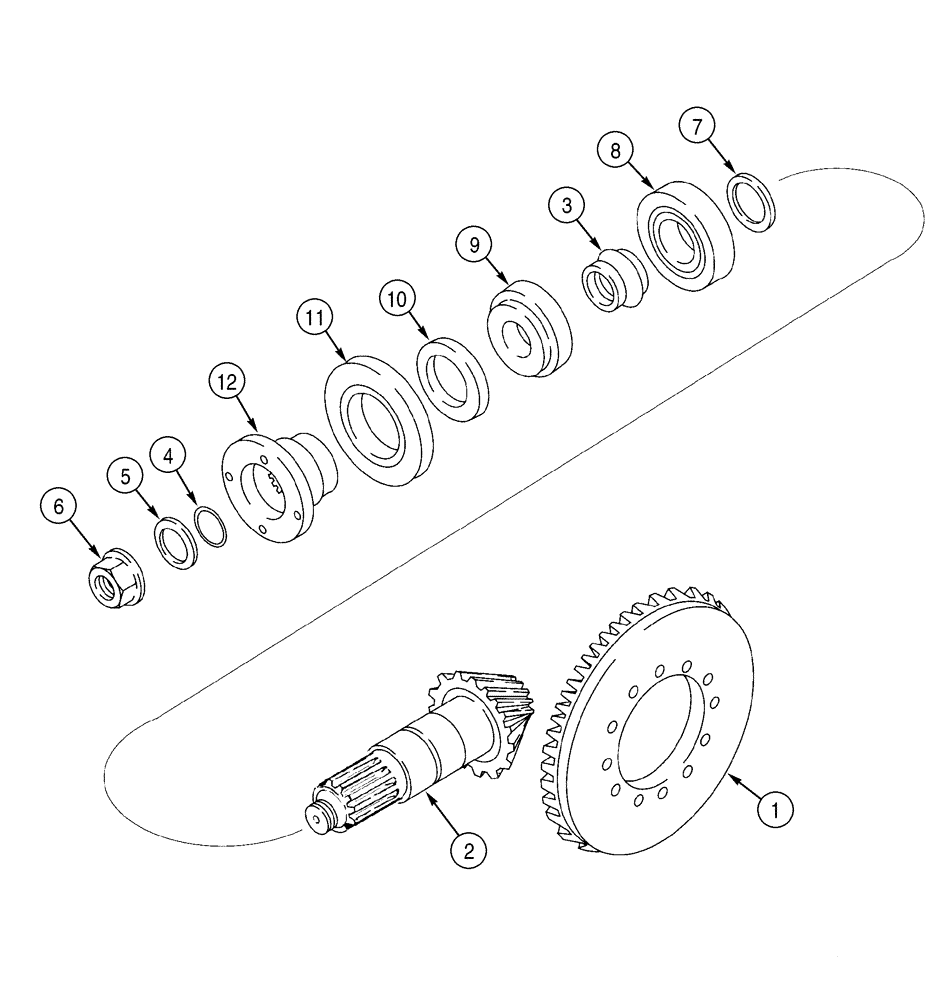

Запчасти Case 460 (6-46) - FRONT AXLE ASSEMBLIES, 115816A1 AND 139021A1, RING AND PINION GEAR SET, PRIOR TO P.I.N. JAF0164068 (06) - POWER TRAIN

115816A1

AXLE HOUSING

AXLE ASSEMBLY - front steerable, 4.88 gear ratio, not available for service, order 139021A1 axle assembly, see figure 6-28 for axle mounting, includes: Refs. 1 - 6, Serial Range: -JAF0117840

1шт.

If a complete axle assembly is ordered for a machine with a 4.88 gear ratio, a 5.38 gear ratio ring and pinion gear set (part number 138798A1) for the rear axle must be ordered and installed to match the gear ratio of the new front axle.

1шт.

139021A1

AXLE

ASSEMBLY - front steerable, 5.38 gear ratio, P.I.N. JAF0117840 through JAF0164067, parts list figure 6-36 - 6-48, see figure 6-28 for axle mounting, includes: Refs. 1 - 6

1шт.

140319A1

GEAR

- set, ring and pinion, 4.88 gear ratio, 115816A1 axle, if used, includes: Refs. 1 - 6

1шт.

138798A1

GEAR-SET

GEAR - ring and pinion, 5.38 gear ratio, 115816A1 and 139021A1 axles, if used, includes: Refs. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

GEAR - ring, differential

1шт.

2

NSS

NOT SOLD SEPARAT

GEAR - pinion, differential

1шт.

3

140955A1

SPACER

- collapsible, if used

1шт.

3

175083A1

SPACER

- collapsible, replaces 140955A1 and 140957A1 spacers, if used

1шт.

3a

140957A1

SPACER

- bearing, located between bearing and collapsible spacer, not shown, if used

1шт.

4

238-8217

O-RING,0.139" Thk x 1.171" ID, -217, Cl 8, 90 Duro

1шт.

5

138800A1

THRUST WASHER

- thrust

1шт.

6

196463A1

NUT

- flanged, pinion gear, was 138799A1

1шт.

7

140954A1

SHIM,2.50mm Thk

(0.098") 2.50mm Thk

1шт.

7

140953A1

SHIM,2.60mm Thk

(0.102") 2.60mm Thk

1шт.

7

140951A1

SHIM,2.70mm Thk

(0.106") 2.70mm Thk

1шт.

7

140949A1

SHIM,2.80mm Thk

(0.110") 2.80mm Thk

1шт.

7

140948A1

SHIM,2.90mm Thk

(0.114") 2.90mm Thk

1шт.

7

140943A1

SHIM,3.00mm Thk

(0.118") 3.00mm Thk

1шт.

7

140944A1

SHIM,3.10mm Thk

(0.122") 3.10mm Thk

1шт.

7

140945A1

SHIM,3.20mm Thk

(0.125") 3.20mm Thk

1шт.

7

140946A1

SHIM,3.30mm Thk

(0.129") 3.30mm Thk

1шт.

7

140947A1

SHIM,3.40mm Thk

(0.133") 3.40mm Thk

1шт.

8

140956A1

BEARING

- tapered roller, large, 89 mm (3.50 inch) OD

1шт.

9

3232726R91

TAPERED BEARING

- tapered roller, small, 80 mm (3.149 inch) OD

1шт.

10

138802A1

OIL SEAL

SEAL - oil

1шт.

11

138801A1

CUP

- bearing

1шт.

12

138803A1

FLANGE

- differential

1шт.
