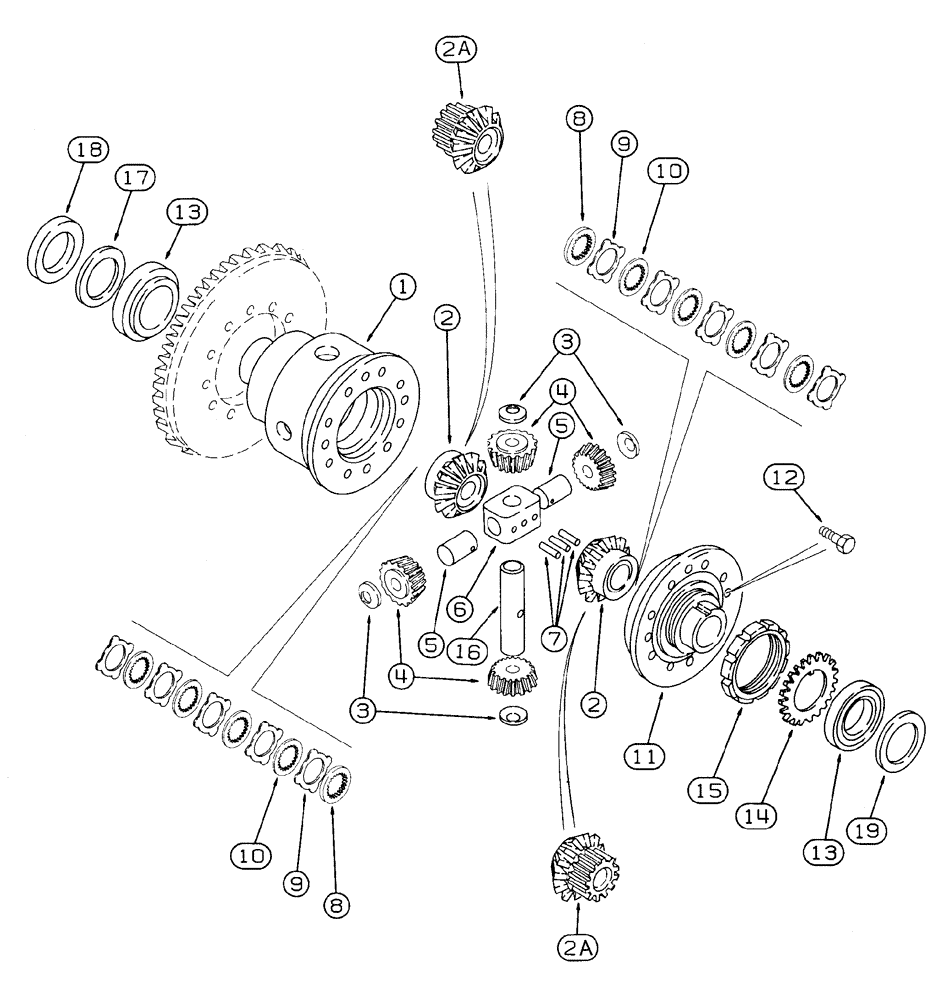

Запчасти Case 460 (6-44) - FRONT AXLE ASSEMBLIES, 115816A1, 139021A1 AND 195520A1, DIFFERENTIAL (06) - POWER TRAIN

115816A1

AXLE HOUSING

AXLE ASSEMBLY - front steerable, 4.88 gear ratio, not available for service, order 139021A1 axle assembly, see figure 6-28 for axle mounting, includes: Refs. 1 - 19, Serial Range: -JAF0117840

1шт.

If a complete axle assembly is ordered for a machine with a 4.88 gear ratio, a 5.38 gear ratio ring and pinion gear set (part number 138798A1) for the rear axle must be ordered and installed to match the gear ratio of the new front axle.

1шт.

139021A1

AXLE

ASSEMBLY - front steerable, 5.38 gear ratio, P.I.N. JAF0117840 through JAF0164067, parts list figure 6-36 - 6-48, see figure 6-28 for axle mounting, includes: Refs. 1 - 19

1шт.

195520A1

AXLE

ASSEMBLY - front steerable, 5.38 gear ratio, parts list figure 6-36 - 6-48, see figure 6-28 for axle mounting, includes: Refs. 1 - 19, Start Serial: JAF0164068

1шт.

1

138804A1

HOUSING

- differential, 115816A1 and 139021A1 axles

1шт.

1

196397A1

HOUSING

- differential, 195520A1 axle

1шт.

2

1349057C1

PINION

GEAR - side gear, differential, 195816A1 and 139021A1 axles

2шт.

2a

138838A1

GEAR

- side, pinion, differential, 195520A1 axle

2шт.

3

138805A1

THRUST WASHER

WASHER - thrust, pinion gear

4шт.

4

N14408

SUN GEAR

GEAR - pinion, differential

4шт.

5

138806A1

SHAFT

- pinion gear, short

2шт.

6

138815A1

DIFF. SPIDER

SPIDER - pinion gear shaft

1шт.

7

303182A1

PIN

- roll, 6 x 20 mm, spider, replaces 139111A1

3шт.

8

1966154C1

PLATE

- backing

2шт.

9

1966155C1

PLATE

- drive, friction

10шт.

10

1966156C1

WASHER

PLATE - driven, friction

8шт.

11

138816A1

COVER

- differential housing, 115816A1 and 139021A1 axles

1шт.

11

196398A1

COVER

- differential housing, 195520A1 axle

1шт.

12

100533A1

BOLT,Self-Lock, M12 x 30mm

- hex, special, 12 - 1.75 x 30 mm, prior to axle Ser. No. 353 used with 228159A1 gear set on 195520A1 axle

12шт.

12

302372A1

BOLT,M12 x 1.25 x 30mm, Gr 12.9

- hex, special, 12 - 1.25 x 30 mm, axle Ser. No. 353 and after used with 228159A1 axle, see figure 6-47A

12шт.

13

K395027

TAPERED BEARING

BEARING, ROLLER, TAPERED, Differential, Inner and outer

2шт.

14

224849A1

LOCK WASHER

WASHER - special, 115816A1 and 139021A1 axles

1шт.

15

754-1055

LOCK NUT,M55 x 2, Bearing

NUT - bearing lock, 55 mm - 2.0, 115816A1 and 139021A1 axles

1шт.

16

138817A1

SHAFT

- pinion gear, long

1шт.

17

1966882C1

SHIM

- 0.05 mm thick, bearing, 115816A1 and 139021A1 axles

1шт.

17

K260147

SPACER

SHIM - 0.1 mm thick, bearing, 115816A1 and 139021A1 axles

1шт.

17

1967516C1

SHIM

- 0.3 mm thick, bearing, 115816A1 and 139021A1 axles

1шт.

17

1967517C1

SHIM

- 0.5 mm thick, bearing, 115816A1 and 139021A1 axles

1шт.

18

138818A1

SHIM

- bearing, beginning, 115816A1 and 139021A1 axles

1шт.

19

196411A1

SHIM

- 4.5 mm thick, bearing, 195520A1 axle, if used

1шт.

19

196401A1

SHIM

- 4.6 mm thick, bearing, 195520A1 axle, if used

1шт.

19

196402A1

SHIM

- 4.7 mm thick, bearing, 195520A1 axle, if used

1шт.

19

196403A1

SHIM

- 4.8 mm thick, bearing, 195520A1 axle, if used

1шт.

19

196404A1

SHIM

- 4.9 mm thick, bearing, 195520A1 axle, if used

1шт.

19

196405A1

SHIM

- 5.0 mm thick, bearing, 195520A1 axle, if used

1шт.

19

196406A1

SHIM

- 5.1 mm thick, bearing, 195520A1 axle, if used

1шт.

19

196407A1

SHIM

- 5.2 mm thick, bearing, 195520A1 axle, if used

1шт.

19

196408A1

SHIM

- 5.3 mm thick, bearing, 195520A1 axle, if used

1шт.

19

196410A1

SHIM

- 5.4 mm thick, bearing, 195520A1 axle, if used

1шт.
