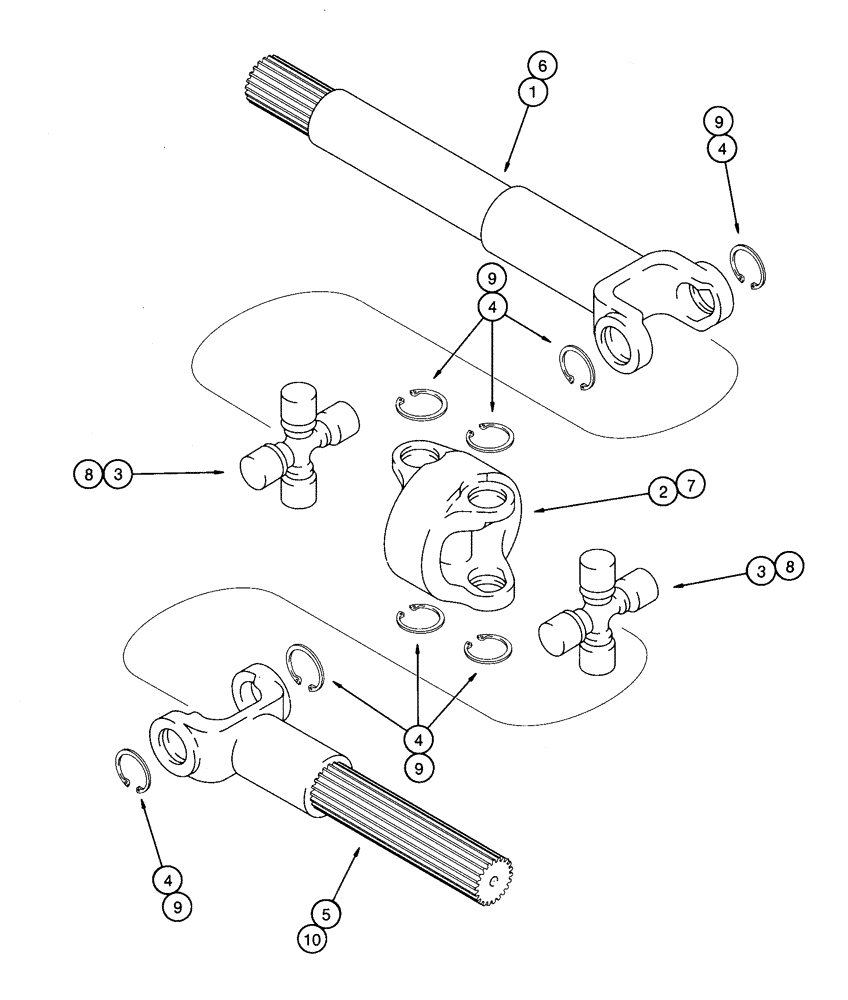

Запчасти Case 460 (6-42) - FRONT AXLE ASSEMBLIES, 115816A1, 139021A1 AND 195520A1, AXLE SHAFTS (06) - POWER TRAIN

115816A1

AXLE HOUSING

AXLE ASSEMBLY - front steerable, 4.88 gear ratio, not available for service, order 139021A1 axle assembly, see figure 6-28 for axle mounting, includes: Refs. 1 - 10, Serial Range: -JAF0117840

1шт.

If a complete axle assembly is ordered for a machine with a 4.88 gear ratio, a 5.38 gear ratio ring and pinion gear set (part number 138798A1) for the rear axle must be ordered and installed to match the gear ratio of the new front axle.

1шт.

139021A1

AXLE

ASSEMBLY - front steerable, 5.38 gear ratio, P.I.N. JAF0117840 through JAF0164067, parts list figure 6-36 - 6-48, see figure 6-28 for axle mounting, includes: Refs. 1 - 10

1шт.

195520A1

AXLE

ASSEMBLY - front steerable, 5.38 gear ratio, parts list figure 6-36 - 6-48, see figure 6-28 for axle mounting, includes: Refs. 1 - 10, Start Serial: JAF0164068

1шт.

138795A1

AXLE SHAFT

SHAFT ASSEMBLY - 115816A1 and 139021A1 axles, includes: Refs. 1 - 5

2шт.

1

138796A1

SHAFT

- half, differential side

1шт.

2

222721A1

LINK

BODY - connecting (replaces N14412)

1шт.

3

N14411

U-JOINT SPIDER

JOINT - universal, axle shaft

2шт.

4

495962R1

RING

- snap, universal joint (replaces N14410)

8шт.

5

222842A1

SHAFT

- half, wheel side (replaces N14410)

1шт.

196392A1

DRIVE SHAFT

SHAFT ASSEMBLY - axle, 195520A axle, includes: Refs. 6 - 10

2шт.

6

224035A1

SHAFT

- half, differential side

1шт.

7

224036A1

BODY

- connecting

1шт.

8

224037A1

DIFF. SPIDER

JOINT - universal, axle shaft

2шт.

9

D143165

RING

- snap, universal joint

8шт.

10

224038A1

SHAFT

- half, wheel side

1шт.
