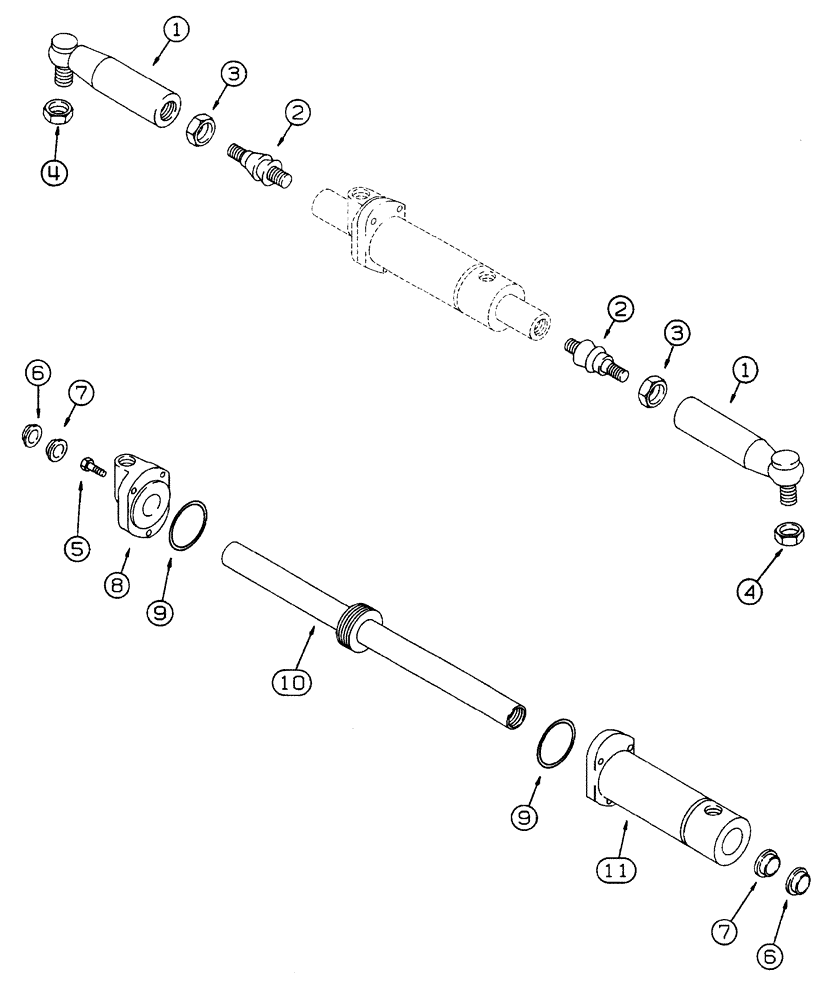

Запчасти Case 460 (6-40) - FRONT AXLE ASSEMBLIES, 115816A1, 139021A1 AND 195520A1, STEERING CYLINDER MOUNTING AND ASSEMBLY (06) - POWER TRAIN

115816A1

AXLE HOUSING

AXLE ASSEMBLY - front steerable, 5.38 gear ratio, parts list figures 6-36 through 6-48, see figure 6-28 for axle mounting, includes: Refs. 1 - 10, Serial Range: -JAF0117840

1шт.

If a complete axle assembly is ordered for a machine with a 4.88 gear ratio, a 5.38 gear ratio ring and pinion gear set (part number 138798A1) for the rear axle must be ordered and installed to match the gear ratio of the new front axle.

1шт.

139021A1

AXLE

ASSEMBLY - front steerable, 5.38 gear ratio, P.I.N. JAF0117840 through JAF0164067, parts list figure 6-36 - 6-48, see figure 6-28 for axle mounting, includes: Refs. 1 - 10

1шт.

195520A1

AXLE

ASSEMBLY - front steerable, 5.38 gear ratio, parts list figure 6-36 - 6-48, see figure 6-28 for axle mounting, includes: Refs. 1 - 10, Start Serial: JAF0164068

1шт.

196445A1

TIE-ROD

ROD ASSEMBLY - used on Carraro axle P.I.N. 398 and after, see figure 6-62, includes: Refs. 1 - 3

2шт.

138794A1

TIE-ROD

ROD ASSEMBLY - used prior to Carraro axle P.I.N. 398, components are items 1 through 3 below, includes: Refs. 1 - 3

2шт.

1

138793A1

HYDRAULIC SWIVEL

JOINT - ball, right-hand thread

1шт.

2

130153A1

BALL JOINT

JOINT - ball, steering, adjuster

1шт.

3

934727R1

THIN NUT,Thin, M18 x 1.5, Cl 04

- hex, special, right-hand thread

1шт.

4

905839R1

LOCK NUT,M18 x 1.5, Thin

NUT - hex, self-locking, 18 x 1.5 mm

2шт.

5

114296A1

BOLT

BOLT - self-locking, special, gland to steering cylinder

3шт.

130155A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - steering, see 130156A1 seal kit below, includes: Refs. 6 - 10, Serial Range: -JAF0164068

1шт.

196446A1

CYLINDER

ASSEMBLY - steering, see 130156A1 seal kit below, includes: Refs. 6 - 10, Start Serial: JAF0164068

1шт.

6

NSS

NOT SOLD SEPARAT

WIPER - rod

2шт.

Part of Seal Kit P/N 130156A1

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - rod

2шт.

Part of Seal Kit P/N 130156A1

1шт.

8

130159A1

GLAND

- cylinder

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING - gland and rod

2шт.

Part of Seal Kit P/N 130156A1

1шт.

10

130158A1

ROD

- piston

1шт.

11

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

130156A1

SEAL

KIT - seal, steering cylinder, includes Refs. 6, 7, and 9

1шт.
