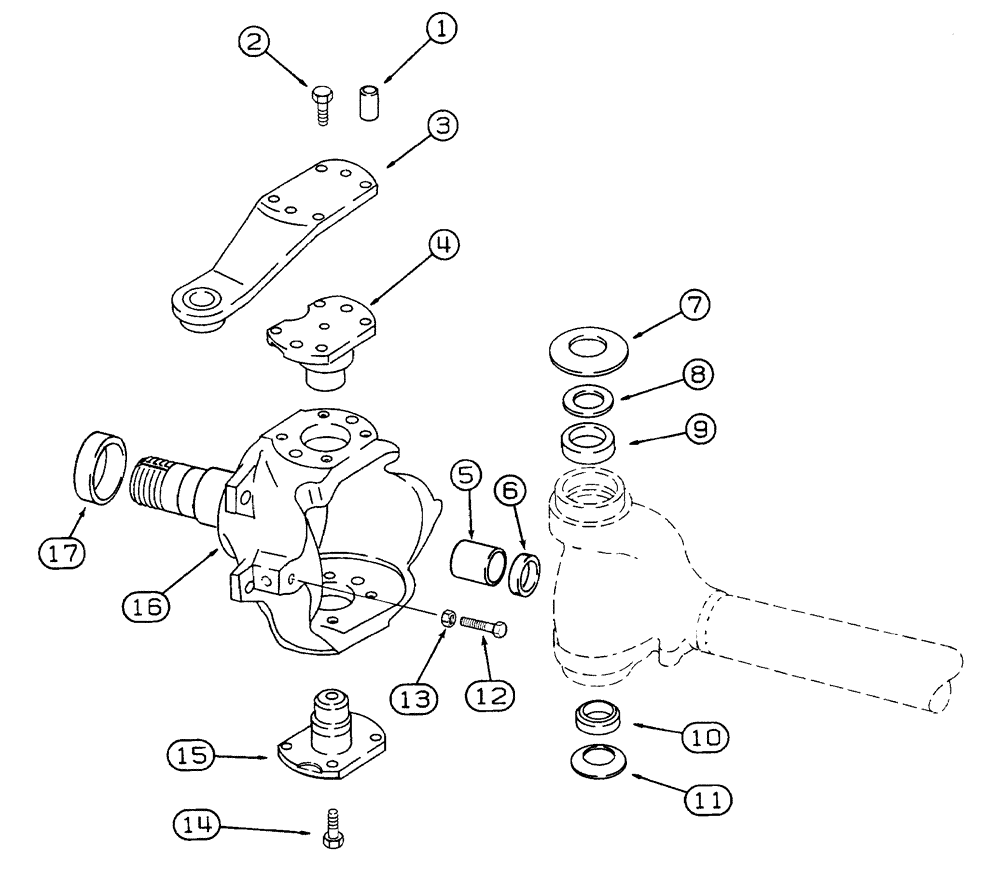

Запчасти Case 460 (6-38) - FRONT AXLE ASSEMBLIES, 115816A1 AND 139021A1, SWIVEL HOUSING, PRIOR TO P.I.N. JAF0164068 (06) - POWER TRAIN

115816A1

AXLE HOUSING

AXLE ASSEMBLY - front steerable, 4.88 gear ratio, not available for service, order 139021A1 axle assembly, see figure 6-28 for axle mounting, includes: Refs. 1 - 17, Serial Range: -JAF0117840

1шт.

If a complete axle assembly is ordered for a machine with a 4.88 gear ratio, a 5.38 gear ratio ring and pinion gear set (part number 138798A1) for the rear axle must be ordered and installed to match the gear ratio of the new front axle.

1шт.

139021A1

AXLE

ASSEMBLY- front steerable, 5.38 gear ratio, P.I.N. JAF0117840 through JAF0164067, parts list figure 6-36 - 6-48, see figure 6-28 for axle mounting, includes: Refs. 1 - 17

1шт.

1

D143033

DOWEL

PIN - dowel, 12 x 40 mm

4шт.

2

139109A1

BOLT,Self Lkg, Hex, M12 x 40mm

- hex, self-locking

8шт.

3

138781A1

BRACKET

- mounting, kingpin, left-hand

1шт.

3a

138782A1

BRACKET

- mounting, kingpin, right-hand, not shown

1шт.

4

138783A1

AXLE PIN

KINGPIN - swivel housing, upper

2шт.

5

138785A1

BUSHING

- swivel housing

2шт.

6

138787A1

OIL SEAL

- oil, swivel housing

2шт.

7

122270A1

BELLEVILLE WASHER,36mm ID x 71mm OD x 2mm Th

- Belleville, upper

2шт.

8

136990A1

WASHER

WASHER - spacer, front axle

2шт.

9

100522A1

BUSHING

- axle housing, upper

2шт.

10

1966042C1

BALL BEARING

BEARING - axle housing, lower

2шт.

11

122268A1

BELLEVILLE WASHER

- Belleville, lower

2шт.

12

K395032

BOLT

- steering stop, special

2шт.

13

K965369

JAM NUT

- hex, special, 12 mm

2шт.

14

100533A1

BOLT,Self-Lock, M12 x 30mm

- hex, special, 12 - 1.75 x 30 mm

8шт.

15

138789A1

AXLE PIN

KINGPIN - swivel housing, lower

2шт.

16

138791A1

HOUSING

- swivel, prior to Carraro axle P.I.N. 263

2шт.

16a

183850A1

HOUSING

- swivel, Carraro axle P.I.N. 263 and after

2шт.

17

138792A1

RING

- wear, swivel housing

2шт.
