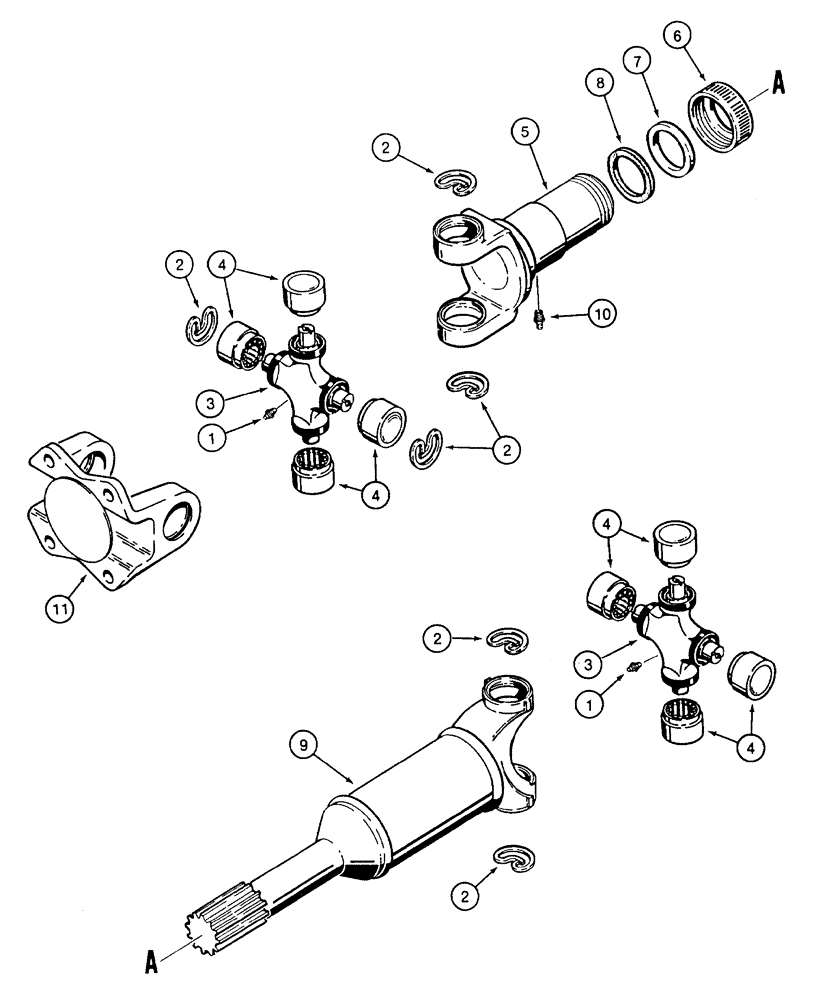

Запчасти Case 460 (6-34) - FRONT DRIVE SHAFTS (06) - POWER TRAIN

H672125

SHAFT

ASSEMBLY - drive, transmission to 115816A1 and 139021A1 axles, not available as an assembly, order components, includes: Refs. 1 - 11A

1шт.

D70629

U-JOINT SPIDER

KIT - universal joint, Dana, includes: Refs. 1 - 4

2шт.

247895A1

JOINT

KIT - universal joint, Neapco, includes: Refs. 1 - 4

2шт.

1

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4-28 taper x 11/16 inch

1шт.

2

11256

SNAP RING

- retaining, bearing

4шт.

3

NSS

NOT SOLD SEPARAT

JOINT - universal, drive shaft

1шт.

4

NSS

NOT SOLD SEPARAT

BEARING - universal joint

4шт.

5

H223867

YOKE

- slip, to axle, Dana

1шт.

5

230555A1

FORK

YOKE - slip to axle, Neapco

1шт.

6

H223875

CYLINDER END CAP

CAP - dust

1шт.

7

H223891

WASHER

- special, steel, Dana

1шт.

7

230556A1

SEAL

- dust, Neapco

1шт.

8

H223883

WASHER

- special, cork, Dana

1шт.

9

N13969

FORK

TUBE - drive shaft, Dana

1шт.

10

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4-28 taper x 11/16 inch

1шт.

11

H251777

FLANGE

YOKE - flanged, Serial Range: shaft-axle

1шт.

199029A1

DRIVE SHAFT

SHAFT ASSEMBLY - drive, transmission to 195520A1 axle, manufactured by Dana or Neapco, includes: Refs. 1 - 11

1шт.

H584813

BEARING

JOINT - universal, includes: Refs. 1 - 4

2шт.

1

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4-28 taper x 11/16 inch

1шт.

2

11256

SNAP RING

- retaining, bearing

4шт.

3

NSS

NOT SOLD SEPARAT

JOINT - universal, drive shaft

1шт.

4

NSS

NOT SOLD SEPARAT

BEARING - universal joint

4шт.

5

H223867

YOKE

- slip, to axle, Dana

1шт.

5

230555A1

FORK

YOKE - slip to axle, Neapco

1шт.

6

H223875

CYLINDER END CAP

CAP - dust

1шт.

7

H223891

WASHER

- special, steel, Dana

1шт.

7

230556A1

SEAL

- dust, Neapco

1шт.

8

H223883

WASHER

- special, cork, Dana

1шт.

9

230557A1

SHAFT

TUBE - drive shaft, Neapco

1шт.

10

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4-28 taper x 11/16 inch

1шт.

11

D70624

YOKE

- flanged, shaft to axle, not as shown

1шт.
